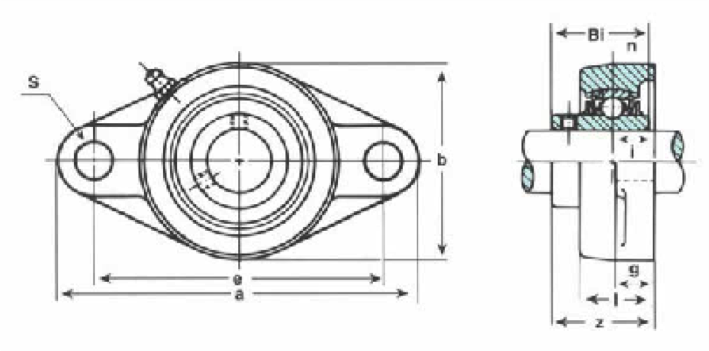

| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | e | i | g | I | s | b | z | Bi | n | kg | lbs. | |||||
| UCFT201-8 | 1/2 | 4-13/32 | 3-17/32 | 3/4 | 7/16 | 1-5/32 | 13-32 | 2-3/8 | 1-25-32 | 1.2205 | 0.5000 | 5/16 | UC201-8 | FT204 | 0.58 | 1.28 |
| UCFT202-10 | 5/8 | UC202-10 | ||||||||||||||
| UCFT204-12 | 3/4 | UC204-12 | ||||||||||||||
| UCFT201 | 12mm | UC201 | ||||||||||||||
| UCFT202 | 15mm | UC202 | ||||||||||||||
| UCFT203 | 17mm | UC203 | ||||||||||||||
| UCFT204 | 20mm | UC204 | ||||||||||||||
| UCFT205-14 | 7/8 | 4-7/8 | 3-57/64 | 25/32 | 17/32 | 1-7/32 | 1/2 | 2-3/4 | 1-27-32 | 1.3386 | 0.5630 | 3/8 | UC205-14 | FT205 | 0.53 | 1.83 |
| UCFT205-15 | 15/16 | UC205-15 | ||||||||||||||
| UCFT205-16 | 1 | UC205-16 | ||||||||||||||
| UCFT205 | 25mm | UC205 | ||||||||||||||
| UCFT206-17 | 1-1/16 | 5-9/16 | 4-19/32 | 53/64 | 17/32 | 1-11/32 | 1/2 | 3/1/4 | 2 | 1.5000 | 0.6260 | 3/8 | UC206-17 | FT206 | 1.05 | 2.32 |
| UCFT206-18 | 1-1/8 | UC206-18 | ||||||||||||||
| UCFT206-19 | 1-3/16 | UC206-19 | ||||||||||||||
| UCFT206-20 | 1-1/4 | UC206-20 | ||||||||||||||
| UCFT206 | 30mm | UC206 | ||||||||||||||
| UCFT207-20 | 1-1/4 | 6-1/8 | 5-1/8 | 27/32 | 9/16 | 1-7/16 | 35/64 | 3-3/4 | 2-1/8 | 1.6890 | 0.6890 | 7/16 | UC207-20 | FT207 | 1.57 | 3.46 |
| UCFT207-21 | 1-5/16 | UC207-21 | ||||||||||||||
| UCFT207-22 | 1-3/8 | UC207-22 | ||||||||||||||
| UCFT207-23 | 1-7/16 | UC207-23 | ||||||||||||||
| UCFT207 | 35mm | UC207 | ||||||||||||||
| UCFT208-24 | 1-1/2 | 6-3/4 | 5-21/32 | 15/16 | 9/16 | 1-17/32 | 35/64 | 4-1/8 | 2-5/16 | 1.9370 | 0.7480 | 7/16 | UC208-24 | FT208 | 1.97 | 4.34 |
| UCFT208-25 | 1-9/16 | UC208-25 | ||||||||||||||
| UCFT208 | 40mm | UC208 | ||||||||||||||
| UCFT209-26 | 1-5/8 | 7-1/16 | 5-27/32 | 15/16 | 9/16 | 1-9/16 | 5/8 | 4-3/8 | 2-5/16 | 1.9370 | 0.7480 | 1/2 | UC209-26 | FT209 | 2.32 | 5.12 |
| UCFT209-27 | 1-11/16 | UC209-27 | ||||||||||||||
| UCFT209-28 | 1-3/4 | UC209-28 | ||||||||||||||
| UCFT209 | 45mm | UC209 | ||||||||||||||
| UCFT210-30 | 1-7/8 | 7-7/16 | 6-3/16 | 1-1/8 | 9/16 | 1-27/32 | 5/8 | 4-9/16 | 2-5/8 | 2.0315 | 0.7480 | 1/2 | UC210-30 | FT210 | 2.70 | 5.95 |
| UCFT210-31 | 1-15/16 | UC210-31 | ||||||||||||||
| UCFT210 | 50mm | UC210 | ||||||||||||||
| UCFT211-32 | 2 | 8-1/2 | 7-1/4 | 1-17/64 | 13/16 | 1-31/32 | 45/64 | 5-1/4 | 2-31/32 | 2.1890 | 0.8740 | 9/16 | UC211-32 | FT211 | 4.06 | 8.95 |
| UCFT211-34 | 2-1/8 | UC211-34 | ||||||||||||||
| UCFT211-35 | 2-3/16 | UC211-35 | ||||||||||||||
| UCFT211 | 55mm | UC211 | ||||||||||||||
