| SINGLE STRAND | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

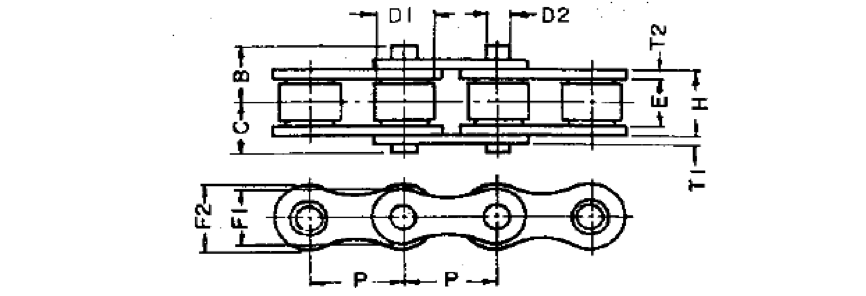

| Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T1 | T2 | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| 408 | 1/2"x3/32" | 12.7x2.40 | 4.55 | 4.0 | 4.0 | 8.30 | 9.80 | 7.75 | 3.62 | 1.00 | 1.00 | 0.28 | 1000 |
| 410 | 1/2"x1/8" | 12.7x3.45 | 5.59 | 5.8 | 4.6 | 8.30 | 9.80 | 7.75 | 3.62 | 1.00 | 1.00 | 0.30 | 1000 |
| 415 | 1/2"x3/16" | 12.7x4.88 | 6.97 | 6.5 | 5.3 | 8.30 | 9.80 | 7.75 | 3.62 | 1.00 | 1.00 | 0.33 | 1000 |
| 510 | 5/8"x1/8" | 15.875x3.45 | 5.59 | 5.8 | 4.6 | 8.30 | 9.80 | 7.75 | 3.62 | 1.00 | 1.00 | 0.23 | 1000 |
| 515 | 5/8"x3/16" | 15.875x4.88 | 6.97 | 6.5 | 5.3 | 8.30 | 9.80 | 7.75 | 3.62 | 1.00 | 1.00 | 0.29 | 1000 |
| Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T1 | T2 | Weight kg/m | Ave. Ulti. Strength kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | ||||||||||||
| 25 | 1/4"x1/8" | 6.35x3.18 | 4.80 | 4.8 | 3.8 | 5.00 | 5.80 | 3.30 | 2.30 | 0.75 | 0.75 | 0.14 | 420 |
| 25H | 1/4"x1/8" | 6.35x3.18 | 5.30 | 5.1 | 4.5 | 5.00 | 5.80 | 3.30 | 2.30 | 1.00 | 1.00 | 0.16 | 530 |
| 35 | 3/8"x3/16" | 9.525x4.80 | 7.46 | 7.0 | 5.8 | 7.40 | 8.80 | 5.08 | 3.58 | 1.25 | 1.25 | 0.33 | 1050 |
| 41 | 1/2"x1/4" | 12.7x6.40 | 9.06 | 7.8 | 6.6 | 8.30 | 9.80 | 7.77 | 3.58 | 1.25 | 1.25 | 0.41 | 1250 |
| 40 | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 7.92 | 3.96 | 1.50 | 1.50 | 0.63 | 1800 |
| 50 | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.5 | 10.0 | 12.85 | 14.70 | 10.16 | 5.08 | 1.96 | 1.96 | 1.01 | 3000 |
| 50H | 5/8"x3/8" | 15.875x9.53 | 14.65 | 11.9 | 10.9 | 12.85 | 14.70 | 10.16 | 5.08 | 2.40 | 2.40 | 1.11 | 3600 |
| 60 | 3/4"x1/2" | 19.05x12.70 | 17.75 | 13.9 | 12.5 | 14.93 | 17.28 | 11.91 | 5.94 | 2.40 | 2.40 | 1.44 | 4200 |
| 60 CP | 3/4"x1/2" | 19.05x12.70 | 17.75 | 15.2 | 12.5 | 14.93 | 17.28 | 11.91 | 5.94 | 2.40 | 2.40 | 1.44 | 4200 |
| 60H | 3/4"x1/2" | 19.05x12.70 | 19.43 | 15.6 | 14.0 | 14.93 | 17.28 | 11.91 | 5.94 | 3.14 | 3.14 | 1.75 | 5300 |
| 60H CP | 3/4"x1/2" | 19.05x12.70 | 19.43 | 16.4 | 14.0 | 14.93 | 17.28 | 11.91 | 5.94 | 3.14 | 3.14 | 1.75 | 5300 |
| 80 | 1"x5/8" | 25.4x15.88 | 22.60 | 18.4 | 16.1 | 20.00 | 23.24 | 15.87 | 7.92 | 3.14 | 3.14 | 2.40 | 7400 |
| 80 CP | 1"x5/8" | 25.4x15.88 | 22.60 | 19.8 | 16.1 | 20.00 | 23.24 | 15.87 | 7.92 | 3.14 | 3.14 | 2.40 | 7400 |
| 80H | 1"x5/8" | 25.4x15.88 | 24.28 | 20.0 | 17.7 | 20.00 | 23.24 | 15.87 | 7.92 | 3.96 | 3.96 | 3.27 | 8900 |
| 80H CP | 1"x5/8" | 25.4x15.88 | 24.28 | 21.5 | 17.7 | 20.00 | 23.24 | 15.87 | 7.92 | 3.96 | 3.96 | 3.27 | 8900 |
| 100 | 1-1/4"x3/4" | 31.75x19.05 | 27.45 | 22.9 | 19.7 | 26.08 | 30.24 | 19.05 | 9.52 | 3.96 | 3.96 | 3.94 | 11500 |
| 100 CP | 1-1/4"x3/4" | 31.75x19.05 | 27.45 | 22.9 | 19.7 | 26.08 | 30.24 | 19.05 | 9.52 | 3.96 | 3.96 | 3.94 | 11500 |
| 100H | 1-1/4"x3/4" | 31.75x19.05 | 29.10 | 24.6 | 21.1 | 26.08 | 30.24 | 19.05 | 9.52 | 4.75 | 4.75 | 4.47 | 14000 |
| 100H CP | 1-1/4"x3/4" | 31.75x19.05 | 29.10 | 24.6 | 21.1 | 26.08 | 30.24 | 19.05 | 9.52 | 4.75 | 4.75 | 4.47 | 14000 |
| 120 | 1-1/2"x1" | 38.1x25.40 | 35.45 | 29.4 | 24.5 | 29.70 | 35.85 | 22.22 | 11.10 | 4.75 | 4.75 | 5.85 | 14500 |
| 120 CP | 1-1/2"x1" | 38.1x25.40 | 35.45 | 29.4 | 24.5 | 29.70 | 35.85 | 22.22 | 11.10 | 4.75 | 4.75 | 5.85 | 14500 |
| 120H | 1-1/2"x1" | 38.1x25.40 | 37.18 | 31.7 | 26.7 | 29.70 | 35.85 | 22.22 | 11.10 | 5.55 | 5.55 | 6.25 | 16500 |
| 120H CP | 1-1/2"x1" | 38.1x25.40 | 37.18 | 31.7 | 26.7 | 29.70 | 35.85 | 22.22 | 11.10 | 5.55 | 5.55 | 6.25 | 16500 |
| 140 | 1-3/4"x1" | 44.45x25.40 | 37.18 | 32.5 | 26.7 | 36.20 | 42.00 | 25.40 | 12.70 | 5.55 | 5.55 | 7.26 | 20500 |
| 140 CP | 1-3/4"x1" | 44.45x25.40 | 37.18 | 32.5 | 26.7 | 36.20 | 42.00 | 25.40 | 12.70 | 5.55 | 5.55 | 7.26 | 20500 |
| 160 | 2"x1-1/4" | 50.8x31.75 | 45.21 | 37.2 | 31.9 | 48.00 | 40.80 | 28.57 | 14.27 | 6.35 | 6.35 | 9.30 | 25500 |
| 160 CP | 2"x1-1/4" | 50.8x31.75 | 45.21 | 37.2 | 31.9 | 48.00 | 40.80 | 28.57 | 14.27 | 6.35 | 6.35 | 9.30 | 25500 |
| Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T1 | T2 | Weight kg/m | Ave. Ulti. Strength kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | ||||||||||||
| 415B | 1/2"x3/16" | 12.7x4.88 | 7.65 | 7.1 | 6.2 | 9.70 | 11.45 | 7.75 | 4.09 | 1.25 | 1.25 | 0.46 | 1500 |
| 415H | 1/2"x3/16" | 12.7x4.88 | 8.05 | 7.7 | 6.4 | 9.70 | 11.45 | 7.75 | 4.18 | 1.50 | 1.50 | 0.50 | 1750 |
| 420 | 1/2"x1/4" | 12.7x6.40 | 9.55 | 8.4 | 7.2 | 10.40 | 11.75 | 7.75 | 3.96 | 1.50 | 1.50 | 0.58 | 1800 |
| 423 | 1/2"x1/4" | 12.7x6.40 | 9.55 | 8.4 | 7.2 | 10.40 | 11.75 | 8.51 | 4.45 | 1.50 | 1.50 | 0.61 | 1850 |
| 425 | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 7.92 | 3.96 | 1.50 | 1.50 | 0.63 | 1800 |
| 428 | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 8.51 | 4.45 | 1.50 | 1.50 | 0.68 | 1850 |
| 428H | 1/2"x5/16" | 12.7x7.95 | 12.15 | 10.1 | 9.1 | 10.40 | 11.75 | 8.51 | 4.45 | 1.96 | 1.96 | 0.79 | 2250 |
| 520 | 5/8"x1/4" | 15.875x6.40 | 10.45 | 9.5 | 8.3 | 12.85 | 14.70 | 10.16 | 5.08 | 1.96 | 1.96 | 0.90 | 3000 |
| 520H | 5/8"x1/4" | 15.875x6.40 | 11.27 | 10.3 | 9.2 | 12.85 | 14.70 | 10.16 | 5.33 | 2.40 | 2.40 | 1.03 | 3400 |
| 525 | 5/8"x5/16" | 15.875x7.95 | 12.15 | 10.6 | 9.2 | 12.85 | 14.70 | 10.16 | 5.08 | 1.96 | 1.96 | 0.97 | 3000 |
| 530 | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.5 | 10.0 | 12.85 | 14.70 | 10.16 | 5.08 | 1.96 | 1.96 | 1.01 | 3000 |
| 530H | 5/8"x3/8" | 15.875x9.53 | 14.65 | 11.9 | 10.9 | 12.85 | 14.70 | 10.16 | 5.33 | 2.40 | 2.40 | 1.15 | 3400 |
