| Dimensions-mm | |||||||
|---|---|---|---|---|---|---|---|
| Attachment | Chain No. | R | D3 | N | A3 | a3 | T |

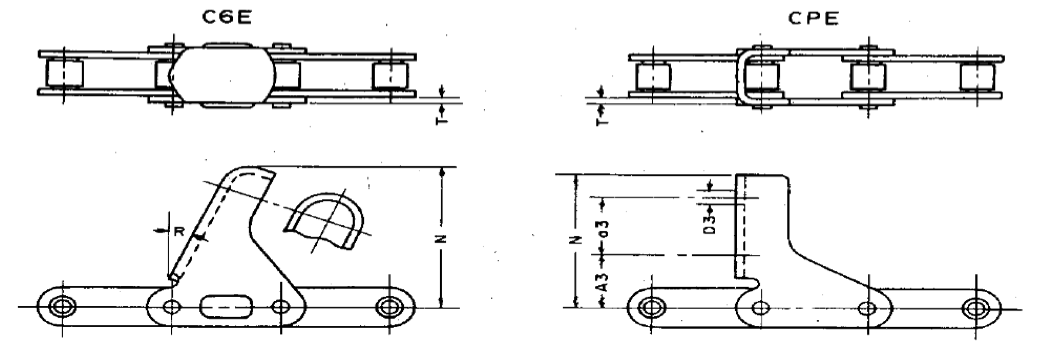

| C6E | C-2060H | 22-1/2ยก | 63.50 | 3.14 | |||
| CPE | C-2060H | 5.90 | 58.44 | 23.55 | 25.40 | 3.14 |
| Dimensions-mm | |||||||
|---|---|---|---|---|---|---|---|
| Attachment | Chain No. | A1 | A2 | F3 | D3 | G | T |

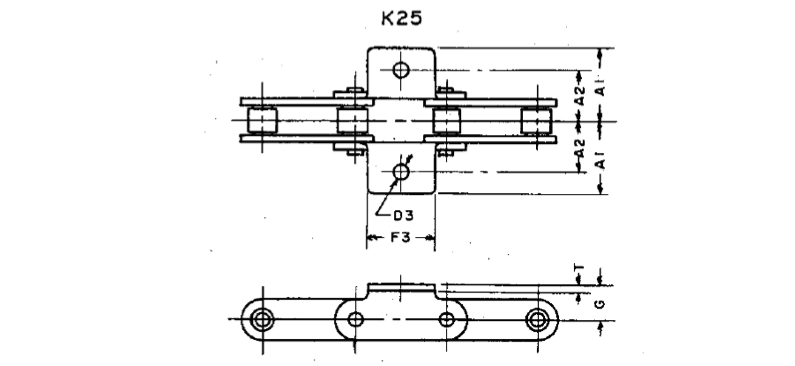

| K25 | C-2060H | 30.56 | 21.43 | 28.58 | 6.76 | 14.69 | 3.14 |
| Dimensions-mm | |||||
|---|---|---|---|---|---|
| Attachment | Type | Chain No. | R1 | R2 | L1 |

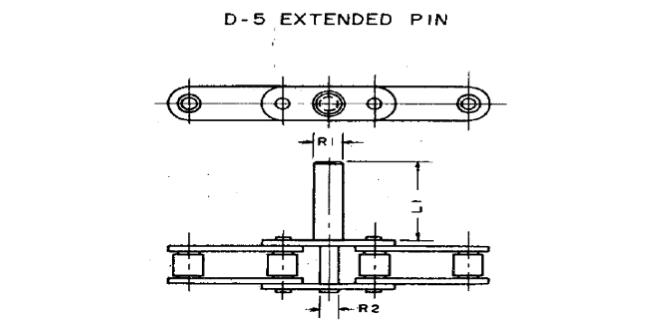

| D-5 | A | C-2060H | 12.70 | 8.08 | 41.28 |
| D-5 | B | C-2060H | 14.28 | 7.87 | 41.28 |
