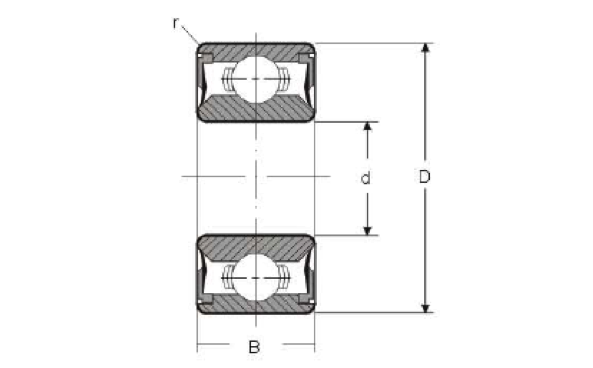

| Bearing No. | Dimensions(mm) | Limiting Speed rpm | Load Rating lbs | Weight lbs | Interchange Information | ||||
|---|---|---|---|---|---|---|---|---|---|
| d | D | B | r | Cr | Cor | ||||
| 63000-2RS | 10 | 26 | 12 | 0.5 | 17.500 | 792 | 407 | 0.062 | WE6000-2RS |
| 63001-2RS | 12 | 28 | 12 | 0.5 | 15.500 | 858 | 473 | 0.070 | WE6001-2RS |
| 63002-2RS | 15 | 32 | 13 | 0.5 | 13.500 | 968 | 572 | 0.092 | WE6002-2RS |
| 63003-2RS | 17 | 35 | 14 | 0.5 | 11.500 | 1.034 | 638 | 0.112 | WE6003-2RS |
| 63004-2RS | 20 | 42 | 16 | 1 | 10.000 | 1.606 | 1.012 | 0.194 | WE6004-2RS |
| 63005-2RS | 25 | 47 | 16 | 1 | 8.900 | 1.716 | 1.166 | 0.220 | WE6005-2RS |
| 63006-2RS | 30 | 55 | 19 | 1.5 | 7.500 | 2.288 | 1.628 | 0.350 | WE6006-2RS |
| 63007-2RS | 35 | 62 | 20 | 1.5 | 6.600 | 2.640 | 2.002 | 0.462 | WE6007-2RS |
| 63008-2RS | 40 | 68 | 21 | 1.5 | 6.000 | 2.816 | 2.222 | 0.570 | WE6008-2RS |
| 63009-2RS | 45 | 75 | 23 | 1.5 | 5.300 | 3.520 | 2.926 | 0.759 | WE6009-2RS |
| 63010-2RS | 50 | 80 | 23 | 1.5 | 5.000 | 3.718 | 3.146 | 0.814 | WE6010-2RS |
| 62200-2RS | 10 | 30 | 14 | 1 | 14.500 | 836 | 396 | 0.092 | WE6200-2RS |
| 62201-2RS | 12 | 32 | 14 | 1 | 14.000 | 1.100 | 616 | 0.101 | WE6201-2RS |
| 62202-2RS | 15 | 35 | 14 | 1 | 12.500 | 1.254 | 726 | 0.123 | WE6202-2RS |
| 62203-2RS | 17 | 40 | 16 | 1 | 11.000 | 1.562 | 902 | 0.187 | WE6203-2RS |
| 62204-2RS | 20 | 47 | 18 | 1.5 | 9.500 | 2.200 | 1.386 | 0.282 | WE6204-2RS |
| 62205-2RS | 25 | 52 | 18 | 1.5 | 8.300 | 2.376 | 1.540 | 0.321 | WE6205-2RS |
| 62206-2RS | 30 | 62 | 20 | 1.5 | 7.000 | 3.300 | 2.200 | 0.532 | WE6206-2RS |
| 62207-2RS | 35 | 72 | 23 | 2 | 6.000 | 4.356 | 2.860 | 0.957 | WE6207-2RS |
| 62208-2RS | 40 | 80 | 23 | 2 | 5.100 | 4.620 | 3.190 | 0.990 | WE6208-2RS |
| 62209-2RS | 45 | 85 | 23 | 2 | 4.700 | 5.060 | 3.520 | 1.067 | WE6209-2RS |
| 62210-2RS | 50 | 90 | 23 | 2 | 4.300 | 5.500 | 4.070 | 1.177 | WE6210-2RS |
| 62300-2RS | 10 | 35 | 17 | 1 | 12.500 | 1.364 | 770 | 0.143 | WE6300-2RS |
| 62301-2RS | 12 | 37 | 17 | 1.5 | 11.500 | 1.650 | 946 | 0.163 | WE6301-2RS |
| 62302-2RS | 15 | 42 | 17 | 1.5 | 11.000 | 1.848 | 1.100 | 0.242 | WE6302-2RS |
| 62303-2RS | 17 | 47 | 19 | 1.5 | 9.500 | 2.200 | 1.276 | 0.328 | WE6303-2RS |
| 62304-2RS | 20 | 52 | 21 | 2 | 8.800 | 2.574 | 1.584 | 0.433 | WE6304-2RS |
| 62305-2RS | 25 | 62 | 24 | 2 | 7.300 | 3.300 | 2.200 | 0.704 | WE6304-2RS |
| 62306-2RS | 30 | 72 | 27 | 2 | 6.100 | 4.400 | 3.014 | 1.067 | WE6305-2RS |
| 62307-2RS | 35 | 80 | 31 | 2.5 | 5.400 | 5.280 | 3.630 | 1.474 | WE6306-2RS |
| 62308-2RS | 40 | 90 | 33 | 2.5 | 4.700 | 6.600 | 4.598 | 2.002 | WE6307-2RS |
| 62309-2RS | 45 | 100 | 36 | 2.5 | 4.300 | 9.360 | 6.160 | 2.618 | WE6308-2RS |
