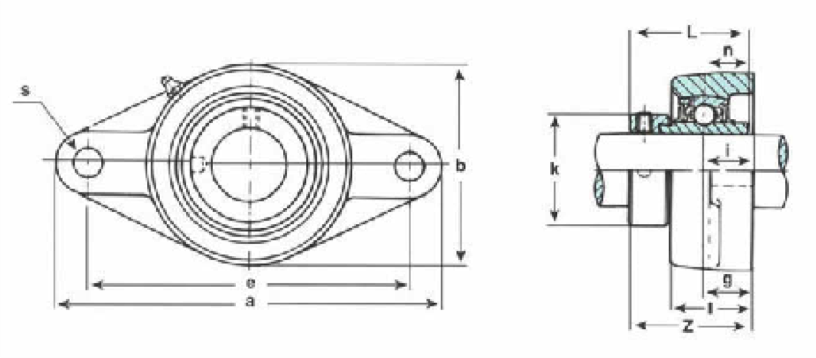

| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | e | i | g | I | s | b | z | L | n | K | kg | lbs. | |||||
| HCFTS201-8 | 1/2 | 4-13/32 | 3-17/32 | 3/4 | 7/16 | 1-5/32 | 13/32 | 2-3/8 | 1-25/32 | 1.7126 | 0.6693 | 1-1/8 | 5/16 | HC201-8 | FTS204 | 0.50 | 1.10 |
| HCFTS202-10 | 5/8 | 1-1/4 | HC202-10 | 0.45 | 1.00 | ||||||||||||
| HCFTS204-12 | 3/4 | 4-13/32 | 3-17/32 | 3/4 | 7/16 | 1-5/32 | 13/32 | 2-3/8 | 1-25/32 | 1.7126 | 0.6693 | 1-1/4 | 5/16 | HC204-12 | FTS204 | 0.62 | 1.37 |
| HCFTS204 | 20mm | HC204 | |||||||||||||||
| HCFTS205-14 | 7/8 | 4-7/8 | 3-57/64 | 25/32 | 17/32 | 1-7/32 | 1/2 | 2-3/4 | 1-27/32 | 1.7441 | 0.6850 | 1-1/2 | 3/8 | HC205-14 | FTS205 | 0.85 | 1.87 |
| HCFTS205-15 | 15/16 | HC205-15 | |||||||||||||||
| HCFTS205-16 | 1 | HC205-16 | |||||||||||||||
| HCFTS205 | 25mm | HC205 | |||||||||||||||
| HCFTS206-17 | 1-1/16 | 5-9/16 | 4-19/32 | 53/64 | 17/32 | 1-11/32 | 1/2 | 3-1/4 | 2 | 1.9016 | 0.7165 | 1-3/4 | 3/8 | HC206-17 | FTS206 | 1.10 | 2.43 |
| HCFTS206-18 | 1-1/8 | HC206-18 | |||||||||||||||
| HCFTS206-19 | 1-3/16 | HC206-19 | |||||||||||||||
| HCFTS206-20 | 1-1/4 | HC206-20 | |||||||||||||||
| HCFTS206 | 30mm | HC206 | |||||||||||||||
| HCFTS207-20 | 1-1/4 | 6-1/8 | 5-1/8 | 27/32 | 9/16 | 1-7/16 | 35/64 | 3-3/4 | 2-1/8 | 2.0118 | 0.7402 | 2-3/16 | 7/16 | HC207-20 | FTS207 | 1.65 | 3.64 |
| HCFTS207-21 | 1-5/16 | HC207-21 | |||||||||||||||
| HCFTS207-22 | 1-3/8 | HC207-22 | |||||||||||||||
| HCFTS207-23 | 1-7/16 | HC207-23 | |||||||||||||||
| HCFTS207 | 35mm | HC207 | |||||||||||||||
| HCFTS208-24 | 1-1/2 | 6-3/4 | 5-21/32 | 15/16 | 9/16 | 1-17/32 | 35/64 | 4-1/8 | 2-5/16 | 2.2165 | 0.8425 | 2-3/8 | 7/16 | HC208-24 | FTS208 | 2.10 | 4.63 |
| HCFTS208-25 | 1-9/16 | HC208-25 | |||||||||||||||
| HCFTS208 | 40mm | HC208 | |||||||||||||||
| HCFTS209-26 | 1-5/8 | 7-1/16 | 5-27/32 | 15/16 | 9/16 | 1-9/16 | 5/8 | 4-3/8 | 2-5/16 | 2.2165 | 0.8425 | 2-1/2 | 1/2 | HC209-26 | FTS209 | 2.45 | 5.40 |
| HCFTS209-27 | 1-11/16 | HC209-27 | |||||||||||||||
| HCFTS209-28 | 1-3/4 | HC209-28 | |||||||||||||||
| HCFTS209 | 45mm | HC209 | |||||||||||||||
| HCFTS210-30 | 1-7/8 | 7-7/16 | 6-3/16 | 1-1/8 | 9/16 | 1-27/32 | 5/8 | 4-9/16 | 2-5/8 | 2.4685 | 0.9685 | 2-3/4 | 1/2 | HC210-30 | FTS210 | 2.90 | 6.39 |
| HCFTS210-31 | 1-15/16 | HC210-31 | |||||||||||||||
| HCFTS210 | 50mm | HC210 | |||||||||||||||
| HCFTS211-32 | 2 | 8-1/2 | 7-1/4 | 1-17/64 | 13/16 | 1-31/32 | 45/64 | 5-1/4 | 2-31/32 | 2.8110 | 1.0906 | 3 | 9/16 | HC211-32 | FTS211 | 4.35 | 9.59 |
| HCFTS211-34 | 2-1/8 | HC211-34 | |||||||||||||||
| HCFTS211-35 | 2-3/16 | HC211-35 | |||||||||||||||
| HCFTS211 | 55mm | HC211 | |||||||||||||||
| HCFTS212-36 | 2-1/4 | 9-5/16 | 8 | 1-3/8 | 55/64 | 2-7/64 | 21/32 | 5-7/16 | 3-3/16 | 3.062 | 1.2190 | 3.312 | 9/16 | HC212-36 | FTS212 | 3.99 | 8.13 |
| HCFTS212-38 | 2-3/8 | HC212-38 | |||||||||||||||
| HCFTS212-39 | 2-7/16 | HC212-39 | |||||||||||||||
| HCFTS212 | 60mm | HC212 | |||||||||||||||
