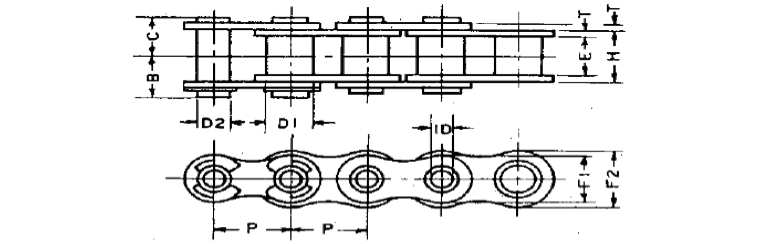

| Single-Pitch Roller Chains | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | ID | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| 40HP | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 7.92 | 5.69 | 4.00 | 1.50 | 0.57 | 1350 |
| 50HP | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.5 | 10.0 | 12.85 | 14.70 | 10.16 | 7.27 | 5.12 | 1.96 | 0.94 | 2170 |
| 60HP | 3/4"x1/2" | 19.05x12.70 | 17.75 | 13.9 | 12.5 | 14.80 | 17.28 | 11.91 | 8.40 | 5.98 | 2.40 | 1.38 | 2800 |
| 80HP | 1"x5/8" | 25.4x15.88 | 22.60 | 18.4 | 16.1 | 20.00 | 23.24 | 15.87 | 11.40 | 7.96 | 3.14 | 2.23 | 5200 |

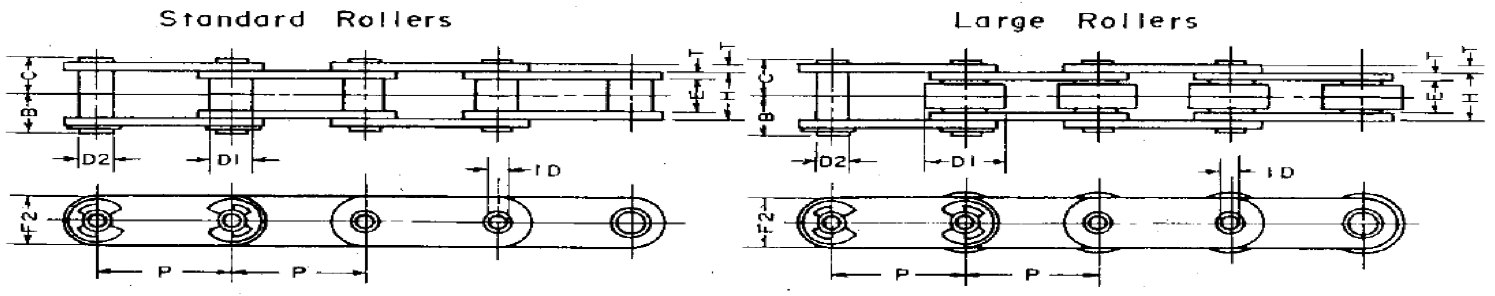

| Double-Pitch Roller Chains Conveyor Series | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F2 | D1 | D2 | ID | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| C-2040HP | 1"x5/16" | 25.4x7.95 | 11.17 | 9.1 | 8.1 | 11.75 | 7.92 | 5.69 | 4.00 | 1.50 | 0.46 | 1350 |
| C-2042HP | 1"x5/16" | 25.4x7.95 | 11.17 | 9.1 | 8.1 | 11.75 | 15.87 | 5.69 | 4.00 | 1.50 | 0.80 | 1350 |
| C-2050HP | 1-1/4"x3/8" | 31.75x9.53 | 13.84 | 11.5 | 10.0 | 15.05 | 10.16 | 7.27 | 5.12 | 1.96 | 0.72 | 2170 |
| C-2052HP | 1-1/4"x3/8" | 31.75x9.53 | 13.84 | 11.5 | 10.0 | 15.05 | 19.05 | 7.27 | 5.12 | 1.96 | 1.18 | 2170 |
| C-2060HP | 1-1/2"x1/2" | 38.1x12.70 | 17.75 | 13.9 | 12.5 | 17.53 | 11.91 | 8.40 | 5.98 | 2.40 | 1.08 | 2800 |
| C-2062HP | 1-1/2"x1/2" | 38.1x12.70 | 17.75 | 13.9 | 12.5 | 17.53 | 22.22 | 8.40 | 5.98 | 2.40 | 1.78 | 2800 |
| C-2080HP | 2"x5/8" | 50.8x15.88 | 22.60 | 18.4 | 16.1 | 23.24 | 15.87 | 11.40 | 7.96 | 3.14 | 2.56 | 5200 |
| C-2082HP | 2"x5/8" | 50.8x15.88 | 22.60 | 18.4 | 16.1 | 23.24 | 28.57 | 11.40 | 7.96 | 3.14 | 3.54 | 5200 |
