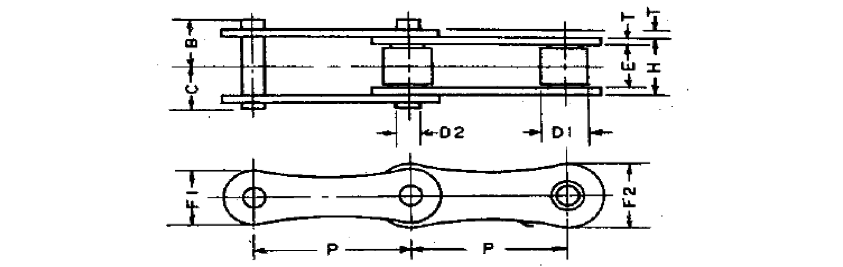

| Power Transmission Series | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| A-2040 | 1"x5/16" | 25.4x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 7.92 | 3.96 | 1.50 | 0.41 | 1800 |
| A-2050 | 1-1/4"x3/8" | 31.75x9.53 | 13.84 | 11.5 | 10.0 | 13.30 | 15.05 | 10.16 | 5.08 | 1.96 | 0.68 | 3000 |
| A-2060 | 1-1/2"x1/2" | 38.1x12.70 | 17.75 | 13.9 | 12.5 | 15.40 | 17.53 | 11.91 | 5.94 | 2.40 | 0.91 | 4200 |

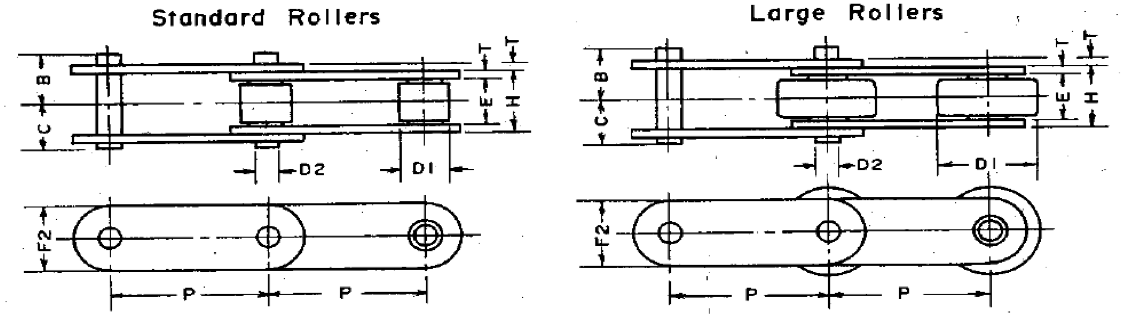

| Conveyor Series | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F2 | D1 | D2 | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||
| C-2040 | 1"x5/16" | 25.4x7.95 | 11.17 | 9.1 | 8.1 | 11.75 | 7.92 | 3.96 | 1.50 | 0.50 | 1800 |
| C-2042 | 1"x5/16" | 25.4x7.95 | 11.17 | 9.1 | 8.1 | 11.75 | 15.87 | 3.96 | 1.50 | 0.84 | 1800 |
| C-2050 | 1-1/4"x3/8" | 31.75x9.53 | 13.84 | 11.5 | 10.0 | 15.05 | 10.16 | 5.08 | 1.96 | 0.78 | 3000 |
| C-2052 | 1-1/4"x3/8" | 31.75x9.53 | 13.84 | 11.5 | 10.0 | 15.05 | 19.05 | 5.08 | 1.96 | 1.25 | 3000 |
| C-2060 | 1-1/2"x1/2" | 38.1x12.70 | 17.75 | 13.9 | 12.5 | 17.53 | 11.91 | 5.94 | 2.40 | 1.12 | 4300 |
| C-2060H | 1-1/2"x1/2" | 38.1x12.70 | 19.43 | 15.6 | 14.0 | 17.53 | 11.91 | 5.94 | 3.14 | 1.44 | 5400 |
| C-2060H CP | 1-1/2"x1/2" | 38.1x12.70 | 19.43 | 16.4 | 14.0 | 17.53 | 11.91 | 5.94 | 3.14 | 1.44 | 5400 |
| C-2062H | 1-1/2"x1/2" | 38.1x12.70 | 19.43 | 15.6 | 14.0 | 17.53 | 22.22 | 5.94 | 3.14 | 2.07 | 5400 |
| C-2080H | 2"x5/8" | 50.8x15.88 | 24.28 | 21.5 | 17.7 | 23.24 | 15.87 | 7.92 | 3.96 | 2.54 | 9500 |
| C-2080H CP | 2"x5/8" | 50.8x15.88 | 24.28 | 21.5 | 17.7 | 23.24 | 15.87 | 7.92 | 3.96 | 2.54 | 9500 |
| C-2082H | 2"x5/8" | 50.8x15.88 | 24.28 | 21.5 | 17.7 | 23.24 | 28.57 | 7.92 | 3.96 | 3.58 | 9500 |
| C-2082H CP | 2"x5/8" | 50.8x15.88 | 24.28 | 21.5 | 17.7 | 23.24 | 28.57 | 7.92 | 3.96 | 3.58 | 9500 |
| C-2100H | 2-1/2"x3/4" | 63.5x19.05 | 29.10 | 24.9 | 21.1 | 30.24 | 19.05 | 9.52 | 4.75 | 3.56 | 14000 |
| C-2100H CP | 2-1/2"x3/4" | 63.5x19.05 | 29.10 | 24.9 | 21.1 | 30.24 | 19.05 | 9.52 | 4.75 | 3.56 | 14000 |
| C-2102H | 2-1/2"x3/4" | 63.5x19.05 | 29.10 | 24.9 | 21.1 | 30.24 | 39.67 | 9.52 | 4.75 | 5.38 | 14000 |
| C-2102H CP | 2-1/2"x3/4" | 63.5x19.05 | 29.10 | 24.9 | 21.1 | 30.24 | 39.67 | 9.52 | 4.75 | 5.38 | 14000 |
| C-2120H | 3"x1" | 76.2x25.40 | 37.18 | 30.1 | 26.7 | 35.93 | 22.22 | 11.10 | 5.55 | 4.46 | 16500 |
| C-2120H CP | 3"x1" | 76.2x25.40 | 37.18 | 30.1 | 26.7 | 35.93 | 22.22 | 11.10 | 5.55 | 4.46 | 16500 |
| C-2122H | 3"x1" | 76.2x25.40 | 37.18 | 30.1 | 26.7 | 35.93 | 44.45 | 11.10 | 5.55 | 7.01 | 16500 |
| C-2122H CP | 3"x1" | 76.2x25.40 | 37.18 | 30.1 | 26.7 | 35.93 | 44.45 | 11.10 | 5.55 | 7.01 | 16500 |
