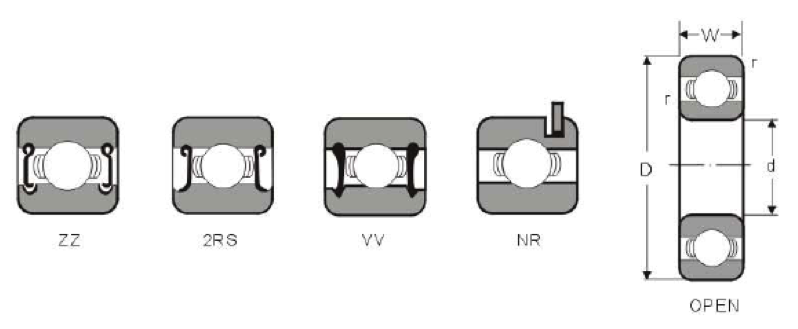

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | ||
| 6200 | 10 | .3937 | 30 | 1.1811 | 9 | .3543 | 1.0 | .039 | 1150 | 540 | .01 |
| 6201 | 12 | .4724 | 32 | 1.2598 | 10 | .3937 | 1.0 | .039 | 1370 | 615 | .082 |
| 6201-8 | 12.7 | .5000 | 32 | 1.2598 | 10 | .3937 | 1.0 | .039 | 1370 | 615 | .082 |
| 6201-13mm | 13 | .5118 | 32 | 1.2598 | 10 | .3937 | 1.0 | .039 | 1370 | 615 | .082 |
| 6202 | 15 | .5906 | 32 | 1.3780 | 11 | .4331 | 1.0 | .039 | 1740 | 805 | .099 |
| 6202-8 | 12.7 | .5000 | 35 | 1.3780 | 11 | .4331 | 1.0 | .039 | 1740 | 805 | .110 |
| 6202-10 | 15.875 | .6250 | 35 | 1.3780 | 11 | .4331 | 1.0 | .039 | 1740 | 805 | .090 |
| 6202-16mm | 16 | .6299 | 35 | 1.3780 | 11 | .4331 | 1.0 | .039 | 1740 | 805 | .090 |
| 6203 | 17 | .6693 | 35 | 1.5748 | 12 | .4724 | 1.0 | .039 | 2160 | 1030 | .143 |
| 6203-8 | 12.7 | .500 | 40 | 1.5748 | 12 | .4724 | 1.0 | .039 | 2160 | 1030 | .154 |
| 6203-15mm | 15 | .5906 | 40 | 1.5748 | 12 | .4724 | 1.0 | .039 | 2160 | 1030 | .148 |
| 6203-10 | 15.875 | .6250 | 40 | 1.5748 | 12 | .4724 | 1.0 | .039 | 2160 | 1030 | .150 |
| 6203-16mm | 16 | .6299 | 40 | 1.5748 | 12 | .4724 | 1.0 | .039 | 2160 | 1030 | .150 |
| 6203-12 | 19.05 | .7500 | 40 | 1.5748 | 12 | .4724 | 1.0 | .039 | 2160 | 1030 | .140 |
| 6204 | 20 | .7874 | 40 | 1.8504 | 14 | .5512 | 1.5 | .059 | 2890 | 1500 | .234 |
| 6204-12 | 19.05 | .7500 | 47 | 1.8504 | 14 | .5512 | 1.5 | .059 | 2890 | 1500 | .236 |
| 62/22 | 22 | .8661 | 47 | 1.9685 | 14 | .5512 | 1.5 | .059 | 2900 | 1530 | .258 |
| 6204-14 | 22.225 | .8750 | 50 | 1.8504 | 14 | .5512 | 1.5 | .059 | 2890 | 1500 | .230 |
| 6205 | 25 | .9843 | 47 | 2.0472 | 15 | .5906 | 1.5 | .059 | 3150 | 1770 | .282 |
| 6205-16 | 25.4 | 1.0000 | 52 | 2.0472 | 15 | .5906 | 1.5 | .059 | 3150 | 1770 | .280 |
| 62/28 | 28 | 1.1024 | 52 | 2.2835 | 16 | .6299 | 1.5 | .059 | 4000 | 2190 | .377 |
| 6206 | 30 | 1.1811 | 58 | 2.4409 | 16 | .6299 | 1.5 | .059 | 4400 | 2540 | .439 |
| 62/32 | 32 | 1.2598 | 62 | 2.5591 | 17 | .6693 | 1.5 | .059 | 4625 | 2600 | .498 |
| 6207 | 35 | 1.3780 | 65 | 2.8346 | 17 | .6693 | 2.0 | .079 | 5750 | 3450 | .635 |
| 6208 | 40 | 1.5748 | 72 | 3.1496 | 18 | .7087 | 2.0 | .079 | 6550 | 4000 | 807 |
| 6209 | 45 | 1.7717 | 80 | 3.3465 | 19 | .7480 | 2.0 | .079 | 7350 | 4600 | .897 |
| 6210 | 50 | 1.9685 | 85 | 3.5433 | 20 | .7874 | 2.0 | .079 | 7900 | 5200 | 1.02 |
| 6211 | 55 | 2.1654 | 90 | 3.937 | 21 | .8262 | 2.5 | .098 | 9750 | 6550 | 1.34 |
| 6212 | 60 | 2.3622 | 100 | 4.3307 | 22 | .8661 | 2.5 | .098 | 11800 | 8150 | 1.73 |
| 6213 | 65 | 2.5591 | 110 | 4.7244 | 23 | .9055 | 2.5 | .098 | 12900 | 9000 | 2.18 |
| 6214 | 70 | 2.7599 | 120 | 4.9213 | 24 | .9449 | 2.5 | .098 | 14000 | 9900 | 2.36 |
| 6215 | 75 | 2.9528 | 125 | 5.1181 | 25 | .9843 | 2.5 | .098 | 14900 | 11100 | 2.60 |
| 6216 | 80 | 3.1496 | 130 | 5.5118 | 26 | 1.0236 | 3.0 | .118 | 16300 | 11900 | 3.09 |
| 6217 | 85 | 3.3465 | 140 | 5.9055 | 28 | 1.1024 | 3.0 | .118 | 18700 | 14300 | 3.95 |
| 6218 | 90 | 3.5433 | 150 | 6.2992 | 30 | 1.1811 | 3.0 | .118 | 21600 | 16100 | 4.74 |
| 6219 | 95 | 3.7402 | 160 | 6.6929 | 32 | 1.2598 | 3.5 | .138 | 24500 | 18400 | 5.78 |
| 6220 | 100 | 3.937 | 170 | 7.0866 | 34 | 1.3386 | 3.5 | .138 | 27500 | 20900 | 6.92 |
| 6221 | 105 | 4.1339 | 180 | 7.4803 | 36 | 1.4173 | 3.5 | .138 | 29900 | 23500 | 8.16 |
| 6222 | 110 | 4.3307 | 190 | 7.874 | 38 | 1.4961 | 3.5 | .138 | 32500 | 26300 | 9.61 |
| 6224 | 120 | 4.7244 | 200 | 8.4646 | 40 | 1.5748 | 3.5 | .138 | 35000 | 29500 | 11.4 |
| 6226 | 130 | 5.1181 | 215 | 9.0551 | 40 | 1.5748 | 4.0 | .157 | 37500 | 33000 | 12.8 |
| 6228 | 140 | 5.5118 | 230 | 9.8425 | 42 | 1.6535 | 4.0 | .157 | 37500 | 33500 | 16.5 |
| 6230 | 150 | 5.9055 | 250 | 10.6299 | 45 | 1.7717 | 4.0 | .157 | 39500 | 37500 | 20.7 |
| 6232 | 160 | 6.2992 | 270 | 11.4173 | 48 | 1.8898 | 4.0 | .157 | 41500 | 42000 | 31.5 |
| 6234 | 170 | 6.6929 | 310 | 12.2047 | 52 | 2.0472 | 5.0 | .197 | 47500 | 50000 | 38.6 |
| 6236 | 180 | 7.0866 | 320 | 12.5984 | 52 | 2.0472 | 5.0 | .197 | 51000 | 54000 | 40.3 |
| 6238 | 190 | 7.4803 | 340 | 13.3858 | 55 | 2.1654 | 5.0 | .197 | 57500 | 63500 | 50.7 |
| 6240 | 200 | 7.874 | 360 | 14.1732 | 58 | 2.2835 | 5.0 | .197 | 60500 | 70000 | 62.2 |
