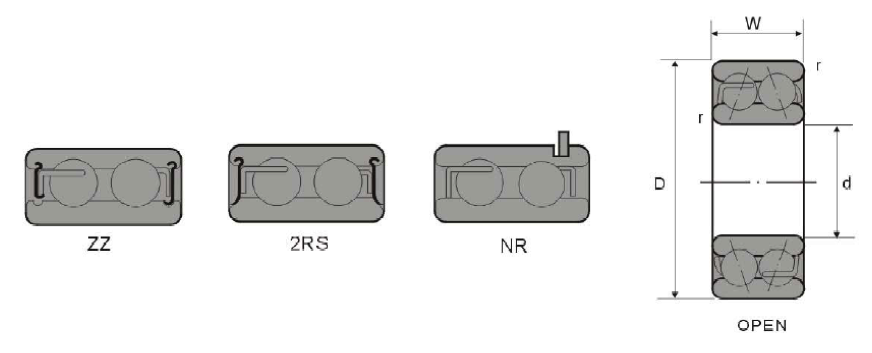

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | ||
| 5200 | 10 | .3937 | 30 | 1.1811 | 14.287 | 9/16 | 0.8 | .032 | 1560 | 855 | 0.13 |
| 5201 | 12 | .4724 | 32 | 1.2598 | 15.875 | 5/8 | 0.8 | .032 | 2050 | 1140 | 0.16 |
| W5201 | 12 | .4724 | 32 | 1.2598 | 17.463 | 11/16 | 0.8 | .032 | 2360 | 1300 | 0.17 |
| 5202 | 15 | .5906 | 35 | 1.3780 | 15.875 | 5/8 | 1.0 | .039 | 2260 | 1360 | 0.18 |
| W5202 | 15 | 5906 | 35 | 1.3780 | 19.050 | 3/4 | 1.0 | .039 | 2620 | 1580 | 0.19 |
| 5203 | 17 | 6693 | 40 | 1.5748 | 17.463 | 11/16 | 1.0 | .039 | 2870 | 1770 | 0.20 |
| W5203 | 17 | 6693 | 40 | 1.5748 | 20.638 | 13/16 | 1.0 | .039 | 2870 | 1770 | 0.20 |
| 5204 | 20 | 7874 | 47 | 1.8504 | 20.638 | 13/16 | 1.5 | .059 | 4300 | 2710 | 0.34 |
| W5204 | 20 | 7874 | 47 | 1.8504 | 23.813 | 15/16 | 1.5 | .059 | 4300 | 1770 | 0.36 |
| 5205 | 25 | 9843 | 52 | 2.0472 | 20.638 | 13/16 | 1.5 | .059 | 4650 | 3200 | 0.42 |
| W5205 | 25 | 9843 | 52 | 2.0472 | 23.813 | 15/16 | 1.5 | .059 | 4650 | 3200 | 0.45 |
| 5206 | 30 | 1.1811 | 62 | 2.4409 | 23.813 | 15/16 | 1.5 | .059 | 6450 | 4600 | 0.64 |
| W5206 | 30 | 1.1811 | 62 | 2.4409 | 26.988 | 1-1/16 | 1.5 | .059 | 6450 | 4600 | 0.74 |
| 5207 | 35 | 1.3780 | 72 | 2.8346 | 26.988 | 1-1/16 | 2.0 | .079 | 8500 | 6250 | 0.95 |
| W5207 | 35 | 1.3780 | 72 | 2.8346 | 30.163 | 1-3/16 | 2.0 | .079 | 8500 | 6250 | 1.21 |
| 5208 | 40 | 1.5748 | 80 | 3.1496 | 30.163 | 1-3/16 | 2.0 | .079 | 9600 | 7250 | 1.26 |
| 5209 | 45 | 1.7717 | 85 | 3.3465 | 30.163 | 1-3/16 | 2.0 | .079 | 10800 | 8300 | 1.37 |
| 5210 | 50 | 1.9685 | 90 | 3.5433 | 30.163 | 1-5/16 | 2.0 | .079 | 11500 | 9400 | 1.48 |
| 5211 | 55 | 2.1654 | 100 | 3.9370 | 33.338 | 1-7/16 | 2.5 | .098 | 14200 | 11900 | 2.17 |
| 5212 | 60 | 2.3622 | 110 | 4.3307 | 36.513 | 1-1/2 | 2.5 | .098 | 16100 | 13100 | 2.80 |
| 5213 | 65 | 2.5591 | 120 | 4.7244 | 38.100 | 1-9/16 | 2.5 | .098 | 18700 | 16300 | 3.46 |
| 5214 | 70 | 2.7559 | 125 | 4.9213 | 39.688 | 1-5/8 | 2.5 | .098 | 20400 | 17900 | 3.97 |
| 5215 | 75 | 2.9528 | 130 | 5.1181 | 41.275 | 1-3/4 | 2.5 | .098 | 20300 | 18100 | 4.20 |
| 5216 | 80 | 3.1496 | 140 | 5.5118 | 44.450 | 1-3/16 | 3.0 | .118 | 23800 | 21400 | 5.50 |
| 5217 | 85 | 3.3465 | 150 | 5.9055 | 49.213 | 1-15/16 | 3.0 | .118 | 25100 | 23900 | 6.75 |
| 5218 | 90 | 3.5433 | 160 | 6.2992 | 52.388 | 2-1/16 | 3.0 | .118 | 31500 | 29000 | 8.90 |
