| BEARING NO. | Shaft Dia. | Dimensions(in) | Set Screw | Load Rating | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | lb. | |||||||||||||

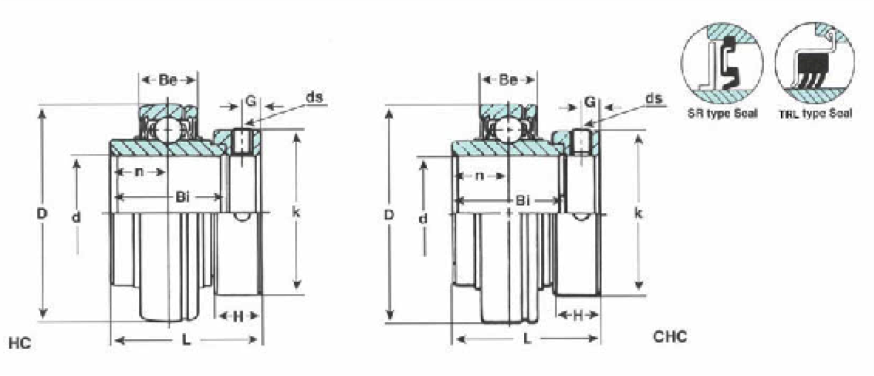

| d | D | L | Bi | Be | r | n | k | H | G | ds | Dynamic | Static | kg | lbs. | |
| HC201-8 | 1/2 | 1/4-28 | 2880 | 1484 | 0.23 | 0.50 | |||||||||
| HC202-10 | 5/8 | 1.8504 | 1.720 | 1.342 | 0.629 | 0.059 | 0.673 | 1.260 | 0.531 | 0.188 | 0.23 | 0.50 | |||
| HC204-12 | 3/4 | 47 | 43.2 | 34.1 | 16 | 1.5 | 17.1 | 32 | 13.5 | 4.8 | 0.2 | 0.44 | |||
| HC204 | 20(mm) | 0.19 | 0.42 | ||||||||||||
| HC205-14 | 7/8 | 1/4-28 | 3152 | 1765 | 0.26 | 0.57 | |||||||||
| HC205-15 | 15/16 | 2.0472 | 1.748 | 1.374 | 0.669 | 0.059 | 0.688 | 1.500 | 0.531 | 0.188 | 0.24 | 0.53 | |||
| HC205-16 | 1 | 52 | 44.4 | 34.9 | 17 | 1.5 | 17.5 | 38.1 | 13.5 | 4.8 | 0.21 | 0.46 | |||
| HC205 | 25(mm) | 0.22 | 0.49 | ||||||||||||
| HC206-17 | 1-1/16 | 0.42 | 0.93 | ||||||||||||
| HC206-18 | 1-1/8 | 0.40 | 0.88 | ||||||||||||
| HC206-19 | 1-3/16 | 2.4409 | 1.905 | 1.437 | 0.748 | 0.059 | 0.720 | 1.748 | 0.625 | 0.234 | 5/16-24 | 4375 | 2542 | 0.37 | 0.82 |
| HC206-20 | 1-1/4 | 62 | 48.4 | 36.5 | 19 | 1.5 | 18.3 | 44.4 | 15.9 | 6 | 0.35 | 0.77 | |||
| HC206 | 30(mm) | 0.37 | 0.82 | ||||||||||||
| HC207-20 | 1-1/4 | 0.64 | 1.41 | ||||||||||||
| HC207-21 | 1-5/16 | 2.8346 | 2.016 | 1.484 | 0.787 | 0.079 | 0.740 | 2.188 | 0.688 | 0.266 | 0.61 | 1.35 | |||
| HC207-22 | 1-3/8 | 72 | 51.2 | 37.7 | 20 | 2 | 18.8 | 55.6 | 17.5 | 6.8 | 5/16-24 | 5777 | 3459 | 0.58 | 1.28 |
| HC207-23 | 1-7/16 | 0.54 | 1.19 | ||||||||||||
| HC207 | 35(mm) | 0.58 | 1.28 | ||||||||||||
| HC208-24 | 1-1/2 | 3.1496 | 2.220 | 1.689 | 0.862 | 0.079 | 0.844 | 2.377 | 0.719 | 0.266 | 0.81 | 1.79 | |||
| HC208-25 | 1-9/16 | 80 | 56.4 | 42.9 | 21 | 2 | 21.4 | 60.3 | 18.3 | 6.8 | 5/16-24 | 5787 | 4042 | 0.77 | 1.70 |
| HC208 | 40(mm) | 0.76 | 1.68 | ||||||||||||
| HC209-26 | 1-5/8 | 5/16-24 | 7357 | 4598 | 0.92 | 2.03 | |||||||||
| HC209-27 | 1-11/16 | 3.3465 | 2.220 | 1.689 | 0.866 | 0.079 | 0.844 | 2.499 | 0.719 | 0.266 | 0.87 | 1.92 | |||
| HC209-28 | 1-3/4 | 85 | 56.4 | 42.9 | 22 | 2 | 21.4 | 63.5 | 18.3 | 6.8 | 0.81 | 1.79 | |||
| HC209 | 45(mm) | 0.81 | 1.79 | ||||||||||||
| HC210-30 | 1-7/8 | 1.06 | 2.34 | ||||||||||||
| HC210-31 | 1-15/16 | 3.5433 | 2.468 | 1.937 | 0.866 | 0.079 | 0.969 | 2.751 | 0.719 | 0.266 | 5/16-24 | 7895 | 5180 | 1.00 | 2.21 |
| HC210 | 50(mm) | 90 | 62.7 | 49.2 | 22 | 2 | 24.6 | 69.8 | 18.3 | 6.8 | 0.97 | 2.14 | |||
| HC211-32 | 2 | 5/16-24 | 9757 | 6552 | 1.56 | 3.44 | |||||||||
| HC211-34 | 2-1/8 | 3.9370 | 2.814 | 2.189 | 0.944 | 0.098 | 1.091 | 2.999 | 0.813 | 0.313 | 1.49 | 3.29 | |||
| HC211-35 | 2-3/16 | 100 | 71.4 | 55.6 | 24 | 2.5 | 27.7 | 76.2 | 20.6 | 8 | 1.34 | 2.95 | |||
| HC211 | 55(mm) | 1.37 | 3.02 | ||||||||||||
| HC212-36 | 2-1/4 | 3/8-24 | 11798 | 8093 | 2.03 | 4.48 | |||||||||
| HC212-38 | 2-3/8 | 4.3307 | 3.062 | 2.437 | 1.023 | 0.098 | 1.219 | 3.312 | 0.875 | 0.313 | 1.86 | 4.10 | |||
| HC212-39 | 2-7/16 | 110 | 77.8 | 61.9 | 27 | 2.5 | 31 | 84.1 | 22.2 | 8 | 1.77 | 3.90 | |||
| HC212 | 60(mm) | 1.87 | 4.12 | ||||||||||||
| HC215-47 | 2-15/16 | 5.1181 | 3.374 | 2.937 | 1.181 | 0.098 | 1.469 | 4.016 | 0.925 | 0.335 | 3/8-24 | 15149 | 10897 | 2.75 | 6.07 |
| HC215-48 | 3 | 130 | 85.7 | 74.6 | 30 | 2.5 | 37.3 | 102 | 23.5 | 8.5 | 2.68 | 5.90 | |||
