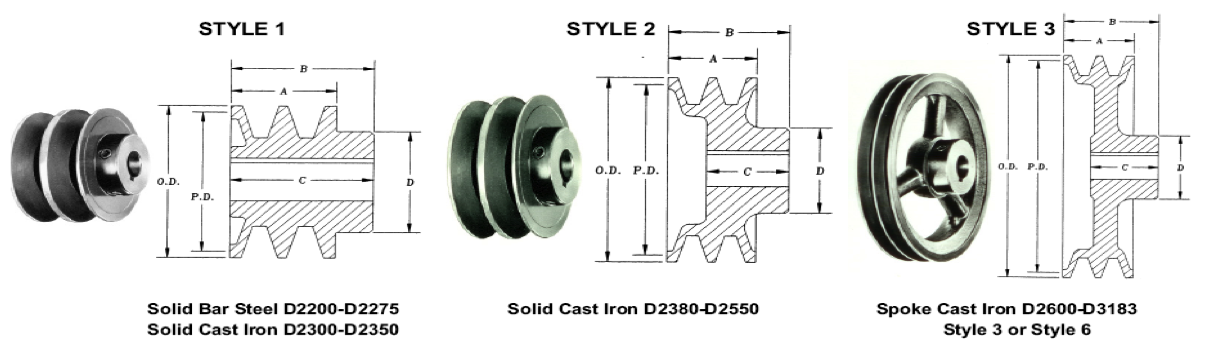

| for "O"(3L) and "A"(4L) v-belts | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIAMETER | PART NUMBER | STYLE | STOCK BORES MARKED"X"x | MAX BORE INCHES | DIMENSIONx INCHES | APPROX.WT LBS. | |||||||||||||
| D.D "A"BELT INCHES | D.D "O"BELT INCHES | 1/2 in | 5/8 in | 3/4 in | 7/8 in | 1 in | 1-1/8 in | 1-3/16 in | 1-1/4 in | 1-3/8 in | 1-7/16 in | A | B | C | D | ||||
| 1.7 | D2200 | 1 | x | x | x | x | 7/8 | 1-1/4 | 1-11/16 | 1-11/16 | 1-5/8 | .7 | |||||||
| 2.0 | 1.7 | D2225 | 1 | x | x | x | x | x | 1 | 1-1/4 | 1-11/16 | 1-11/16 | 1-7/8 | 1.0 | |||||
| 2.2 | 1.9 | D2250 | 1 | x | x | x | x | x | x | 1-1/8 | 1-1/4 | 1-11/16 | 1-11/16 | 2-1/8 | 1.4 | ||||
| 2.5 | 2.2 | D2275 | 1 | x | x | x | x | x | x | 1-1/4 | 1-1/4 | 1-11/16 | 1-11/16 | 2-1/4 | 1.6 | ||||
| 2.7 | 2.4 | D2300 | 1 | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-7/8 | 2.45 | 2.4 | ||||
| 3.0 | 2.7 | D2325 | 1 | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-7/8 | 2.45 | 2.8 | ||||
| 3.2 | 2.9 | D2350 | 1 | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-7/8 | 2.45 | 3.0 | ||||
| 3.5 | 3.2 | D2380 | 2 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 3.3 | ||
| 3.7 | 3.4 | D2400 | 2 | x | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 3.6 |
| 4.0 | 3.7 | D2425 | 2 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 3.8 | |
| 4.2 | 3.9 | D2450 | 2 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 3.9 | |
| 4.5 | 4.2 | D2480 | 2 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 4.8 | |
| 4.7 | 4.4 | D2500 | 2 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 5.1 | |
| 5.0 | 4.7 | D2525 | 2 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 5.2 | |
| 5.2 | 4.9 | D2550 | 2 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2.45 | 6.5 | |
| 5.5 | 5.2 | D2580 | 3 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 4.5 | ||
| 5.7 | 5.4 | D2600 | 3 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 4.9 | |
| 6.2 | 5.9 | D2650 | 3 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 5.4 | ||
| 6.7 | 6.4 | D2700 | 3 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 6.1 | |
| 7.0 | 6.7 | D2725 | 3 | x | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 6.4 | |
| 7.7 | 7.4 | D2800 | 3 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 6.7 | ||
| 8.7 | 8.4 | D2900 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 9.0 | ||
| 9.0 | 8.7 | D2925 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 9.3 | ||
| 9.7 | 9.4 | D3100 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 9.9 | ||
| 10.0 | 9.7 | D3103 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 10.0 | ||
| 10.7 | 10.4 | D3110 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 11.4 | ||
| 11.7 | 11.4 | D3120 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 11.6 | ||
| 12.0 | 11.7 | D3123 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 12.4 | ||
| 14.0 | 13.7 | D3143 | 6 | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-5/8 | 2-1/2 | 15.6 | ||||
| 15.0 | 14.7 | D3153 | 6 | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-7/8 | 2-1/2 | 16.0 | ||||
| 18.0 | 17.7 | D3183 | 6 | x | x | x | x | x | x | 1-1/2 | 1-3/8 | 2 | 1-7/8 | 2-1/2 | 20.5 | ||||
