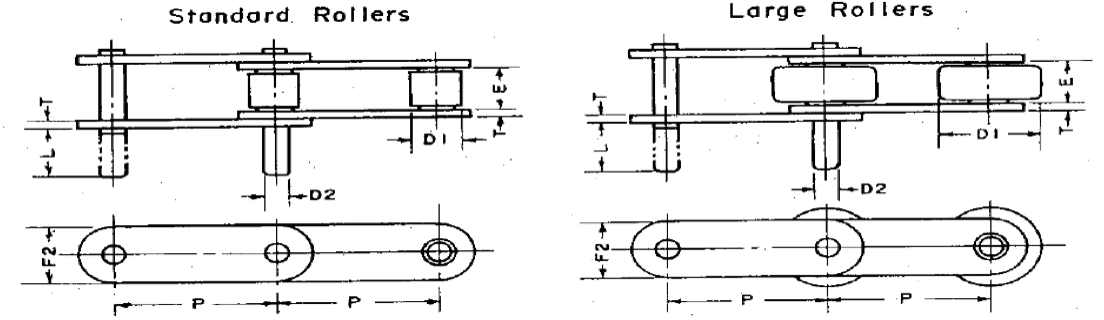

| D1 Attachments(One Pin Extended) & D3 Attachments(Both Pins Extended) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F1 | F2 | D1 | D2 | L | T | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||
| 35 | 3/8"x3/16" | 9.525x4.80 | 7.40 | 8.80 | 5.08 | 3.58 | 9.52 | 1.25 | 1050 |
| 41 | 1/2"x1/4" | 12.7x6.40 | 8.30 | 9.80 | 7.77 | 3.58 | 9.52 | 1.25 | 1250 |
| 40 | 1/2"x5/16" | 12.7x7.95 | 10.40 | 11.75 | 7.92 | 3.96 | 9.52 | 1.50 | 1800 |
| 50 | 5/8"x3/8" | 15.875x9.53 | 12.85 | 14.70 | 10.16 | 5.08 | 11.91 | 1.96 | 3000 |
| 60 | 3/4"x1/2" | 19.05x12.70 | 14.93 | 17.28 | 11.91 | 5.94 | 14.27 | 2.40 | 4200 |
| 80 | 1"x5/8" | 25.4x15.88 | 20.00 | 23.24 | 15.87 | 7.92 | 19.05 | 3.14 | 7400 |
| 100 | 1-1/4"x3/4" | 31.75x19.05 | 26.08 | 30.24 | 19.05 | 9.52 | 23.81 | 3.96 | 11500 |
| 120 | 1-1/2"x1" | 38.1x25.40 | 29.70 | 35.85 | 22.22 | 11.10 | 28.57 | 4.75 | 14500 |
| 140 | 1-3/4"x1" | 44.45x25.40 | 36.20 | 42.00 | 25.40 | 12.70 | 33.33 | 5.55 | 20500 |

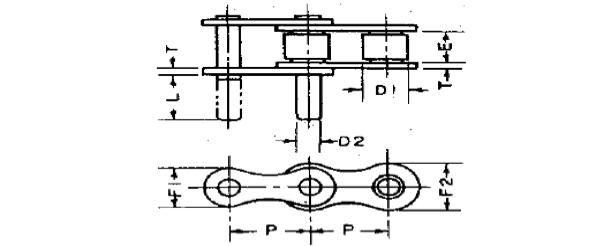

| D1 Attachments(One Pin Extended) & D3 Attachments(Both Pins Extended) | ||||||||
|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F2 | D1 | D2 | L | T | Ave. Ulti. Strength kg | |
| inch | mm | |||||||
| C-2040 | 1"x5/16" | 25.4x7.95 | 11.75 | 7.92 | 3.96 | 9.52 | 1.50 | 1800 |
| C-2042 | 1"x5/16" | 25.4x7.95 | 11.75 | 15.87 | 3.96 | 9.52 | 1.50 | 1800 |
| C-2050 | 1-1/4"x3/8" | 31.75x9.53 | 15.05 | 10.16 | 5.08 | 11.91 | 1.96 | 3000 |
| C-2052 | 1-1/4"x3/8" | 31.75x9.53 | 15.05 | 19.05 | 5.08 | 11.91 | 1.96 | 3000 |
| C-2060H | 1-1/2"x1/2" | 38.1x12.70 | 17.53 | 11.91 | 5.94 | 14.27 | 3.14 | 5400 |
| C-2062H | 1-1/2"x1/2" | 38.1x12.70 | 17.53 | 22.22 | 5.94 | 14.27 | 3.14 | 5400 |
| C-2080H | 2"x5/8" | 50.8x15.88 | 23.24 | 15.87 | 7.92 | 19.05 | 3.96 | 9500 |
| C-2082H | 2"x5/8" | 50.8x15.88 | 23.24 | 28.57 | 7.92 | 19.05 | 3.96 | 9500 |
| C-2100H | 2-1/2"x3/4" | 63.5x19.05 | 30.24 | 19.05 | 9.52 | 23.81 | 4.75 | 14000 |
| C-2102H | 2-1/2"x3/4" | 63.5x19.05 | 30.24 | 39.67 | 9.52 | 23.81 | 4.75 | 14000 |
| C-2120H | 3"x1" | 76.2x25.40 | 35.93 | 22.22 | 11.10 | 28.57 | 5.55 | 16500 |
| C-2122H | 3"x1" | 76.2x25.40 | 35.93 | 44.45 | 11.10 | 28.57 | 5.55 | 16500 |
