| BEARING NO. | Shaft Dia. | Dimensions(in) | Set Screw | Load Rating | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | lb. | |||||||||||||

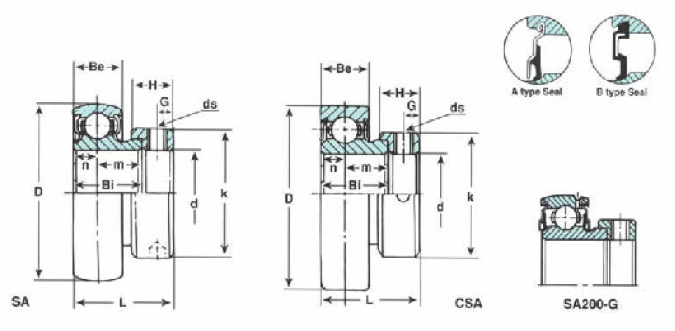

| d | D | L | Bi | Be | n | m | k | H | G | ds | Dynamic | Static | kg | lbs. | |
| SA201-8 | 1/2 | 1.5748 | 1.125 | 0.748 | 0.512 | 0.256 | 0.492 | 1.125 | 0.531 | 0.188 | 1/4-28 | 2150 | 1072 | 0.14 | 0.31 |
| SA202-10 | 5/8 | 40 | 28.6 | 19 | 13 | 6.5 | 12.5 | 28.6 | 13.5 | 4.8 | 0.13 | 0.29 | |||
| CSA104-12 | 3/4 | 1.6535 | 0.9687 | 0.6562 | 0.472 | 0.2362 | 0.42 | 1.1719 | 0.4375 | 0.190 | 1/4-28 | 2320 | 1000 | 0.12 | 0.28 |
| 42 | 24.6 | 16.67 | 12 | 6 | 10.668 | 29.8 | 11.1 | 4.8 | |||||||
| SA204-12 | 3/4 | 1.8504 | 1.218 | 0.843 | 0.551 | 0.295 | 0.531 | 1.260 | 0.531 | 0.188 | 1/4-28 | 2880 | 2484 | 0.15 | 0.33 |
| 47 | 31 | 21.4 | 14 | 7.5 | 13.5 | 32 | 13.5 | 4.8 | |||||||
| SA205-14 | 7/8 | 0.21 | 0.46 | ||||||||||||
| SA205-15 | 15/16 | 2.0472 | 1.218 | 0.843 | 0.591 | 0.295 | 0.531 | 1.500 | 0.531 | 0.188 | 1/4-28 | 3152 | 1765 | 0.19 | 0.42 |
| SA205-16 | 1 | 52 | 31 | 21.4 | 15 | 7.5 | 13.5 | 38.1 | 13.5 | 4.8 | 0.18 | 0.40 | |||
| SA206-17 | 1-1/16 | 5/16-24 | 4375 | 2542 | 0.35 | 0.77 | |||||||||
| SA206-18 | 1-1/8 | 2.4409 | 1.406 | 0.937 | 0.629 | 0.354 | 0.583 | 1.748 | 0.625 | 0.234 | 0.33 | 0.73 | |||
| SA206-19 | 1-3/16 | 62 | 35.7 | 23.8 | 16 | 9 | 14.8 | 44.4 | 15.9 | 6 | 0.31 | 0.68 | |||
| SA206-20 | 1-1/4 | 0.29 | 0.64 | ||||||||||||
| SA207-20 | 1-1/4 | 5/16-24 | 5777 | 3459 | 0.56 | 1.23 | |||||||||
| SA207-21 | 1-5/16 | 2.8346 | 1.531 | 1.000 | 0.669 | 0.374 | 0.626 | 2.188 | 0.688 | 0.266 | 0.53 | 1.17 | |||
| SA207-22 | 1-3/8 | 72 | 38.9 | 25.4 | 17 | 9.5 | 15.9 | 55.6 | 17.5 | 6.8 | 0.51 | 1.12 | |||
| SA207-23 | 1-7/16 | 0.48 | 1.06 | ||||||||||||
| SA208-24 | 1-1/2 | 3.1496 | 1.719 | 1.187 | 0.708 | 0.433 | 0.756 | 2.377 | 0.719 | 0.266 | 5/16-24 | 5787 | 4042 | 0.68 | 1.50 |
| SA208-25 | 1-9/16 | 80 | 43.7 | 30.1 | 18 | 11 | 19.2 | 60.3 | 18.3 | 6.8 | 0.65 | 1.43 | |||
| SA209-26 | 1-5/8 | 0.76 | 1.68 | ||||||||||||
| SA209-27 | 1-11/16 | 3.3465 | 1.719 | 1.187 | 0.748 | 0.433 | 0.756 | 2.499 | 0.719 | 0.266 | 5/16-24 | 7357 | 4598 | 0.73 | 1.61 |
| SA209-28 | 1-3/4 | 85 | 43.7 | 30.1 | 19 | 11 | 19.2 | 63.5 | 18.3 | 6.8 | 0.69 | 1.52 | |||
| SA210-30 | 1-7/8 | 2.5433 | 1.719 | 1.187 | 0.787 | 0.433 | 0.756 | 2.751 | 0.719 | 0.266 | 5/16-24 | 7895 | 5180 | 0.83 | 1.83 |
| SA210-31 | 1-15/16 | 90 | 43.7 | 30.1 | 20 | 11 | 19.2 | 69.8 | 18.3 | 6.8 | 0.79 | 1.74 | |||
| SA211-32 | 2 | 0.96 | 2.12 | ||||||||||||
| SA211-34 | 2-1/8 | 3.9370 | 1.906 | 1.280 | 0.945 | 0.472 | 0.807 | 2.999 | 0.813 | 0.313 | 3/8-24 | 9757 | 6552 | 0.87 | 1.92 |
| SA211-35 | 2-3/16 | 100 | 48.4 | 32.5 | 24 | 12 | 20.5 | 76.2 | 20.6 | 8 | 0.81 | 1.79 | |||
| SA212-36 | 2-1/4 | 43307 | 1.937 | 1.315 | 0.945 | 0.472 | 0.843 | 3.311 | 0.874 | 0.313 | 7/16-20 | 11798 | 8093 | 1.30 | 2.86 |
| SA212-39 | 2-7/16 | 110 | 49.2 | 33.4 | 24 | 12 | 21.4 | 84.1 | 22.2 | 8 | 1.09 | 2.41 | |||
