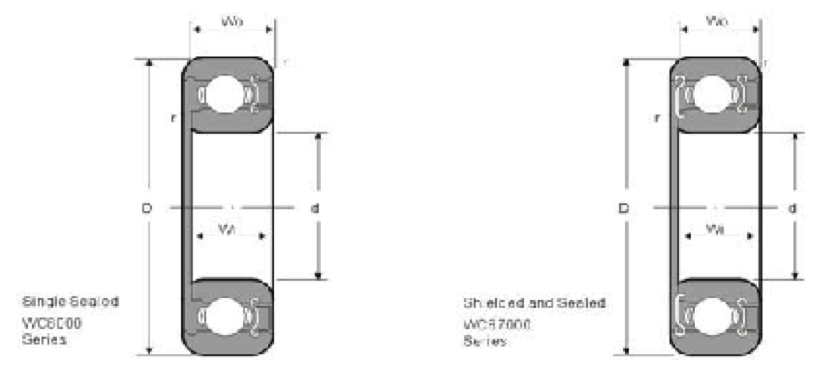

| Bearing No. | Bore d | Outer Diameter D | Width | Radius r | Basic Load Rating lbs | Weight lbs | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | Wi | Wo | mm | inch | Dynamic Cr | Static Cor | |||||
| mm | inch | mm | inch | |||||||||||
| WC8006 | WC87006 | 6 | .2362 | 24 | .9449 | 9.804 | .3860 | 10.319 | .4063 | 0.3 | .012 | 747 | 317 | .055 |
| WC8007 | WC87007 | 7 | .2756 | 24 | .9449 | 9.804 | .3860 | 10.319 | .4063 | 0.3 | .012 | 747 | 317 | .051 |
| WC8008 | WC87008 | 8 | .3150 | 24 | .9449 | 9.804 | .3860 | 10.319 | .4063 | 0.3 | .012 | 747 | 317 | .048 |
| WC8009 | WC87009 | 9 | .3543 | 30 | 1.1811 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1047 | 465 | .105 |
| WC8011 | WC87011 | 11 | .4331 | 32 | 1.2598 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1375 | 626 | .104 |
| WC8013 | WC87013 | 13 | .5118 | 32 | 1.2598 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1375 | 626 | .095 |
| WC8014 | WC87014 | 14 | .5512 | 35 | 1.3780 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1525 | 747 | .125 |
| WC8016 | WC87016 | 16 | .6299 | 35 | 1.3870 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1525 | 747 | .114 |
| WC8026 | WC87026 | 26 | 1.0236 | 52 | 2.0472 | 15.240 | .6000 | 15.875 | .6250 | 1 | .04 | 3150 | 1785 | .294 |
| WC8035 | WC87035 | 5 | .1969 | 19 | .748 | 9.804 | .3860 | 10.319 | .4063 | 0.3 | .012 | 524 | 198 | .026 |
| WC8036 | WC87036 | 6 | .2362 | 19 | .748 | 9.804 | .3860 | 10.319 | .4063 | 0.3 | .012 | 524 | 198 | .027 |
| WC8037 | WC87037 | 7 | .2756 | 22 | .8661 | 9.804 | .3860 | 10.319 | .4063 | 0.3 | .012 | 740 | 306 | .043 |
| WC8038 | WC87038 | 8 | .3150 | 22 | .8661 | 9.804 | .3860 | 10.319 | .4063 | 0.3 | .012 | 740 | 306 | .040 |
| WC8039 | WC87039 | 9 | .3543 | 26 | 1.0236 | 9.804 | .3860 | 10.319 | .4063 | 0.6 | .025 | 1025 | 438 | .057 |
| WC8500 | WC87500 | 10 | .3937 | 30 | 1.1811 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1047 | 465 | .091 |
| WC8501 | WC87501 | 12 | .4724 | 32 | 1.2598 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1375 | 626 | .099 |
| WC8502 | WC87502 | 15 | .5906 | 35 | 1.378 | 12.192 | .4800 | 12.700 | .5000 | 0.6 | .025 | 1525 | 747 | .119 |
| WC8503 | WC87503 | 17 | .6693 | 40 | 1.5748 | 13.665 | 0.538 | 14.288 | .5625 | 0.6 | .025 | 2149 | 1075 | .116 |
| WC8504 | WC87504 | 20 | .7874 | 47 | 1.8504 | 15.240 | .6000 | 15.875 | .6250 | 1 | .04 | 2885 | 1494 | .259 |
| WC8505 | WC87505 | 25 | .9843 | 52 | 2.0472 | 15.240 | .6000 | 15.875 | .6250 | 1 | .04 | 3150 | 1785 | .304 |
| WC8506 | WC87506 | 30 | 1.1811 | 62 | 2.4409 | 19 | .7480 | 20 | .7874 | 1 | .04 | 3363 | 2256 | .571 |
| WC8507 | WC87507 | 35 | 1.3780 | 72 | 2.8346 | 20 | .7874 | 21 | .8268 | 1 | .04 | 2120 | 1330 | .765 |
| WC8508 | WC87508 | 40 | 1.5748 | 80 | 3.1496 | 24 | .9449 | 24 | .9449 | 1 | .04 | 2960 | 1820 | 1.180 |
| WC8509 | WC87509 | 45 | 1.7717 | 85 | 3.3465 | 24 | .9449 | 24 | .9449 | 1 | .04 | 3300 | 2050 | 1.220 |
| WC8510 | WC87510 | 50 | 1.9685 | 90 | 3.5433 | 26 | 1.0236 | 26 | 1.0236 | 1 | .04 | 3560 | 2350 | 1.400 |
| WC8511 | WC87511 | 55 | 2.1654 | 100 | 3.9370 | 27 | 1.0630 | 27 | 1.0630 | 1.5 | .06 | 4390 | 2970 | 1.740 |
