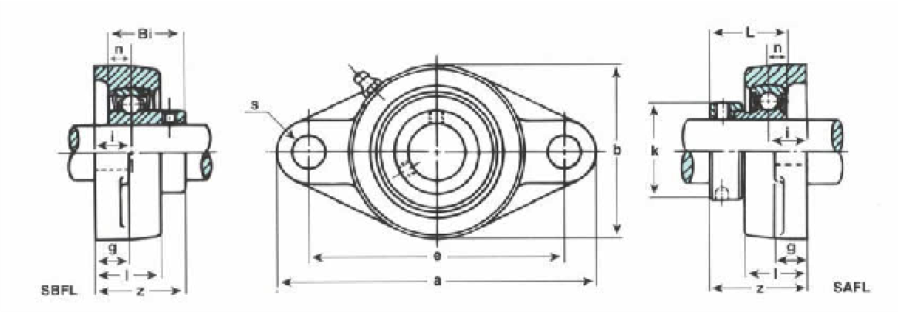

| SBFL200-SERIES SET SCREW TYPE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
| a | e | i | g | I | s | b | z | Bi | n | kg | lbs. | ||||||
| SBFL201-8G | 1/2 | 3-7/8 | 3 | 19/32 | 7/16 | 1 | 15/32 | 2-7/32 | 1-17/32 | 0.866 | 0.236 | 5/16 | SB201-8G | FL203 | 0.39 | 0.85 | |
| SBFL202-10G | 5/8 | SB202-10G | |||||||||||||||
| SBFL204-12G | 3/4 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-5/16 | 0.984 | 0.275 | 3/8 | SB204-12G | FL204 | 0.47 | 1.04 | |
| SBFL205-14G | 7/8 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-15/32 | 1.062 | 0.295 | 1/2 | SB205-14G | FL205 | 0.67 | 1.48 | |
| SBFL205-15G | 15/16 | SB205-15G | |||||||||||||||
| SBFL205-16G | 1 | SB205-16G | |||||||||||||||
| SBFL206-17G | 1-1/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-19/32 | 1.181 | 0.315 | 1/2 | SB206-17G | FL206 | 0.91 | 2.01 | |
| SBFL206-18G | 1-1/8 | SB206-18G | |||||||||||||||
| SBFL206-19G | 1-3/16 | SB206-19G | |||||||||||||||
| SBFL206-20G | 1-1/4 | SB206-20G | |||||||||||||||
| SBFL207-20G | 1-1/4 | 6-11/32 | 5-1/8 | 3/4 | 9/16 | 1-11/32 | 5/8 | 3-17/32 | 1-3/4 | 1.259 | 0.335 | 1/2 | SB207-20G | FL207 | 1.26 | 2.78 | |
| SBFL207-21G | 1-5/16 | SB207-21G | |||||||||||||||
| SBFL207-22G | 1-3/8 | SB207-22G | |||||||||||||||
| SBFL207-23G | 1-7/16 | SB207-23G | |||||||||||||||
| SBFL208-24G | 1-1/2 | 6-7/8 | 5-43/64 | 53/64 | 9/16 | 1-13/32 | 5/8 | 3-15/16 | 2-1/64 | 1.338 | 0.354 | 1/2 | SB208-24G | FL208 | 1.61 | 3.55 | |
| SAFL200-SERIES ECCENTRIC LOCKING COLLAR TYPE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
| a | e | i | g | I | s | b | z | L | n | k | kg | lbs. | |||||
| SAFL201-8G | 1/2 | 3-7/8 | 3 | 19/32 | 7/16 | 1 | 25/32 | 2-7/32 | 1-15/32 | 1-15/32 | 0.256 | 1.125 | 5/16 | SA201-8G | FL203 | 0.41 | 0.90 |
| SAFL202-10G | 5/8 | SA202-10G | |||||||||||||||
| SAFL204-12G | 3/4 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-5/16 | 1-5/16 | 0.295 | 1-1/4 | 3/8 | SA204-12G | FL204 | 0.49 | 1.08 |
| SAFL205-14G | 7/8 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-15/32 | 1-15/32 | 0.295 | 1-1/2 | 1/2 | SA205-14G | FL205 | 0.69 | 1.52 |
| SAFL205-15G | 15/16 | SA205-15G | |||||||||||||||
| SAFL205-16G | 1 | SA205-16G | |||||||||||||||
| SAFL206-17G | 1-1/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-19/32 | 1-19/32 | 0.354 | 1-3/4 | 1/2 | SA206-17G | FL206 | 0.97 | 2.14 |
| SAFL206-18G | 1-1/8 | SA206-18G | |||||||||||||||
| SAFL206-19G | 1-3/16 | SA206-19G | |||||||||||||||
| SAFL206-20G | 1-1/4 | SA206-20G | |||||||||||||||
| SAFL207-20G | 1-1/4 | 6-11/16 | 5-1/8 | 5/8 | 9/16 | 1-11/32 | 5/8 | 3-17/32 | 1-3/4 | 1-3/4 | 0.374 | 2-3/16 | 1/2 | SA207-20G | FL207 | 1.37 | 3.02 |
| SAFL207-21G | 1-5/16 | SA207-21G | |||||||||||||||
| SAFL207-22G | 1-3/8 | SA207-22G | |||||||||||||||
| SAFL207-23G | 1-7/16 | SA207-23G | |||||||||||||||
| SAFL208-24G | 1-1/2 | 6-7/8 | 5-43/64 | 53/64 | 9/16 | 1-13/32 | 5/8 | 3-15/16 | 2-1/64 | 2-1/64 | 0.433 | 2-3/8 | 1/2 | SA208-24G | FL208 | 1.69 | 3.73 |
