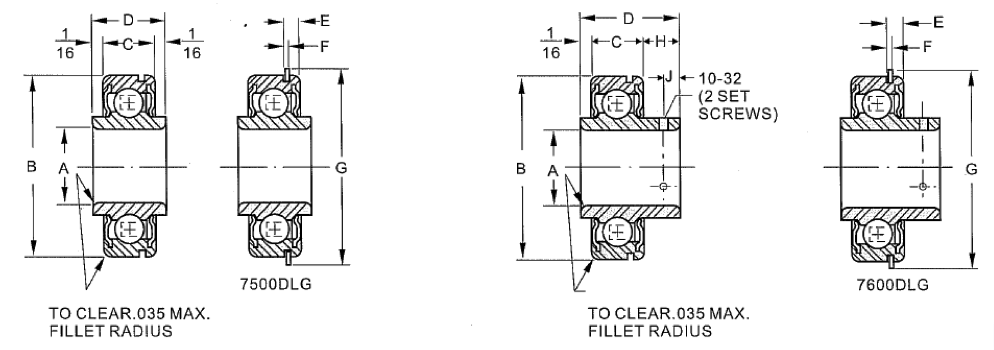

Series 7500-7600

Bearing No.   Bore A +.0000 -.0005 Outer Diameter B   Width C Width D E F G Basic Load Rating lbs
      inch tolerance outer ring +.000 -.005 outer ring +.000 -.005       Static Cr Dynamic Cor
7508DL 7508DLG .5000 1.7500 +.0000 -.0005 .625 .750 .136 .042 1-59/64 657 1125
7510DL 7510DLG .6250 1.7500 +.0000 -.0005 .625 .750 .136 .042 1-59/64 657 1125
7512DL 7512DLG .7500 1.7500 +.0000 -.0005 .625 .750 .136 .042 1-59/64 657 1125
7514DL 7514DLG .8750 2.0000 +.0000 -.0006 .625 .750 .136 .042 2-5/32 1020 1680
7516DL 7516DLG 1.0000 2.0000 +.0000 -.0006 .625 .750 .136 .042 2-5/32 1020 1680
7518DL 7518DLG 1.1250 2.5625 +.0000 -.0006 .750 .875 .190 .065 2-27/32 1708 2526
7520DL 7520DLG 1.2500 2.5625 +.0000 -.0006 .750 .875 .190 .065 2-27/32 1708 2526
Series 7600DLG
Bearing No.   Bore A +.0000 -.0005 Outer Diameter B   Width C Width D E F G H J Basic Load Rating lbs
      inch tolerance outer ring +.000 -.005 outer ring +.000 -.005           Static Cr Dynamic Cor
7608DL 7608DLG .5000 1.7500 +.0000 -.0005 .625 .750 .136 .042 1-59/64 .405 .233 657 1125
7610DL 7610DLG .6250 1.7500 +.0000 -.0005 .625 .750 .136 .042 1-59/64 .405 .233 657 1125
7612DL 7612DLG .7500 1.7500 +.0000 -.0005 .625 .750 .136 .042 1-59/64 .405 .233 657 1125
7614DL 7614DLG .8750 2.0000 +.0000 -.0006 .625 .750 .136 .042 2-5/32 .492 .261 1020 1680
7616DL 7616DLG 1.0000 2.0000 +.0000 -.0006 .625 .750 .136 .042 2-5/32 .492 .261 1020 1680
7618DL 7618DLG 1.1250 2.5625 +.0000 -.0006 .750 .875 .190 .065 2-27/32 .605 .261 1708 2526
7620DL 7620DLG 1.2500 2.5625 +.0000 -.0006 .750 .875 .190 .065 2-27/32 .605 .261 1708 2526
