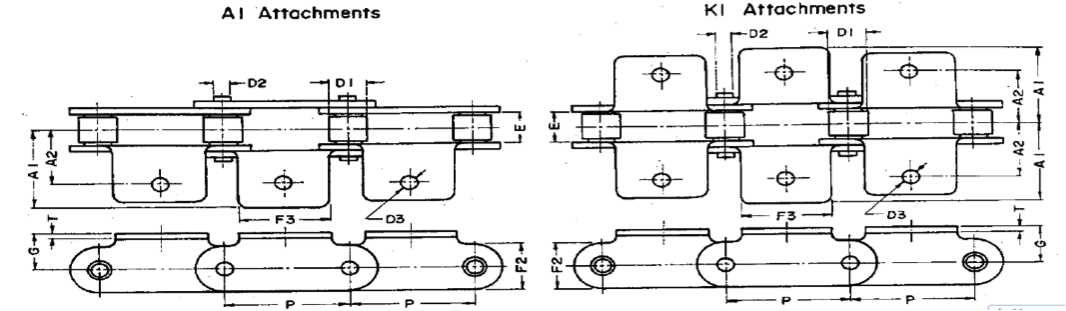

| A1 Attachments | K1 Attachments | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F2 | D1 | D2 | A1 | A2 | F3 | D3 | G | T | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| C-2040 | 1"x5/16" | 25.4x7.95 | 11.75 | 7.92 | 3.96 | 18.85 | 12.70 | 19.05 | 3.57 | 9.13 | 1.50 | 1800 |
| C-2050 | 1-1/4"x3/8" | 31.75x9.53 | 15.05 | 10.16 | 5.08 | 24.00 | 15.88 | 25.40 | 5.16 | 11.11 | 1.96 | 3000 |
| C-2060H | 1-1/2"x1/2" | 38.1x12.70 | 17.53 | 11.91 | 5.94 | 30.56 | 21.43 | 28.58 | 5.16 | 14.69 | 3.14 | 5400 |
| C-2080H | 2"x5/8" | 50.8x15.88 | 23.24 | 15.87 | 7.92 | 38.50 | 27.78 | 38.10 | 6.75 | 19.05 | 3.96 | 9500 |
| C-2100H | 2-1/2"x3/4" | 63.5x19.05 | 30.24 | 19.05 | 9.52 | 49.91 | 33.34 | 47.62 | 8.33 | 23.42 | 4.75 | 14000 |
| C-2120H | 3"x1" | 76.2x25.40 | 35.93 | 22.22 | 11.10 | 60.71 | 39.69 | 57.15 | 9.92 | 27.78 | 5.55 | 16500 |

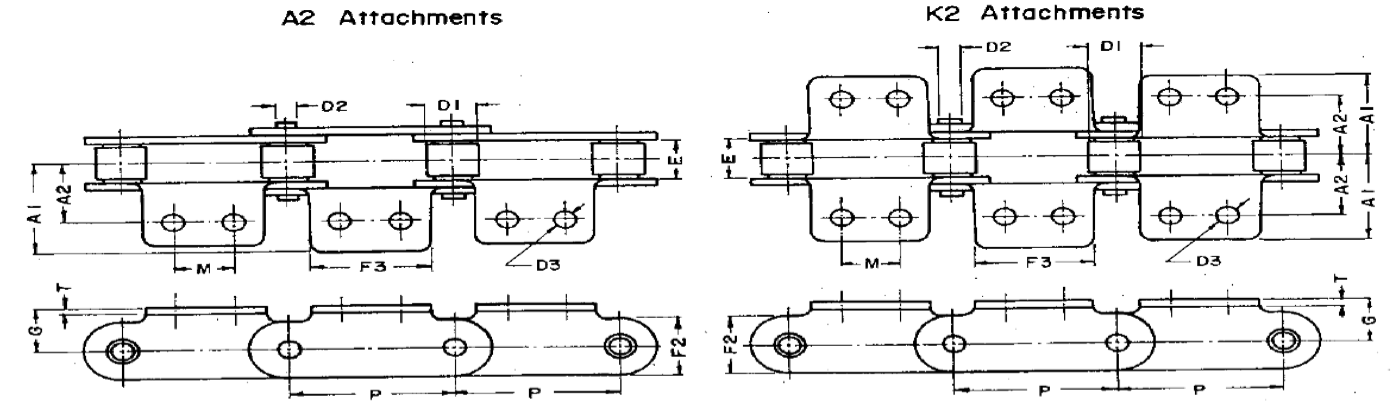

| A2 Attachments | K2 Attachments | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F2 | D1 | D2 | A1 | A2 | F3 | D3 | G | M | T | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| C-2040 | 1"x5/16" | 25.4x7.95 | 11.75 | 7.92 | 3.96 | 18.85 | 12.70 | 19.05 | 3.57 | 9.13 | 9.52 | 1.50 | 1800 |
| C-2050 | 1-1/4"x3/8" | 31.75x9.53 | 15.05 | 10.16 | 5.08 | 24.00 | 15.88 | 25.40 | 5.16 | 11.11 | 11.91 | 1.96 | 3000 |
| C-2060H | 1-1/2"x1/2" | 38.1x12.70 | 17.53 | 11.91 | 5.94 | 30.56 | 21.43 | 28.58 | 5.16 | 14.69 | 14.29 | 3.14 | 5400 |
| C-2080H | 2"x5/8" | 50.8x15.88 | 23.24 | 15.87 | 7.92 | 38.50 | 27.78 | 38.10 | 6.75 | 19.05 | 19.05 | 3.96 | 9500 |
| C-2100H | 2-1/2"x3/4" | 63.5x19.05 | 30.24 | 19.05 | 9.52 | 49.91 | 33.34 | 47.62 | 8.33 | 23.42 | 23.81 | 4.75 | 14000 |
| C-2120H | 3"x1" | 76.2x25.40 | 35.93 | 22.22 | 11.10 | 60.71 | 39.69 | 57.15 | 9.92 | 27.78 | 28.58 | 5.55 | 16500 |
