Inch Series 6800-6900

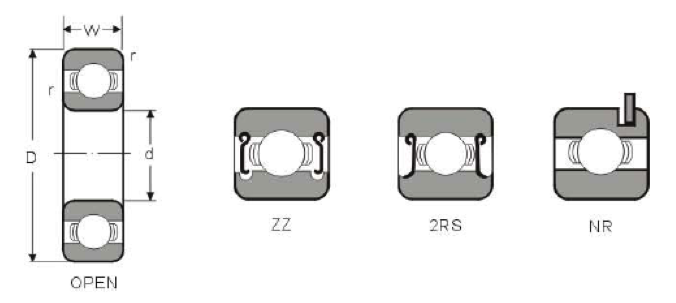

Bearing No. Bore d   Outer Diameter D   Width W   Radius r   Basic Load Rating lbs   Weight lbs
  mm inch mm inch mm inch mm inch Dynamic Cr Static Cor kg. lbs.
6800 10 0.3934 19 0.7480 5 0.1969 0.5 0.019 410 208 0.005 0.011
6801 12 0.4724 21 0.8268 5 0.1969 0.5 0.019 430 234 0.006 0.013
6802 15 0.5906 24 0.9449 5 0.1969 0.5 0.019 465 283 0.007 0.015
6803 17 0.6693 26 1.0236 5 0.1969 0.5 0.019 630 385 0.008 0.018
6804 20 0.7874 32 1.2598 7 0.2756 0.5 0.019 900 555 0.019 0.042
6805 25 0.9843 37 1.4567 7 0.2756 0.5 0.019 965 665 0.022 0.053
6806 30 1.1811 42 1.6535 7 0.2756 0.5 0.019 1060 815 0.026 0.055
6807 35 1.3780 47 1.8504 7 0.2756 0.5 0.019 1100 905 0.029 0.063
6808 40 1.5748 52 2.0472 7 0.2756 0.5 0.019 1140 985 0.033 0.072
6809 45 1.7717 58 2.2835 7 0.2756 0.5 0.019 1419 1270 0.040 0.088
6810 50 1.9685 65 2.5591 7 0.2756 0.5 0.019 1480 1370 0.052 0.114
6811 55 2.1654 72 2.8346 9 0.3543 0.5 0.019 1980 1820 0.083 0.182
6812 60 2.3622 78 3.0709 10 0.3937 0.5 0.019 2580 2380 0.106 0.233
6813 65 2.5591 85 3.3465 10 0.3937 1 0.039 2610 2480 0.128 0.281
6814 70 2.7559 90 3.5433 10 0.3937 1 0.039 2720 2680 0.137 0.301
6815 75 2.9528 95 3.7402 10 0.3937 1 0.039 2820 2890 0.145 0.319
6816 50 3.1496 100 3.9370 10 0.3937 1 0.039 2850 2990 0.154 0.338
6817 85 3.3465 110 4.3307 13 0.5118 1.5 0.059 4200 4250 0.270 0.594
6818 90 3.5433 115 4.5267 13 0.5118 1.5 0.059 4250 4450 0.285 0.627
6819 95 3.7402 120 4.7244 13 0.5118 1.5 0.059 4350 4650 0.300 s0.660
6820 100 3.937 125 4.9213 13 0.5118 1.5 0.059 4400 4750 0.313 0.668
Bearing No. Bore d   Outer Diameter D   Width W   Radius r   Basic Load Rating lbs   Weight lbs
  mm inch mm inch mm inch mm inch Dynamic Cr Static Cor kg. lbs.
6900 10 .3934 22 .8661 6 .2362 0.5 .020 605 285 0.009 .020
6901 12 .4724 24 .9449 6 .2362 0.5 .020 650 330 0.011 .024
6902 15 .5906 28 1.1024 7 .2756 0.5 .020 920 460 0.016 .035
6903 17 .6693 30 1.1811 7 .2756 0.5 .020 1050 580 0.018 .040
6904 20 .7874 37 1.4567 9 .3543 0.5 .020 1430 825 0.036 .079
6905 25 .9843 42 1.6535 9 .3543 0.5 .020 1580 1020 0.042 .093
6906 30 1.1811 47 1.8504 9 .3543 0.5 .020 1630 1130 0.048 .106
6907 35 1.3780 55 2.1654 10 .3937 1 .039 2510 1670 0.074 .163
6908 40 1.5748 62 2.4409 12 .4724 1 .039 1140 985 0.11 .243
6909 45 1.7717 68 2.6772 12 .4724 1 .039 3400 2530 0.128 .282
6910 50 1.9685 72 2.8346 12 .4724 1 .039 3500 2750 0.132 .291
6911 55 2.1654 80 3.1496 13 .5118 1.5 .059 3600 2980 0.180 .397
6912 60 2.3622 85 3.3465 13 .5118 1.5 .059 3700 3200 0.193 .425
6913 65 2.5591 90 3.5433 13 .5118 1.5 .059 2610 2480 0.206 .454
6914 70 2.7559 100 3.937 16 .6229 1.5 .059 5350 4750 0.335 .736
6915 75 2.9528 105 4.1339 16 .6229 1.5 .059 5500 5100 0.354 .778
6916 50 3.1496 110 4.3307 16 .6229 2 .079 5600 5400 0.374 .822
6917 85 3.3465 120 4.7244 18 .7087 2 .079 7200 6650 0.536 1.18
6918 90 3.5433 125 4.9213 18 .7087 2 .079 4250 4450 0.555 1.22
6919 95 3.7402 130 5.1181 18 .7087 2 .079 7550 7550 0.582 1.28
6920 100 3.937 140 5.5118 20 .7874 2 .079 9250 8900 0.786 1.73
