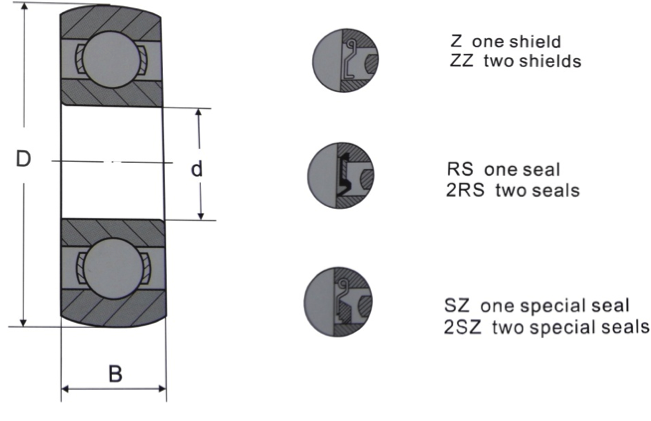

| Bearing No. | Bore d | Outer Diameter D | Width W | Basic Load Rating KN | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | Kg | |
| SC201 | 12 | .4724 | 32 | 1.2598 | 10 | .3937 | 6.82 | 3.06 | .035 |
| SC202 | 15 | .5906 | 35 | 1.3780 | 11 | .4331 | 7.64 | 3.72 | .045 |
| SC203 | 17 | .6693 | 40 | 1.5748 | 12 | .4724 | 9.57 | 4.79 | .064 |
| SC204 | 20 | .7871 | 47 | 1.8504 | 14 | .5512 | 12.84 | 6.66 | 0.11 |
| SC205 | 25 | .9843 | 52 | 2.0472 | 15 | .5006 | 14.01 | 7.84 | 0.18 |
| SC206 | 30 | 1.1811 | 62 | 2.4409 | 16 | .6299 | 19.40 | 11.27 | 0.20 |
| SC207 | 35 | 1.3780 | 72 | 2.8346 | 17 | .6693 | 25.68 | 15.39 | 0.30 |
| SC208 | 40 | 1.5748 | 80 | 3.1496 | 18 | .7087 | 29.11 | 17.84 | .37 |
| SC209 | 45 | 1.7717 | 85 | 3.3465 | 19 | .7480 | 32.63 | 20.29 | 0.41 |
| SC210 | 50 | 1.9685 | 90 | 3.5433 | 20 | .7874 | 35.08 | 23.23 | 0.46 |
| SC211 | 55 | 2.1654 | 100 | 3.9370 | 21 | .8268 | 43.32 | 29.90 | 0.61 |
| SC212 | 60 | 2.3622 | 110 | 4.3307 | 22 | .8661 | 47.82 | 35.28 | 0.78 |
| SC213 | 65 | 2.5590 | 120 | 4.7244 | 23 | .9055 | 57.21 | 40.00 | 0.99 |
| SC214 | 70 | 2.7559 | 125 | 4.9213 | 24 | .9449 | 60.83 | 45.03 | 1.08 |
| SC215 | 75 | 2.9528 | 130 | 5.1181 | 25 | .9843 | 66.11 | 49.50 | 1.17 |
| SC216 | 80 | 3.1496 | 140 | 5.5118 | 26 | 1.0236 | 72.55 | 54.30 | 1.44 |
| SC217 | 85 | 3.3465 | 150 | 5.9055 | 28 | 1.1024 | 83.21 | 63.96 | 1.80 |
| SC304 | 20 | .7874 | 52 | 2.0172 | 15 | .5906 | 15.88 | 7.84 | 0.14 |
| SC305 | 25 | .9843 | 62 | 2.4409 | 17 | .6693 | 20.58 | 11.27 | 0.24 |
| SC306 | 30 | 1.1811 | 72 | 2.8346 | 19 | .7480 | 26.66 | 14.99 | 0.35 |
| SC307 | 35 | 1.3780 | 80 | 3.1496 | 21 | .8268 | 33.32 | 19.21 | 0.46 |
| SC308 | 40 | 1.5748 | 90 | 3.5433 | 23 | .8055 | 40.67 | 24.01 | 0.64 |
| SC309 | 45 | 1.7717 | 100 | 3.9370 | 25 | .9843 | 48.8 | 29.50 | 0.84 |
| SC310 | 50 | 1.9685 | 110 | 4.3307 | 27 | 1.0630 | 61.94 | 38.22 | 1.10 |
| SC311 | 55 | 2.1654 | 120 | 9.7211 | 29 | 1.1917 | 71.57 | 44.76 | 1.36 |
| SC312 | 60 | 2.3622 | 130 | 5.1181 | 31 | 1.2205 | 81.75 | 51.85 | 1.70 |
| SC313 | 65 | 2.5590 | 140 | 5.5118 | 33 | 1.2992 | 93.87 | 60.44 | 2.09 |
| SC314 | 70 | 2.7559 | 150 | 5.9055 | 35 | 1.3780 | 104.13 | 68.04 | 2.51 |
