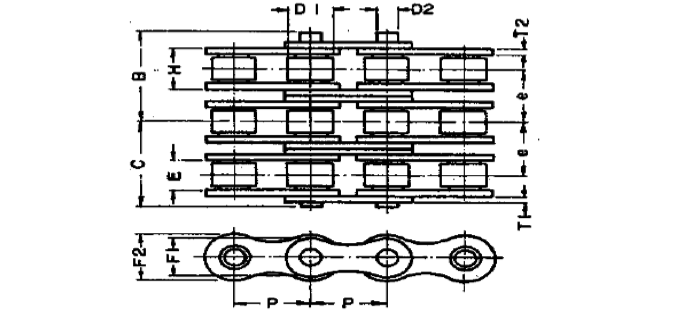

| TRIPLE STRAND | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | e | T1 | T2 | WT kg/m | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||||
| 35-3 | 3/8"x3/16" | 9.525x4.80 | 7.46 | 17.1 | 16.0 | 7.40 | 8.80 | 5.08 | 3.58 | 10.13 | 1.25 | 1.25 | 0.97 | 3200 |
| 40-3 | 1/2"x5/16" | 12.7x7.95 | 11.17 | 24.0 | 22.4 | 10.40 | 11.75 | 7.92 | 3.96 | 14.38 | 1.50 | 1.50 | 1.86 | 5400 |
| 50-3 | 5/8"x3/8" | 15.875x9.53 | 13.84 | 29.3 | 28.1 | 12.85 | 14.70 | 10.16 | 5.08 | 18.11 | 1.96 | 1.96 | 3.00 | 9000 |
| 60-3 | 3/4"x1/2" | 19.05x12.70 | 17.75 | 36.5 | 35.3 | 14.93 | 17.28 | 11.91 | 5.94 | 22.78 | 2.40 | 2.40 | 4.26 | 12600 |
| 80-3 | 1"x5/8" | 25.4x15.88 | 22.60 | 47.6 | 45.5 | 20.00 | 23.24 | 15.87 | 7.92 | 29.29 | 3.14 | 3.14 | 7.13 | 22200 |
| 100-3 | 1-1/4"x3/4" | 31.75x19.05 | 27.45 | 58.8 | 55.3 | 26.08 | 30.24 | 19.05 | 9.52 | 35.76 | 3.96 | 3.96 | 11.44 | 34500 |
| 120-3 | 1-1/2"x1" | 38.1x25.40 | 35.45 | 74.8 | 69.9 | 29.70 | 35.85 | 22.22 | 11.10 | 45.44 | 4.75 | 4.75 | 17.41 | 43500 |
| ROLLERLESS CHAIN | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T1 | T2 | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| 55 | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.5 | 10.0 | 12.85 | 14.7 | 7.24 | 5.08 | 1.96 | 1.96 | 0.82 | 3000 |
| 65 | 3/4"x1/2" | 19.05x12.70 | 17.75 | 13.9 | 12.5 | 14.93 | 17.28 | 8.39 | 5.94 | 2.40 | 2.40 | 1.17 | 4200 |
| 85 | 1"x5/8" | 25.4x15.88 | 22.60 | 18.4 | 16.1 | 20.00 | 23.24 | 11.06 | 7.92 | 3.14 | 3.14 | 2.02 | 7400 |
| 105 | 1-1/4"x3/4" | 31.75x19.05 | 27.45 | 22.9 | 19.7 | 26.08 | 30.24 | 13.58 | 9.52 | 3.96 | 3.96 | 3.28 | 11500 |
