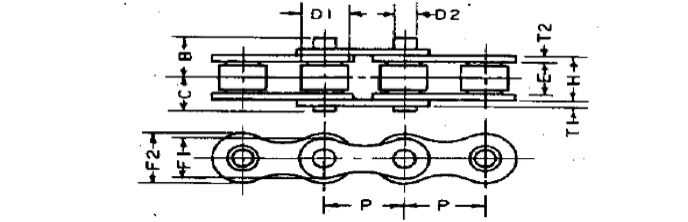

| SINGLE STRAND | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T1 | T2 | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| 25 SS | 1/4"x1/8" | 6.35x3.18 | 4.80 | 4.8 | 3.8 | 5.00 | 5.80 | 3.30 | 2.30 | 0.75 | 0.75 | 0.14 | 300 |
| 35 SS | 3/8"x3/16" | 9.525x4.80 | 7.46 | 7.0 | 5.8 | 7.40 | 8.80 | 5.08 | 3.58 | 1.25 | 1.25 | 0.33 | 800 |
| 41 SS | 1/2"x1/4" | 12.7x6.40 | 9.06 | 7.8 | 6.6 | 8.30 | 9.80 | 7.77 | 3.58 | 1.25 | 1.25 | 0.41 | 800 |
| 40 SS | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 7.92 | 3.96 | 1.50 | 1.50 | 0.63 | 1300 |
| 50 SS | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.5 | 10.0 | 12.85 | 14.70 | 10.16 | 5.08 | 1.96 | 1.96 | 1.01 | 2250 |
| 60 SS | 3/4"x1/2" | 19.05x12.70 | 17.75 | 13.9 | 12.5 | 14.93 | 17.28 | 11.91 | 5.94 | 2.40 | 2.40 | 1.44 | 3100 |
| 80 SS | 1"x5/8" | 25.4x15.88 | 22.60 | 18.4 | 16.1 | 20.00 | 23.24 | 15.87 | 7.92 | 3.14 | 3.14 | 2.4 | 5000 |

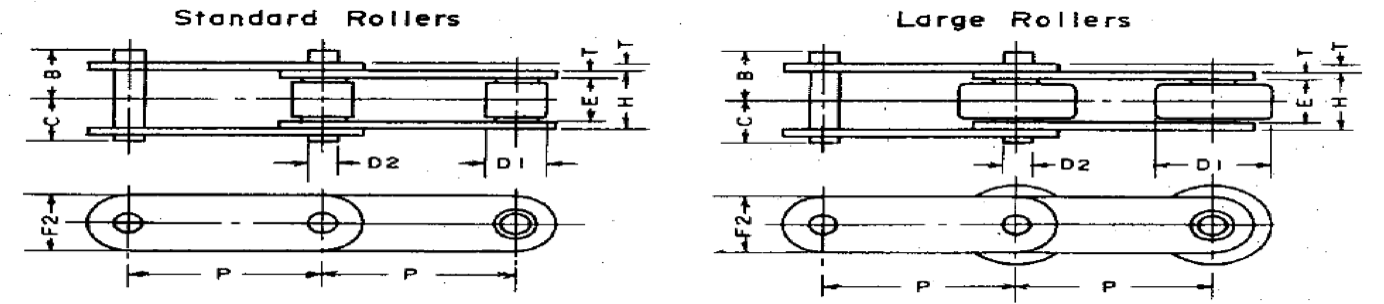

| STAINLESS STEEL SUS304 DOUBLE-PITCH ROLLER CHAIN | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F2 | D1 | D2 | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||
| C-2040 SS | 1"x5/16" | 25.4x7.95 | 11.17 | 9.1 | 8.1 | 11.75 | 7.92 | 3.96 | 1.50 | 0.50 | 1300 |
| C-2042 SS | 1"x5/16" | 25.4x7.95 | 11.17 | 9.1 | 8.1 | 11.75 | 15.87 | 3.96 | 1.50 | 0.84 | 1300 |
| C-2050 SS | 1-1/4"x3/8" | 31.75x9.53 | 13.84 | 11.5 | 10.0 | 15.05 | 10.16 | 5.08 | 1.96 | 0.78 | 2250 |
| C-2052 SS | 1-1/4"x3/8" | 31.75x9.53 | 13.84 | 11.5 | 10.0 | 15.05 | 19.05 | 5.08 | 1.96 | 1.25 | 2250 |
| C-2060 SS | 1-1/2"x1/2" | 38.1x12.70 | 17.75 | 13.9 | 12.5 | 17.53 | 11.91 | 5.94 | 2.40 | 1.12 | 3100 |
| C-2062 SS | 1-1/2"x1/2" | 38.1x12.70 | 17.75 | 13.9 | 12.5 | 17.53 | 22.22 | 5.94 | 2.40 | 1.82 | 3100 |
| C-2060H SS | 1-1/2"x1/2" | 38.1x12.70 | 19.43 | 15.6 | 14.0 | 17.53 | 11.91 | 5.94 | 3.14 | 1.44 | 4000 |
| C-2062H SS | 1-1/2"x1/2" | 38.1x12.70 | 19.43 | 15.6 | 14.0 | 17.53 | 22.22 | 5.94 | 3.14 | 2.07 | 4000 |
| C-2080 SS | 2"x5/8" | 50.8x15.88 | 22.60 | 18.4 | 16.1 | 23.24 | 15.87 | 7.92 | 3.14 | 2.10 | 5000 |
| C-2082 SS | 2"x5/8" | 50.8x15.88 | 22.60 | 18.4 | 16.1 | 23.24 | 28.57 | 7.92 | 3.14 | 3.16 | 5000 |
