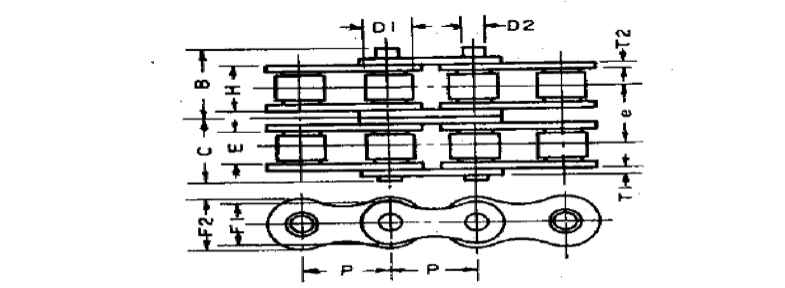

| DOUBLE STRAND | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | e | T1 | T2 | WT kg/m | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||||
| 35-2 | 3/8"x3/16" | 9.525x4.80 | 7.46 | 12.0 | 10.9 | 7.40 | 8.80 | 5.08 | 3.58 | 10.13 | 1.25 | 1.25 | 0.66 | 2200 |
| 40-2 | 1/2"x5/16" | 12.7x7.95 | 11.17 | 16.8 | 15.2 | 10.40 | 11.75 | 7.92 | 3.96 | 14.38 | 1.50 | 1.50 | 1.26 | 3600 |
| 50-2 | 5/8"x3/8" | 15.875x9.53 | 13.84 | 20.2 | 19.0 | 12.85 | 14.70 | 10.16 | 5.08 | 18.11 | 1.96 | 1.96 | 2.02 | 6000 |
| 60-2 | 3/4"x1/2" | 19.05x12.70 | 17.75 | 25.1 | 23.9 | 14.93 | 17.28 | 11.91 | 5.94 | 22.78 | 2.40 | 2.40 | 2.88 | 8400 |
| 60-2 CP | 3/4"x1/2" | 19.05x12.70 | 17.75 | 26.5 | 23.9 | 14.93 | 17.28 | 11.91 | 5.94 | 22.78 | 2.40 | 2.40 | 2.88 | 8400 |
| 60H-2 | 3/4"x1/2" | 19.05x12.70 | 19.43 | 28.3 | 27.0 | 14.93 | 17.28 | 11.91 | 5.94 | 26.11 | 3.14 | 3.14 | 3.50 | 10600 |
| 60H-2 CP | 3/4"x1/2" | 19.05x12.70 | 19.43 | 30.7 | 27.0 | 14.93 | 17.28 | 11.91 | 5.94 | 26.11 | 3.14 | 3.14 | 3.50 | 10600 |
| 80-2 | 1"x5/8" | 25.4x15.88 | 22.60 | 32.9 | 30.8 | 20.00 | 23.24 | 15.87 | 7.92 | 29.29 | 3.14 | 3.14 | 4.80 | 14800 |
| 80-2 CP | 1"x5/8" | 25.4x15.88 | 22.60 | 34.4 | 30.8 | 20.00 | 23.24 | 15.87 | 7.92 | 29.29 | 3.14 | 3.14 | 4.80 | 14800 |
| 80H-2 | 1"x5/8" | 25.4x15.88 | 24.28 | 36.3 | 34.2 | 20.00 | 23.24 | 15.87 | 7.92 | 32.59 | 3.96 | 3.96 | 6.54 | 18000 |
| 80H-2 CP | 1"x5/8" | 25.4x15.88 | 24.28 | 37.8 | 34.2 | 20.00 | 23.24 | 15.87 | 7.92 | 32.59 | 3.96 | 3.96 | 6.54 | 18000 |
| 100-2 | 1-1/4"x3/4" | 31.75x19.05 | 27.45 | 41.6 | 37.5 | 26.08 | 30.24 | 19.05 | 9.52 | 35.76 | 3.96 | 3.96 | 7.88 | 23000 |
| 100-2 CP | 1-1/4"x3/4" | 31.75x19.05 | 27.45 | 41.6 | 37.5 | 26.08 | 30.24 | 19.05 | 9.52 | 35.76 | 3.96 | 3.96 | 7.88 | 23000 |
| 120-2 | 1-1/2"x1" | 38.1x25.40 | 35.45 | 51.8 | 47.4 | 29.70 | 35.85 | 22.22 | 11.10 | 45.44 | 4.75 | 4.75 | 11.70 | 29000 |
| 120-2 CP | 1-1/2"x1" | 38.1x25.40 | 35.45 | 51.8 | 47.4 | 29.70 | 35.85 | 22.22 | 11.10 | 45.44 | 4.75 | 4.75 | 11.70 | 29000 |
| 140-2 | 1-3/4"x1" | 44.45x25.40 | 37.18 | 56.6 | 51.2 | 36.20 | 42.00 | 25.40 | 12.70 | 48.87 | 5.55 | 5.55 | 14.52 | 41000 |
| 140-2 CP | 1-3/4"x1" | 44.45x25.40 | 37.18 | 56.6 | 51.2 | 36.20 | 42.00 | 25.40 | 12.70 | 48.87 | 5.55 | 5.55 | 14.52 | 41000 |
