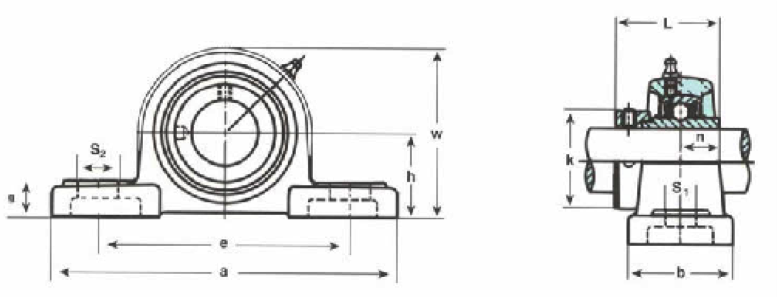

| SAP200-SERIES HIGH CENTER HEIGHT | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
| h | a | e | b | S2 | S1 | g | w | L | n | k | kg | lbs. | |||||
| SAP201-8G | 1/2 | 1-1/4 | 4-15/16 | 3-3/4 | 1-1/2 | 5/8 | 1/2 | 17/32 | 2-17/32 | 1.128 | 0.232 | 1-1/8 | 3/8 | SA201-8G | P203 | 0.57 | 1.39 |
| SAP202-10G | 5/8 | 1.155 | 1-1/4 | SA202-10G | 0.58 | 1.44 | |||||||||||
| SAP204-12G | 3/4 | 1-5/16 | 5 | 3-3/4 | 1-1/2 | 3/4 | 1/2 | 1/2 | 2-11/32 | 1.218 | 0.295 | 1-1/4 | 3/8 | SA204-12G | P204 | 0.65 | 1.43 |
| SAP205-14G | 7/8 | 1-7/16 | 5-1/2 | 4-1/8 | 1-1/2 | 3/4 | 1/2 | 1/2 | 2-25/32 | 1.218 | 0.295 | 1-1/2 | 3/8 | SA205-14G | P205 | 0.85 | 1.87 |
| SAP205-15G | 15/16 | SA205-15G | |||||||||||||||
| SAP205-16G | 1 | SA205-16G | |||||||||||||||
| SAP206-17G | 1-1/16 | 1-11/16 | 6-1/2 | 4-3/4 | 1-7/8 | 13/16 | 21/32 | 19/32 | 3-5/16 | 1.406 | 0.354 | 1-3/4 | 1/2 | SA206-17G | P206 | 1.40 | 3.09 |
| SAP206-18G | 1-1/8 | SA206-18G | |||||||||||||||
| SAP206-19G | 1-3/16 | SA206-19G | |||||||||||||||
| SAP206-20G | 1-1/4 | SA206-20G | |||||||||||||||
| SAP207-20G | 1-1/4 | 1-7/8 | 6-9/16 | 5 | 1-7/8 | 13/16 | 21/32 | 5/8 | 3-21/32 | 1.531 | 0.374 | 2-3/16 | 1/2 | SA207-20G | P207 | 1.68 | 3.70 |
| SAP207-21G | 1-5/16 | SA207-21G | |||||||||||||||
| SAP207-22G | 1-3/8 | SA207-22G | |||||||||||||||
| SAP207-23G | 1-7/16 | SA207-23G | |||||||||||||||
| SAP208-24G | 1-1/2 | 1-15/16 | 7-1/4 | 5-13/32 | 2-1/8 | 13/16 | 21/32 | 21/32 | 3-27/32 | 1.719 | 0.433 | 2-3/8 | 1/2 | SA208-24G | P208 | 2.12 | 4.67 |
| SAAK200-SERIES LOW CENTER HEIGHT | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
| h | a | e | b | S2 | S1 | g | w | L | n | k | kg | lbs. | |||||
| SAAK204-12G | 3/4 | 1-1/4 | 5-1/4 | 3-7/8 | 1-5/8 | 9/16 | 7/16 | 9/16 | 2-1/2 | 1.218 | 0.295 | 1-1/4 | 3/8 | SA204-12G | AK204 | 0.84 | 1.85 |
| SAAK205-14G | 7/8 | 1-5/16 | 5-1/2 | 4-1/8 | 1-3/4 | 9/16 | 7/16 | 5/8 | 2-11/16 | 1.218 | 0.295 | 1-1/2 | 3/8 | SA205-14G | AK205 | 0.99 | 2.18 |
| SAAK205-15G | 15/16 | SA205-15G | |||||||||||||||
| SAAK205-16G | 1 | SA205-16G | |||||||||||||||
| SAAK206-17G | 1-1/16 | 1-9/16 | 6/5-16 | 4-3/4 | 1-7/8 | 3/4 | 9/16 | 11/16 | 3-5/32 | 1.406 | 0.354 | 1-3/4 | 1/2 | SA206-17G | AK206 | 1.39 | 3.06 |
| SAAK206-18G | 1-1/8 | SA206-18G | |||||||||||||||
| SAAK206-19G | 1-3/16 | SA206-19G | |||||||||||||||
| SAAK206-20G | 1-1/4 | SA206-20G | |||||||||||||||
| SAAK207-20G | 1-1/4 | 1-13/16 | 6-9/16 | 5 | 1-7/8 | 3/4 | 9/16 | 3/4 | 3-5/8 | 1.531 | 0.374 | 2-3/16 | 1/2 | SA207-20G | AK207 | 1.79 | 3.95 |
| SAAK207-21G | 1-5/16 | SA207-21G | |||||||||||||||
| SAAK207-22G | 1-3/8 | SA207-22G | |||||||||||||||
| SAAK207-23G | 1-7/16 | SA207-23G | |||||||||||||||
| SAAK208-24G | 1-1/2 | 1-15/16 | 7-1/8 | 5-1/2 | 2-1/8 | 3/4 | 9/16 | 3/4 | 3-15/16 | 1.719 | 0.433 | 2-3/8 | 1/2 | SA208-24G | AK208 | 2.11 | 4.65 |
