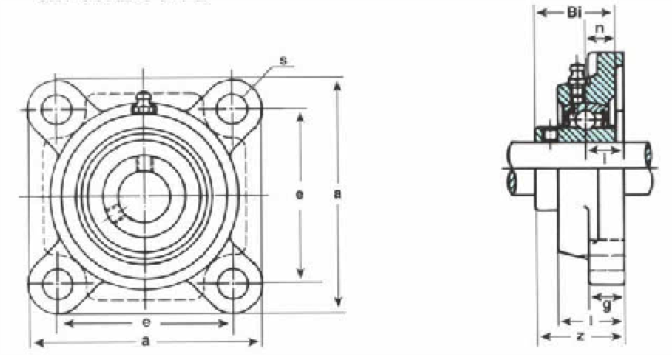

| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | e | i | g | I | s | z | Bi | n | kg | lbs. | |||||
| UCF201-8 | 1/2 | 3-3/8 | 2-33/64 | 19/32 | 15/32 | 1 | 1-5/32 | 1-5/16 | 1.2205 | 0.5000 | 3/8 | UC201-8 | F204 | 0.65 | 1.43 |
| UCF202-10 | 5/8 | UC202-10 | |||||||||||||
| UCF204-12 | 3/4 | UC204-12 | |||||||||||||
| UCF201 | 12mm | UC201 | |||||||||||||
| UCF202 | 15mm | UC202 | |||||||||||||
| UCF203 | 17mm | UC203 | |||||||||||||
| UCF204 | 20mm | UC204 | |||||||||||||
| UCF205-14 | 7/8 | 3-3/4 | 2-3/4 | 5/8 | 9/16 | 1-1/16 | 15/32 | 1-13/32 | 1.3386 | 0.5630 | 3/8 | UC205-14 | F205 | 0.85 | 1.87 |
| UCF205-15 | 15/16 | UC205-15 | |||||||||||||
| UCF205-16 | 1 | UC205-16 | |||||||||||||
| UCF205 | 25mm | UC205 | |||||||||||||
| UCF206-17 | 1-1/16 | 4-1/4 | 3-17/64 | 45/64 | 9/16 | 1-7/32 | 15/32 | 1-19/32 | 1.5000 | 0.6260 | 3/8 | UC206-17 | F206 | 1.15 | 2.54 |
| UCF206-18 | 1-1/8 | UC206-18 | |||||||||||||
| UCF206-19 | 1-3/16 | UC206-19 | |||||||||||||
| UCF206-20 | 1-1/4 | UC206-20 | |||||||||||||
| UCF206 | 30mm | UC206 | |||||||||||||
| UCF207-20 | 1-1/4 | 4-19/32 | 3-5/8 | 3/4 | 5/8 | 1-11/32 | 35/64 | 1-3/4 | 1.6890 | 0.6890 | 7/16 | UC207-20 | F207 | 1.60 | 3.53 |
| UCF207-21 | 1-5/16 | UC207-21 | |||||||||||||
| UCF207-22 | 1-3/8 | UC207-22 | |||||||||||||
| UCF207-23 | 1-7/16 | UC207-23 | |||||||||||||
| UCF207 | 35mm | UC207 | |||||||||||||
| UCF208-24 | 1-1/2 | 5-1/8 | 4-1/64 | 53/64 | 5/8 | 1-13/32 | 5/8 | 2-1/64 | 1.9370 | 0.7480 | 1/2 | UC208-24 | F208 | 2.05 | 4.52 |
| UCF208-25 | 1-9/16 | UC208-25 | |||||||||||||
| UCF208 | 40mm | UC208 | |||||||||||||
| UCF209-26 | 1-5/8 | 5-13/32 | 4-9/64 | 55/64 | 23/32 | 1-1/2 | 5/8 | 2-1/16 | 1.9370 | 0.7480 | 1/2 | UC209-26 | F209 | 2.38 | 5.25 |
| UCF209-27 | 1-11/16 | UC209-27 | |||||||||||||
| UCF209-28 | 1-3/4 | UC209-28 | |||||||||||||
| UCF209 | 45mm | UC209 | |||||||||||||
| UCF210-30 | 1-7/8 | 5-5/8 | 4-3/8 | 55/64 | 23/32 | 1-9/16 | 5/8 | 2-5/32 | 2.0315 | 0.7480 | 1/2 | UC210-30 | F210 | 2.50 | 5.51 |
| UCF210-31 | 1-15/16 | UC210-31 | |||||||||||||
| UCF210 | 50mm | UC210 | |||||||||||||
| UCF211-32 | 2 | 6-3/8 | 5-1/8 | 63/64 | 25/32 | 1-11/16 | 3/4 | 2-5/16 | 2.1890 | 0.8740 | 5/8 | UC211-32 | F211 | 3.60 | 7.94 |
| UCF211-34 | 2-1/8 | UC211-34 | |||||||||||||
| UCF211-35 | 2-3/16 | UC211-35 | |||||||||||||
| UCF211 | 55mm | UC211 | |||||||||||||
| UCF212-36 | 2-1/4 | 6-7/8 | 5-5/8 | 1-9/16 | 25/32 | 1-7/8 | 3/4 | 2-23/32 | 2.5630 | 1.0000 | 5/8 | UC212-36 | F212 | 4.90 | 10.8 |
| UCF212-38 | 2-3/8 | UC212-38 | |||||||||||||
| UCF212-39 | 2-7/16 | UC212-39 | |||||||||||||
| UCF212 | 60mm | UC212 | |||||||||||||
| UCF213-40 | 2-1/2 | 7-3/8 | 5-55/64 | 1-3/16 | 25/32 | 1-31/32 | 3/4 | 2-3/4 | 2.5630 | 1.000 | 5/8 | UC213-40 | F213 | 5.90 | 13.00 |
| UCF213 | 65mm | UC213 | |||||||||||||
| UCF214-44 | 2-3/4 | 7-19/32 | 5-63/64 | 1-7/32 | 15/64 | 2-1/8 | 3/4 | 2-31/32 | 2.9370 | 1.1890 | 5/8 | UC214-44 | F214 | 6.30 | 13.9 |
| UCF214 | 70mm | UC214 | |||||||||||||
| UCF215-47 | 2-15/16 | 7-7/8 | 6-17/64 | 1-11/32 | 15/16 | 2-7/32 | 3/4 | 3-3/32 | 3.0630 | 1.3110 | 5/8 | UC215-47 | F215 | 6.80 | 15.0 |
| UCF215-48 | 3 | UC215-48 | |||||||||||||
| UCF215 | 75mm | UC215 | |||||||||||||
