RLS&RMS

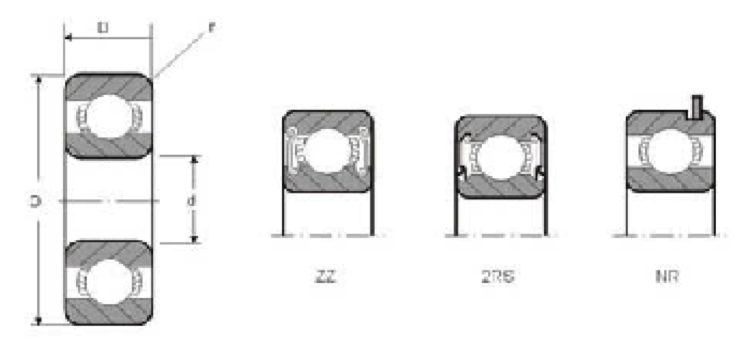

Bearing No. Boundary Dimensions             Basic Load Rating lbs   Limiting Speed rpm   Weight lbs
  d   D   B   r Dynamic Cr Static Cor Grease ZZ,2RS Oil open
  inch mm inch mm inch mm inch
RLS 4 1/2 12.700 1-5/16 33.338 3/8 9.525 1/32 520 380 20000 24000 0.03
RLS 5 5/8 15.875 1-9/16 39.688 7/16 11.112 1/22 720 430 17000 21000 0.06
RLS 6 3/4 19.050 1-7/8 47.625 9/16 14.288 1/16 1000 630 14000 17000 0.11
RLS 7 7/8 22.225 2 50.800 9/16 14.288 1/16 1200 760 13000 16000 0.13
RLS 8 1 25.400 2-1/4 57.150 5/8 15.875 1/16 1400 970 11500 14000 0.17
RLS 9 1-1/8 28.575 2-1/2 63.500 5/8 15.875 1/16 1530 1020 10000 12500 0.21
RLS 10 1-1/4 31.750 2-3/4 69.850 11/16 17.462. 1/16 1830 1230 9200 11500 0.28
RLS 11 1-3/8 34.925 3 76.200 11/16 17.472 1/16 2010 1390 8400 10500 0.37
RLS 12 1-1/2 38.100 3-1/4 82.550 3/4 19.050 1/32 2400 1700 7800 9500 0.43
RMS Series
Bearing No. Boundary Dimensions             Basic Load Rating lbs   Limiting Speed rpm   Weight lbs
  d   D   B   r Dynamic Cr Static Cor Grease ZZ,2RS Oil open
  inch mm inch mm inch mm inch
RMS 4 1/2 12.700 1-5/8 41.275 5/8 15.875 1/16 900 570 17000 21000 0.10
RMS 5 5/8 15.875 1-13/16 46.038 5/8 15.875 1/16 1060 630 14000 17000 0.11
RMS 6 3/4 19.050 2 50.800 11/16 17.462. 1/16 1240 850 13000 16000 0.16
RMS 7 7/8 22.225 2-1/4 57.150 11/16 17.462 1/16 1450 930 12000 15000 0.2
RMS 8 1 25.400 2-1/2 63.500 3/4 19.050 3/32 1860 1240 10000 12000 0.25
RMS 9 1-1/8 28.575 2-13/16 71.438 13/16 20.638 3/32 1810 1230 9600 12000 0.38
RMS 10 1-1/4 31.750 3-1/8 79.375 7/8 22.225 3/32 1610 1610 8400 10500 0.51
