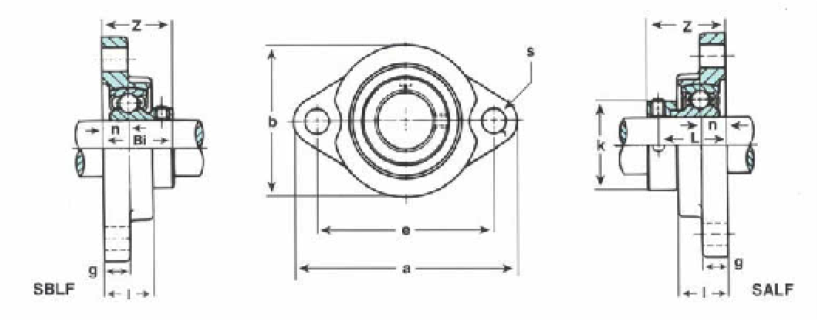

| SBLF200-SERIES SET SCREW TYPE | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
| a | e | g | I | s | b | z | Bi | n | kg | lbs. | ||||||
| SBLF201-8 | 1/2 | 3-3/16 | 2-1/2 | 3/8 | 23/32 | 5/16 | 2-7/32 | 1 | 0.866 | 0.236 | 1/4 | SB201-8 | LF203 | 0.27 | 0.60 | |
| SBLF202-10 | 5/8 | SB202-10 | ||||||||||||||
| SBLF204-12 | 3/4 | 3-17/32 | 2-13/16 | 7/16 | 25/32 | 25/64 | 2-13/32 | 1-5/32 | 0.984 | 0.275 | 5/16 | SB204-12 | LF204 | 0.30 | 0.66 | |
| SBLF205-14 | 7/8 | 3-3/4 | 2-63/64 | 7/16 | 25/32 | 25/64 | 2-17/32 | 1-3/16 | 1.062 | 0.295 | 5/16 | SB205-14 | LF205 | 0.39 | 0.86 | |
| SBLF205-15 | 15/16 | SB205-15 | ||||||||||||||
| SBLF205-16 | 1 | SB205-16 | ||||||||||||||
| SBLF206-17 | 1-1/16 | 4-7/16 | 3-9/16 | 15/32 | 7/8 | 15/32 | 3 | 1-11/32 | 1.181 | 0.315 | 3/8 | SB206-17 | LF206 | 0.56 | 1.23 | |
| SBLF206-18 | 1-1/8 | SB206-18 | ||||||||||||||
| SBLF206-19 | 1-3/16 | SB206-19 | ||||||||||||||
| SBLF206-20 | 1-1/4 | SB206-20 | ||||||||||||||
| SBLF207-20 | 1-1/4 | 4-13/16 | 3-15/16 | 33/64 | 15/16 | 15/32 | 3-1/2 | 1-7/16 | 1.259 | 0.335 | 3/5 | SB207-20 | LF207 | 1.77 | 1.70 | |
| SBLF207-21 | 1-5/16 | SB207-21 | ||||||||||||||
| SBLF207-22 | 1-3/8 | SB207-22 | ||||||||||||||
| SBLF207-23 | 1-7/16 | SB207-23 | ||||||||||||||
| SALF200-SERIES ECCENTRIC LOCKING COLLAR TYPE | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
| a | e | g | I | s | b | z | L | n | k | kg | lbs. | |||||
| SALF201-8 | 1/2 | 3-3/16 | 2-1/2 | 3/8 | 23/32 | 5/16 | 2-7/32 | 1-1/4 | 1.125 | 0.256 | 1-1/8 | 1/4 | SA201-8 | LF203 | 0.30 | 0.66 |
| SALF202-10 | 5/8 | SA202-10 | ||||||||||||||
| SALF204-12 | 3/4 | 3-17/32 | 2-13/16 | 7/16 | 25/32 | 25/64 | 2-13/32 | 1-3/8 | 1.218 | 0.295 | 1-1/4 | 5/16 | SA204-12 | LF204 | 0.34 | 0.75 |
| SALF205-14 | 7/8 | 3-3/4 | 2-63/64 | 7/16 | 25/32 | 25/64 | 2-17/32 | 1-3/8 | 1.218 | 0.295 | 1-1/2 | 5/16 | SA205-14 | LF205 | 0.44 | 0.97 |
| SALF205-15 | 15/16 | SA205-15 | ||||||||||||||
| SALF205-16 | 1 | SA205-16 | ||||||||||||||
| SALF206-17 | 1-1/16 | 4-7/16 | 3-9/16 | 15/32 | 7/8 | 15/32 | 3 | 1-17/32 | 1.406 | 0.354 | 1-3/4 | 3/8 | SA206-17 | LF206 | 0.64 | 1.41 |
| SALF206-18 | 1-1/8 | SA206-18 | ||||||||||||||
| SALF206-19 | 1-3/16 | SA206-19 | ||||||||||||||
| SALF206-20 | 1-1/4 | SA206-20 | ||||||||||||||
| SALF207-20 | 1-1/4 | 4-13/16 | 3-15/16 | 33/64 | 15/16 | 15/32 | 3-1/2 | 1-11/16 | 1.531 | 0.374 | 2-3/16 | 3/8 | SA207-20 | LF207 | 0.92 | 2.03 |
| SALF207-21 | 1-5/16 | SA207-21 | ||||||||||||||
| SALF207-22 | 1-3/8 | SA207-22 | ||||||||||||||
| SALF207-23 | 1-7/16 | SA207-23 | ||||||||||||||
