Series M6200

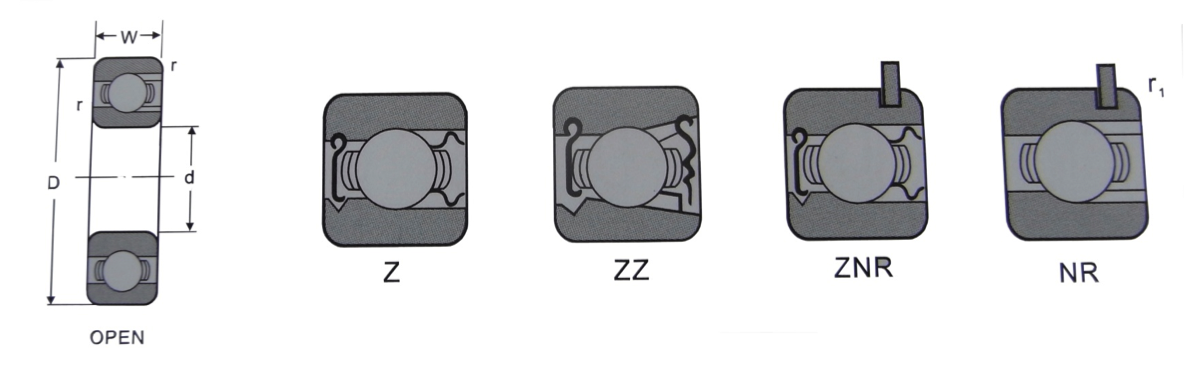

Bearing No. Bore d   Outer Diameter D   Width W   Radius r   r   Basic Load Rating lbs   Weight lbs
  mm inch mm inch mm inch mm inch mm inch Dynamic Cr Static Cor
M6205 25 .9843 52 2.0472 15 .5906 1.5 .059 0.5 .020 3800 2360 .312
M6206 30 1.1811 62 2.4409 16 .6229 1.5 .059 0.5 .020 5600 3650 .471
M6207 35 1.3780 72 2.8346 17 .6693 2 .079 0.5 .020 7400 4950 .700
M6208 40 1.5748 80 3.1496 18 .7087 2 .079 0.5 .020 8800 6250 .880
M6209 45 1.7717 85 3.3465 19 .7480 2 .079 0.5 .020 9900 7150 1.00
M6210 50 1.9685 90 3.5433 20 .7874 2 .079 0.5 .020 10300 7850 1.10
M6211 55 2.1654 100 3.9370 21 .8268 2.5 .098 0.5 .020 12800 9850 1.50
M6212 60 2.3622 110 4.3307 22 .8661 2.5 .098 0.5 .020 15500 12200 1.90
M6213 65 2.5591 120 4.7244 23 .9055 2.5 .098 0.5 .020 16900 13500 2.40
M6214 70 2.7559 125 4.9213 24 .9449 2.5 .098 0.5 .020 18300 14900 2.60
M6215 75 2.9528 130 5.1181 25 .9843 2.5 .098 0.5 .020 19100 16100 2.79
M6216 80 3.1496 140 5.5118 26 1.0236 3 .118 0.5 .020 22400 19100 3.50
M6217 85 3.3465 150 5.9055 28 1.1024 3 .118 0.5 .020 24000 20800 4.49
M6218 90 3.5433 160 6.2992 30 1.1811 3 .118 0.5 .020 29500 25700 5.50
M6219 95 3.7402 170 6.6929 32 1.2598 3.5 .138 0.5 .020 32000 27600 6.82
M6220 100 3.9370 180 7.0866 34 1.3386 3.5 .138 0.5 .020 36000 31500 8.03
M6221 105 4.1339 190 7.4803 36 1.4173 3.5 .138 0.5 .020 39000 35500 9.72
M6222 110 4.3307 200 7.8740 38 1.4961 3.5 .138 0.5 .020 42500 39500 11.30
Series M6300
Bearing No. Bore d   Outer Diameter D   Width W   Radius r   r   Basic Load Rating lbs   Weight lbs
  mm inch mm inch mm inch mm inch mm inch Dynamic Cr Static Cor
M6304 20 .7874 52 2.0472 15 .5906 2 .079 0.5 .020 4550 2530 .359
M6305 25 .9843 62 2.4409 17 .6693 2 .079 0.5 .020 6050 3500 .568
M6306 30 1.1811 72 2.8346 19 .7480 2 .079 0.5 .020 7400 4650 .858
M6307 35 1.3780 80 3.1496 21 .8268 2.5 .098 0.5 .020 9800 6450 1.10
M6308 40 1.5748 90 3.5433 23 .9055 2.5 .098 0.5 .020 12300 8050 1.50
M6309 45 1.7717 100 3.9370 25 .9843 2.5 .098 0.5 .020 14700 9900 2.10
M6310 50 1.9685 110 4.3307 27 1.0630 3 .118 0.5 .020 17200 11800 2.68
M6311 55 2.1654 120 4.7244 29 1.1417 3 .118 0.5 .020 21100 15200 3.41
M6312 60 2.3622 130 5.1181 31 1.2205 3.5 .138 0.5 .020 24100 17600 4.22
M6313 65 2.5591 140 5.5118 33 1.2992 3.5 .138 0.5 .020 27300 20200 5.19
M6314 70 2.7559 150 5.9055 35 1.3780 3.5 .138 0.5 .020 30500 23000 6.49
M6315 75 2.9528 160 6.2992 37 1.4567 3.5 .138 0.5 .020 33500 26000 7.92
M6316 80 3.1496 170 6.6929 39 1.5354 3.5 .138 0.5 .020 36000 29200 8.69
M6317 85 3.3465 180 7.0866 41 1.6142 4 .157 0.5 .020 39000 32500 10.30
M6318 90 3.5433 190 7.4803 43 1.6929 4 .157 0.5 .020 42000 36000 13.00
M6319 95 3.7402 200 7.8740 45 1.7717 4 .157 0.5 .020 45000 40000 15.00
M6320 100 3.9370 215 8.4646 47 1.8504 4 .157     51000 47500 18.30
M6321 105 4.1339 225 8.8583 49 1.9291 4 .157     54000 52000 20.80
M6322 110 4.3307 240 9.4488 50 1.9685 4 .157     60500 60500 24.3
