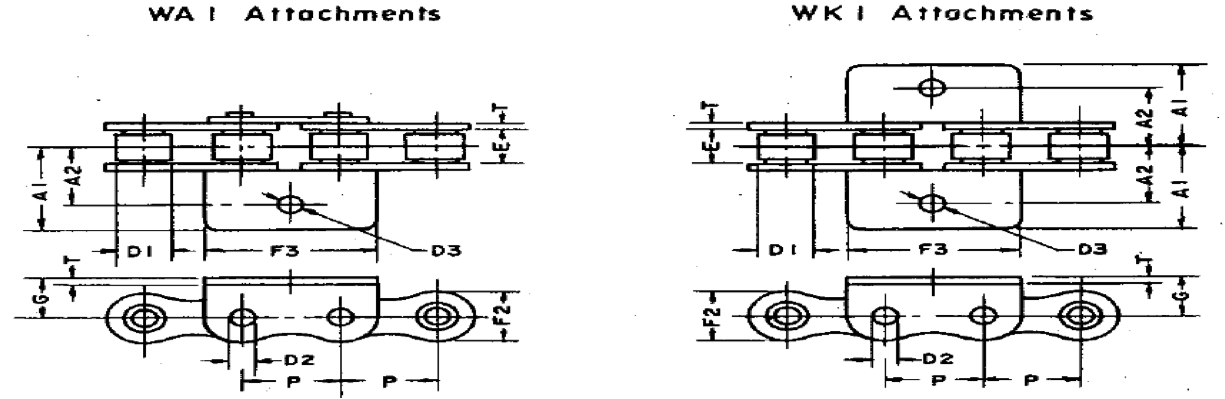

| WA1 Attachments | WK1 Attachments | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F2 | D1 | D2 | A1 | A2 | F3 | D3 | G | T | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| 35 | 3/8"x3/16" | 9.525x4.80 | 8.80 | 5.08 | 3.58 | 14.29 | 9.52 | 18.33 | 2.78 | 6.35 | 1.25 | 1050 |
| 40 | 1/2"x5/16" | 12.7x7.95 | 11.75 | 7.92 | 3.96 | 17.46 | 12.70 | 23.10 | 3.57 | 7.92 | 1.50 | 1800 |
| 50 | 5/8"x3/8" | 15.875x9.53 | 14.70 | 10.16 | 5.08 | 24.60 | 15.88 | 28.72 | 5.16 | 10.31 | 1.96 | 3000 |
| 60 | 3/4"x1/2" | 19.05x12.70 | 17.28 | 11.91 | 5.94 | 26.99 | 19.05 | 36.25 | 5.16 | 11.91 | 2.40 | 4200 |
| 80 | 1"x5/8" | 25.4x15.88 | 23.24 | 15.87 | 7.92 | 35.32 | 25.40 | 48.64 | 6.75 | 15.88 | 3.14 | 7400 |

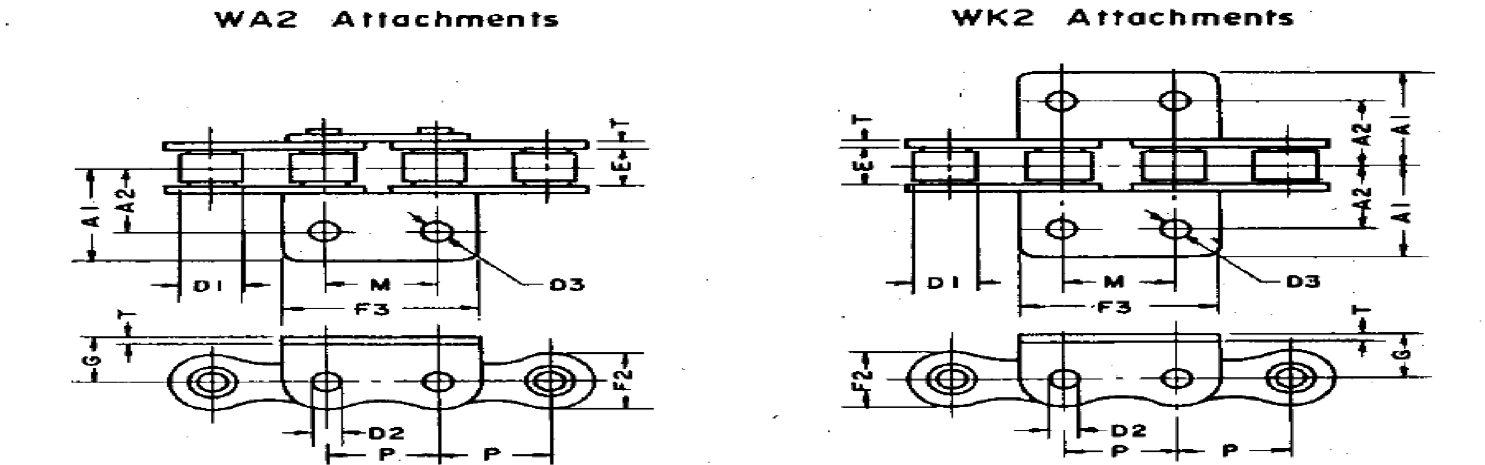

| WA2 Attachments | WK2 Attachments | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F2 | D1 | D2 | A1 | A2 | F3 | D3 | G | M | T | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| 35 | 3/8"x3/16" | 9.525x4.80 | 8.80 | 5.08 | 3.58 | 14.29 | 9.52 | 18.33 | 2.78 | 6.35 | 9.52 | 1.25 | 1050 |
| 40 | 1/2"x5/16" | 12.7x7.95 | 11.75 | 7.92 | 3.96 | 17.46 | 12.70 | 23.10 | 3.57 | 7.92 | 12.70 | 1.50 | 1800 |
| 50 | 5/8"x3/8" | 15.875x9.53 | 14.70 | 10.16 | 5.08 | 24.60 | 15.88 | 28.72 | 5.16 | 10.31 | 15.88 | 1.96 | 3000 |
| 60 | 3/4"x1/2" | 19.05x12.70 | 17.28 | 11.91 | 5.94 | 26.99 | 19.05 | 36.25 | 5.16 | 11.91 | 19.05 | 2.40 | 4200 |
| 80 | 1"x5/8" | 25.4x15.88 | 23.24 | 15.87 | 7.92 | 35.32 | 25.40 | 48.64 | 6.75 | 15.88 | 25.40 | 3.14 | 7400 |
