SUCTF

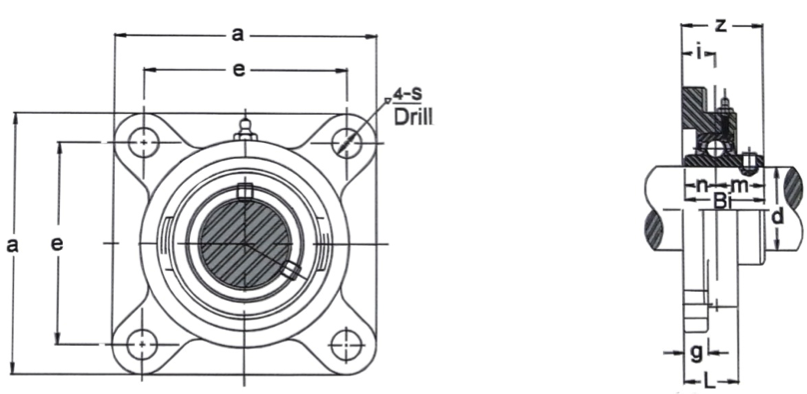

SUCTF-SERIES 4-BOLT FLANGE UNITS
Unit NO. Shaft Dia. (Inch) Dimensions(inch) Bolt size inch Bearing No. Housing No. Weight lbs.
a e i g L S z Bi n m
SUCTF204-12 3/4 3-3/8 2-1/2 23/32 17/32 1-3/32 7/16 1-7/16 1.2205 0.5000 0.7205 3/8 SUC204-12 TF204 0.7
SUCTF205-16 1 3-3/4 2-3/4 43/64 9/16 1-3/32 7/16 1-7/16 1.3386 0.5630 0.7756 3/8 SUC205-16 TF205 0.8
SUCTF206-19 1-3/16 4-1/4 3-1/4 3/4 9/16 1-1/4 7/16 1-5/8 1.5000 0.6260 0.8740 3/8 SUC206-19 TF206 1.1
SUCTF206-20 1-1/4                       SUC206-20
SUCTF207-20 1-1/4 4-21/32 3-5/8 27/32 5/8 1-3/8 33/64 1-27/32 1.6890 0.6890 1.0000 7/16 SUC207-20 TF207 1.7
SUCTF207-22 1-3/8                       SUC207-22
SUCTF207-23 1-7/16                       SUC207-23
SUCTF208-24 1-1/2 5-1/8 4 29/32 21/32 1-15/32 35/64 2-3/32 1.9370 0.7480 1.1890 1/2 SUC208-24 TF208 2.2

SUCTFL-SERIES 2-BOLT FLANGE UNITS
Unit NO. Shaft Dia. (Inch) Dimensions(inch) Bolt size inch Bearing No. Housing No. Weight lbs.
a e i g L S b z Bi n m
SUCTFL204-12 3/4 4-7/16 3-17/32 39/64 7/16 1-1/32 7/16 2-17/32 1-21/64 1.2205 0.5000 0.7205 3/8 SUC204-12 TFL204 0.5
SUCTFL205-16 1 5-1/8 3-57/64 43/64 17/32 1-5/32 7/16 2-3/4 1-7/16 1.3386 0.5630 0.7756 3/8 SUC205-16 TFL205 0.7
SUCTFL206-19 1-3/16 5-13/16 4-19/32 3/4 17/32 1-7/32 7/16 3-5/32 1-39/64 1.5000 0.6260 0.8740 3/8 SUC206-19 TFL206 1.1
SUCTFL206-20 1-1/4                         SUC206-20
SUCTFL207-20 1-1/4 6-15/32 5-1/8 23/32 5/8 1-9/32 33/64 3-17/32 1-23/32 1.6890 0.6890 1.0000 1/2 SUC207-20 TFL207 1.5
SUCTFL207-22 1-3/8                         SUC207-22
SUCTFL207-23 1-7/16                         SUC207-23
SUCTFL208-24 1-1/2 6-7/8 5-21/32 27/32 25/32 1-15/32 35/64 3-15/16 2-3/64 1.9370 0.7480 1.1890 1/2 SUC208-24 TFL208 2.0
