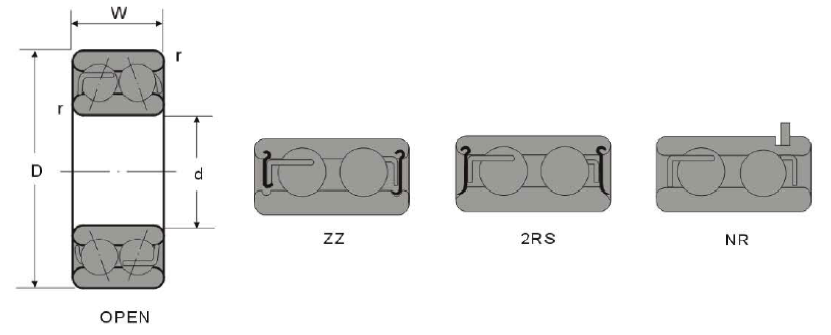

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | ||
| 5300 | 10 | .3937 | 35 | 1.3780 | 19.050 | 3/4 | .7500 | 0.6 | 1731 | 1224 | 0.22 |
| 5301 | 12 | .4724 | 37 | 1.4567 | 19.050 | 3/4 | .7500 | 1.1 | 1996 | 1389 | 0.23 |
| 5302 | 15 | .5906 | 42 | 1.6535 | 19.050 | 3/4 | .7500 | 1.5 | 3850 | 2260 | 0.38 |
| 5303 | 17 | .6693 | 47 | 1.8504 | 22.225 | 7/8 | .8750 | 1.5 | 4600 | 2720 | 0.49 |
| 5304 | 20 | .7874 | 52 | 2.0472 | 22.225 | 7/8 | .8750 | 2.0 | 4650 | 2850 | 0.51 |
| W5304 | 20 | .7874 | 52 | 2.4409 | 25.400 | 1 | 1.0000 | 2.0 | 4650 | 2850 | 0.54 |
| 5305 | 25 | .9843 | 62 | 2.4409 | 25.400 | 1 | 1.0000 | 2.0 | 6850 | 4600 | 0.75 |
| W5305 | 25 | .9843 | 62 | 2.8346 | 28.575 | 1-1/8 | 1.1250 | 2.0 | 6850 | 4600 | 0.89 |
| 5306 | 30 | 1.1811 | 72 | 2.8346 | 30.163 | 1-3/16 | 1.1875 | 2.0 | 8900 | 6200 | 1.13 |
| W5306 | 30 | 1.1811 | 72 | 3.1496 | 33.338 | 1-5/16 | 1.3125 | 2.0 | 8900 | 6200 | 1.41 |
| 5307 | 35 | 1.3780 | 80 | 3.1496 | 34.925 | 1-3/8 | 1.3750 | 2.5 | 11100 | 7850 | 1.74 |
| W5307 | 35 | 1.3780 | 80 | 3.5433 | 38.100 | 1-1/2 | 1.5000 | 2.5 | 11100 | 7850 | 1.89 |
| 5308 | 40 | 1.5748 | 90 | 3.5433 | 36.513 | 1-7/16 | 1.4375 | 2.5 | 13600 | 9850 | 2.32 |
| 5309 | 45 | 1.7717 | 100 | 3.9370 | 39.688 | 1-9/16 | 1.5625 | 2.5 | 16300 | 12100 | 3.10 |
| 5310 | 50 | 1.9685 | 110 | 4.3307 | 44.450 | 1-3/4 | 1.7500 | 3.0 | 19200 | 14500 | 4.00 |
| 5311 | 55 | 2.1654 | 120 | 4.7244 | 49.213 | 1-15/16 | 1.9375 | 3.0 | 23900 | 18500 | 5.11 |
| 5312 | 60 | 2.3622 | 130 | 5.1181 | 53.975 | 2-1/8 | 2.1250 | 3.5 | 27300 | 21400 | 6.72 |
| 5313 | 65 | 2.5591 | 140 | 5.5118 | 58.738 | 2-5/16 | 2.3125 | 3.5 | 31000 | 24600 | 8.60 |
| 5314 | 70 | 2.7559 | 150 | 5.9055 | 63.500 | 2-1/2 | 2.5000 | 3.5 | 35000 | 28000 | 10.80 |
| 5315 | 75 | 2.9528 | 160 | 6.2992 | 68.263 | 2-11/16 | 2.6875 | 3.5 | 38000 | 31500 | 12.10 |
| 5316 | 80 | 3.1496 | 170 | 6.6929 | 68.263 | 2-11/16 | 2.6875 | 3.5 | 42000 | 34500 | 15 |
