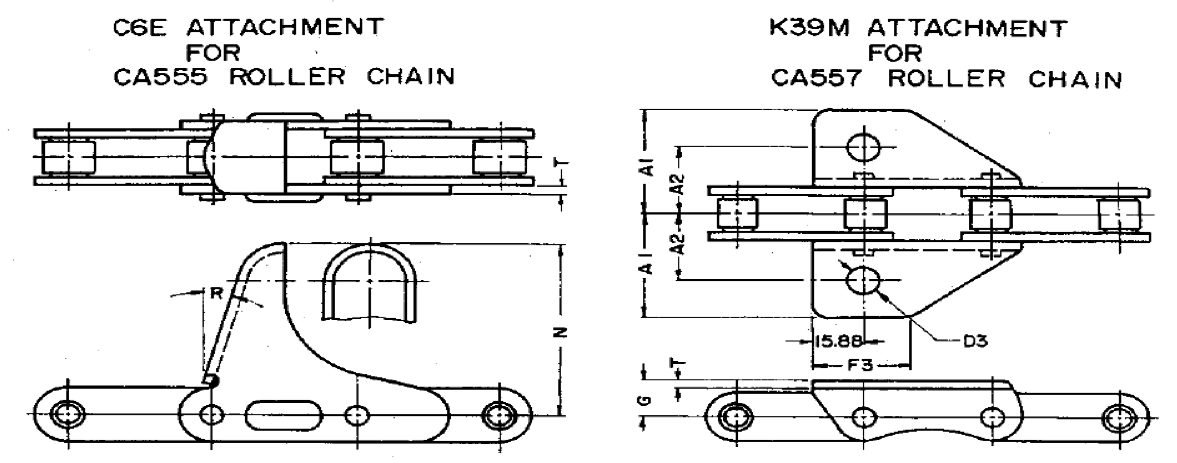

| Dimensions-mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Attachment | Chain No. | R | N | A1 | A2 | F3 | D3 | G | T |
| C6E | CA555 | 15ยก | 63.50 | 3.14 | |||||
| K39M | CA557 | 31.75 | 21.42 | 29.50 | 9.78 | 12.70 | 3.14 |

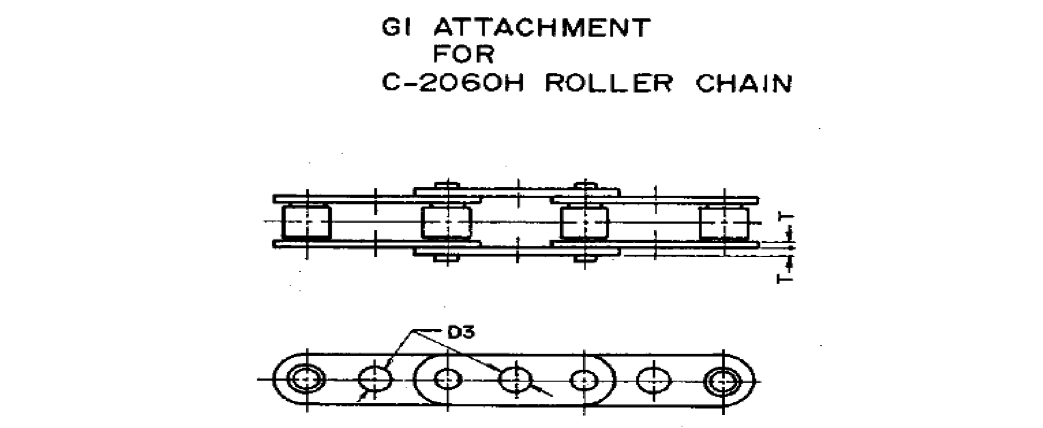

| Dimensions-mm | ||||
|---|---|---|---|---|
| Attachment | Type | Chain No. | D3 | T |
| G1 | A | C-2060H | 6.45 | 3.14 |
| G1 | B | C-2060H | 7.99 | 3.14 |
| G1 | C | C-2060H | 8.05 | 3.14 |
| G1 | D | C-2060H | 8.38 | 3.14 |
| G1 | E | C-2060H | 9.58 | 3.14 |

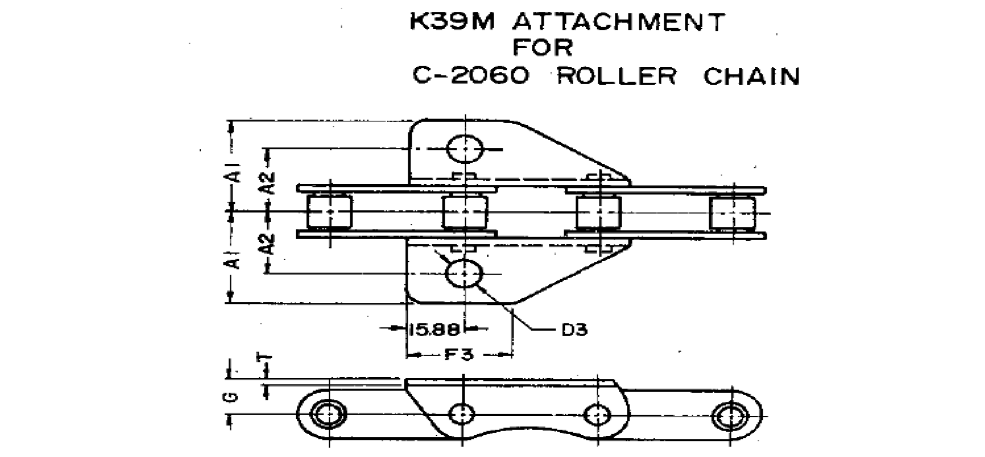

| Dimensions-mm | |||||||
|---|---|---|---|---|---|---|---|
| Attachment | Chain No. | A1 | A2 | F3 | D3 | G | T |
| K39M | C-2060 | 31.75 | 21.42 | 29.50 | 9.78 | 12.70 | 2.40 |
