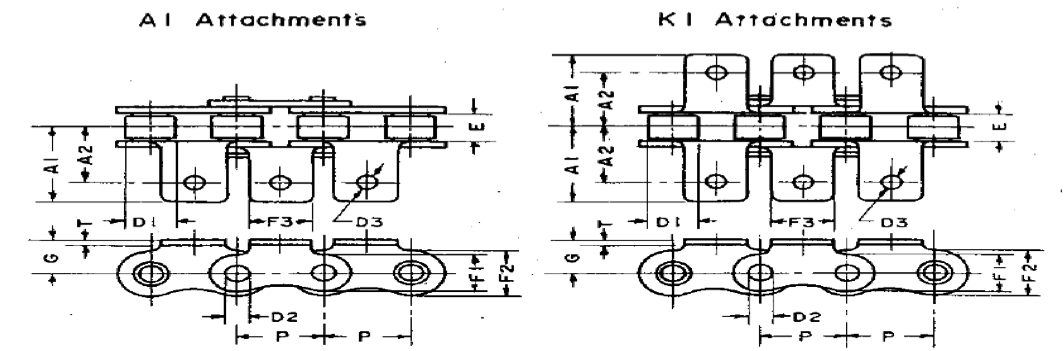

| A1 Attachments | K1 Attachments | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F1 | F2 | D1 | D2 | A1 | A2 | F3 | D3 | G | T | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| 35 | 3/8"x3/16" | 9.525x4.80 | 7.40 | 8.80 | 5.08 | 3.58 | 13.10 | 9.52 | 7.94 | 2.78 | 6.35 | 1.25 | 1050 |
| 41 | 1/2"x1/4" | 12.7x6.40 | 8.30 | 9.80 | 7.77 | 3.58 | 16.27 | 11.90 | 9.52 | 3.57 | 7.14 | 1.25 | 1250 |
| 40 | 1/2"x5/16" | 12.7x7.95 | 10.40 | 11.75 | 7.92 | 3.96 | 17.47 | 12.70 | 9.52 | 3.57 | 7.92 | 1.50 | 1800 |
| 50 | 5/8"x3/8" | 15.875x9.53 | 12.85 | 14.70 | 10.16 | 5.08 | 24.60 | 15.88 | 14.28 | 5.16 | 10.31 | 1.96 | 3000 |
| 60 | 3/4"x1/2" | 19.05x12.70 | 14.93 | 17.28 | 11.91 | 5.94 | 27.78 | 19.05 | 15.88 | 5.16 | 11.91 | 2.40 | 4200 |
| 80 | 1"x5/8" | 25.4x15.88 | 20.00 | 23.24 | 15.87 | 7.92 | 39.29 | 25.40 | 19.05 | 6.75 | 15.88 | 3.14 | 7400 |
| 100 | 1-1/4"x3/4" | 31.75x19.05 | 26.08 | 30.24 | 19.05 | 9.52 | 43.00 | 31.75 | 25.40 | 8.33 | 19.84 | 3.96 | 11500 |
| 120 | 1-1/2"x1" | 38.1x25.40 | 29.70 | 35.85 | 22.22 | 11.10 | 53.00 | 38.10 | 28.58 | 9.92 | 23.01 | 4.75 | 14500 |

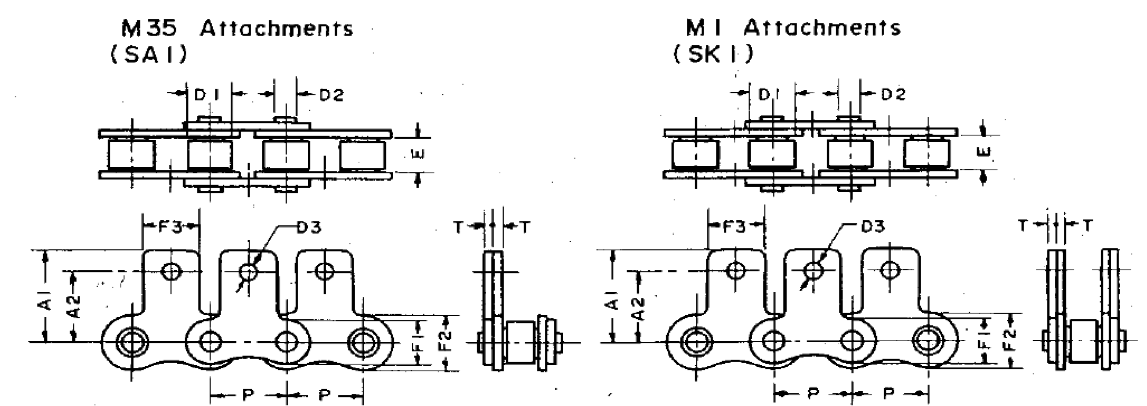

| M35 Attachments | M1 Attachments | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | F1 | F2 | D1 | D2 | A1 | A2 | F3 | D3 | T | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| 35 | 3/8"x3/16" | 9.525x4.80 | 7.40 | 8.80 | 5.08 | 3.58 | 13.49 | 9.52 | 7.94 | 2.78 | 1.25 | 1050 |
| 41 | 1/2"x1/4" | 12.7x6.40 | 8.30 | 9.80 | 7.77 | 3.58 | 16.46 | 12.70 | 9.52 | 3.57 | 1.25 | 1250 |
| 40 | 1/2"x5/16" | 12.7x7.95 | 10.40 | 11.75 | 7.92 | 3.96 | 17.46 | 12.70 | 9.52 | 3.57 | 1.50 | 1800 |
| 50 | 5/8"x3/8" | 15.875x9.53 | 12.85 | 14.70 | 10.16 | 5.08 | 24.45 | 15.88 | 14.28 | 5.16 | 1.96 | 3000 |
| 60 | 3/4"x1/2" | 19.05x12.70 | 14.93 | 17.28 | 11.91 | 5.94 | 26.19 | 18.26 | 15.88 | 5.16 | 2.40 | 4200 |
| 80 | 1"x5/8" | 25.4x15.88 | 20.00 | 23.24 | 15.87 | 7.92 | 38.31 | 24.61 | 19.05 | 6.75 | 3.14 | 7400 |
| 100 | 1-1/4"x3/4" | 31.75x19.05 | 26.08 | 30.24 | 19.05 | 9.52 | 41.86 | 31.75 | 25.40 | 8.33 | 3.96 | 11500 |
| 120 | 1-1/2"x1" | 38.1x25.40 | 29.70 | 35.85 | 22.22 | 11.10 | 49.73 | 36.33 | 28.58 | 9.92 | 4.75 | 14500 |
