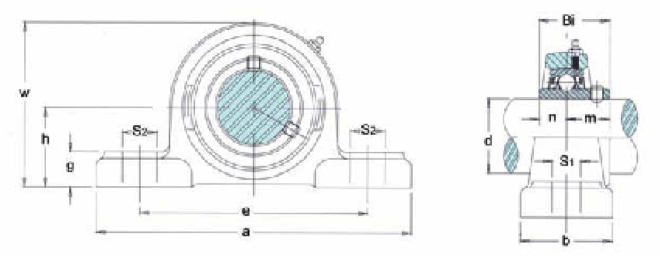

| SUCSP-SERIES PILLOW BLOCKS | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight(lbs.) | ||||||||||
| d | h | a | e | b | S2 | S1 | g | w | Bi | n | m | |||||
| SUCSP204-12 | 3/4 | 1-5/16 | 5 | 3-3/4 | 1-1/2 | 11/16 | 7/16 | 19/32 | 2-9/16 | 1.2205 | 0.5000 | 0.7205 | 3/8 | SUC204-12 | SP204 | 1.6 |
| SUCSP205-16 | 1 | 1-7/16 | 5-1/2 | 4-1/8 | 1-1/2 | 11/16 | 1/2 | 5/8 | 2-3/4 | 1.3386 | 0.5630 | 0.7756 | 3/8 | SUC205-16 | SP205 | 1.9 |
| SUCSP206-19 | 1-3/16 | 1-11/16 | 6-1/2 | 4-3/4 | 1-29/32 | 13/16 | 9/16 | 23/32 | 3-9/32 | 1.5000 | 0.6260 | 0.8740 | 1/2 | SUC206-19 | SP206 | 2.9 |
| SUCSP206-20 | 1-1/4 | SUC206-20 | ||||||||||||||
| SUCSP207-20 | 1-1/4 | 1-7/8 | 6-9/16 | 5 | 1-29/32 | 7/8 | 9/16 | 3/4 | 3-23/32 | 1.6890 | 0.6890 | 1.0000 | 1/2 | SUC207-20 | SP207 | 3.8 |
| SUCSP207-22 | 1-3/8 | SUC207-22 | ||||||||||||||
| SUCSP207-23 | 1-7/16 | SUC207-23 | ||||||||||||||
| SUCSP208-24 | 1-1/2 | 1-15/16 | 7-1/4 | 5-3/8 | 2-1/8 | 7/8 | 9/16 | 3/4 | 3-15/16 | 1.9370 | 0.7480 | 1.1890 | 1/2 | SUC208-24 | SP208 | 4.4 |
| SUCSP209-28 | 1-3/4 | 2-1/16 | 7-1/2 | 5-3/4 | 2-1/8 | 13/16 | 19/32 | 25/32 | 4-1/4 | 1.9370 | 0.7480 | 1.1890 | 1/2 | SUC209-28 | SP209 | 5.2 |
| SUCSP210-31 | 1-15/16 | 2-1/4 | 8-1/8 | 6-1/4 | 2-3/8 | 15/16 | 23/32 | 7/8 | 4-1/2 | 2.0315 | 0.7480 | 1.2835 | 5/8 | SUC210-31 | SP210 | 6.3 |
| SUCSP210-32 | 2 | SUC210-32 | ||||||||||||||

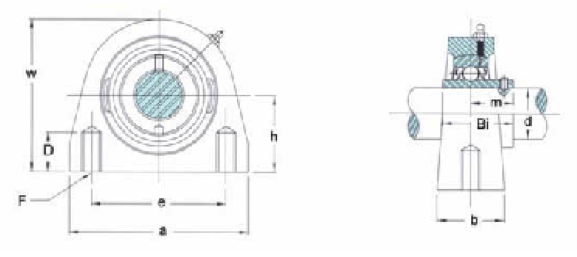

| SUCSPA-SERIES TAPPED PILLOW BLOCKS | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bearing No. | Housing No. | Weight(lbs.) | |||||||||||
| d | h | a | e | b | w | F-tapped Holes | D-Min Tap Depth | m | Bi | |||||||
| SUCSPA205-16 | 1 | 1-17/16 | 3 | 2 | 1-1/2 | 2-13/16 | 3/8"-16UNC | 1/2 | 0.7756 | 1.3386 | SUC205-16 | SPA205 | 1.6 | |||
| SUCSPA206-19 | 1-3/16 | 1-11/16 | 4 | 3 | 1-1/2 | 3-3/8 | 7/16"-14UNC | 5/8 | 0.8740 | 1.5000 | SUC206-19 | SPA206 | 2.6 | |||
| SUCSPA206-20 | 1-1/4 | SUC206-20 | ||||||||||||||
| SUCSPA207-20 | 1-1/4 | 1-7/8 | 4-1/4 | 3-1/4 | 1-7/8 | 3-3/4 | 1/2"-13UNC | 3/4 | 1.0000 | 1.6890 | SUC207-20 | SPA207 | 3.6 | |||
| SUCSPA207-22 | 1-3/8 | SUC207-22 | ||||||||||||||
| SUCSPA207-23 | 1-7/16 | SUC207-23 | ||||||||||||||
