| BEARING NO. | Shaft Dia. | Dimensions(in) | Load Rating | Weight | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | lb. | |||||||||||||||

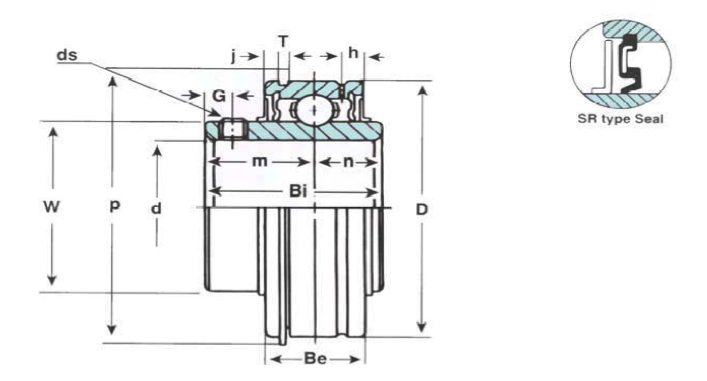

| d | D | Bi | Be | n | m | G | T | H | j | p | ds | w | Dynamic | Static | kg | lbs. | |
| SER201-8 | 1/2 | 0.26 | 0.57 | ||||||||||||||
| SER202-10 | 5/8 | 1.8504 | 1.219 | 0.626 | 0.406 | 0.813 | 0.177 | 0.042 | 0.150 | 0.094 | 2.067 | 1/4-28 | 1.142 | 2890 | 1490 | 0.24 | 0.53 |
| SER204-12 | 3/4 | 47 | 31 | 15.9 | 10.3 | 20.7 | 4.5 | 1.1 | 3.8 | 2.3 | 52.5 | 29 | 0.22 | 0.49 | |||
| SER205-14 | 7/8 | 0.31 | 0.68 | ||||||||||||||
| SER205-15 | 15/16 | 2.0472 | 1.375 | 0.750 | 0.515 | 0.860 | 0.197 | 0.042 | 0.203 | 0.094 | 2.272 | 1/4-28 | 1.339 | 3155 | 1760 | 0.30 | 0.66 |
| SER205-16 | 1 | 52 | 34.9 | 19 | 13.1 | 21.8 | 5 | 1.1 | 5.1 | 2.3 | 57.7 | 34 | 0.28 | 0.62 | |||
| SER206-17 | 1-1/16 | 1/4-28 | 4380 | 2545 | 0.42 | 0.93 | |||||||||||
| SER206-18 | 1-1/8 | 2.4409 | 1.500 | 0.875 | 0.625 | 0.875 | 0.197 | 0.065 | 0.219 | 0.125 | 2.658 | 1.599 | 0.40 | 0.88 | |||
| SER206-19 | 1-3/16 | 62 | 38.1 | 22.2 | 15.8 | 22.2 | 5 | 1.6 | 5.6 | 3.2 | 67.5 | 40.5 | 0.38 | 0.84 | |||
| SER206-20 | 1-1/4 | 0.36 | 0.79 | ||||||||||||||
| SER207-20 | 1-1/4 | 5/16-24 | 5780 | 3460 | 0.62 | 1.37 | |||||||||||
| SER207-21 | 1-5/16 | 2.8346 | 1.688 | 0.937 | 0.688 | 1.000 | 0.236 | 0.065 | 0.219 | 0.125 | 3.078 | 1.866 | 0.59 | 1.30 | |||
| SER207-22 | 1-3/8 | 72 | 42.8 | 23.8 | 17.5 | 25.4 | 6 | 1.6 | 5.6 | 3.2 | 78.2 | 47.4 | 0.56 | 1.23 | |||
| SER207-23 | 1-7/16 | 0.53 | 1.17 | ||||||||||||||
| SER208-24 | 1-1/2 | 3.1496 | 1.937 | 1.093 | 0.750 | 1.187 | 0.315 | 0.065 | 0.250 | 0.125 | 3.406 | 5/16-24 | 2.075 | 5790 | 4045 | 0.91 | 2.01 |
| SER208-25 | 1-9/16 | 80 | 49.2 | 27.8 | 19 | 30.1 | 8 | 1.6 | 6.4 | 3.2 | 86.5 | 52.7 | 0.88 | 1.94 | |||
| SER209-26 | 1-5/8 | 1.05 | 2.32 | ||||||||||||||
| SER209-27 | 1-11/16 | 3.3465 | 1.937 | 1.093 | 0.750 | 1.187 | 0.315 | 0.065 | 0.250 | 0.125 | 3.594 | 5/16-24 | 2.248 | 7360 | 4600 | 1.00 | 2.21 |
| SER209-28 | 1-3/4 | 85 | 49.2 | 27.8 | 19 | 30.1 | 8 | 1.6 | 6.3 | 3.2 | 91.3 | 57.1 | 0.97 | 2.14 | |||
| SER210-30 | 1-7/8 | 3.5433 | 2.032 | 1.125 | 0.750 | 1.282 | 0.354 | 0.095 | 0.297 | 0.125 | 3.781 | 3/8-24 | 2.449 | 7900 | 5180 | 1.10 | 2.43 |
| SER210-31 | 1-15/16 | 90 | 51.6 | 28.6 | 19.1 | 32.6 | 9 | 2.4 | 7.5 | 3.2 | 96 | 62.2 | 1.05 | 2.32 | |||
| SER211-32 | 2 | 1.36 | 3.00 | ||||||||||||||
| SER211-34 | 2-1/8 | 3.9370 | 2.189 | 1.187 | 0.875 | 1.314 | 0.354 | 0.095 | 0.297 | 0.125 | 4.187 | 3/8-24 | 2.756 | 9760 | 6552 | 1.25 | 2.76 |
| SER211-35 | 2-3/16 | 100 | 55.6 | 30.1 | 22.2 | 33.3 | 9 | 2.4 | 7.5 | 3.2 | 106.3 | 70.0 | 1.19 | 2.62 | |||
| SER212-36 | 2-1/4 | 1.82 | 4.01 | ||||||||||||||
| SER212-38 | 2-3/8 | 4.3307 | 2.563 | 1.250 | 1.000 | 1.563 | 0.394 | 0.095 | 0.297 | 0.125 | 4.583 | 3/8-24 | 3.031 | 11800 | 8095 | 1.67 | 3.68 |
| SER212-39 | 2-7/16 | 110 | 65.1 | 31.7 | 25.4 | 39.7 | 10 | 2.4 | 7.5 | 3.2 | 116.4 | 76.99 | 1.59 | 3.51 | |||
