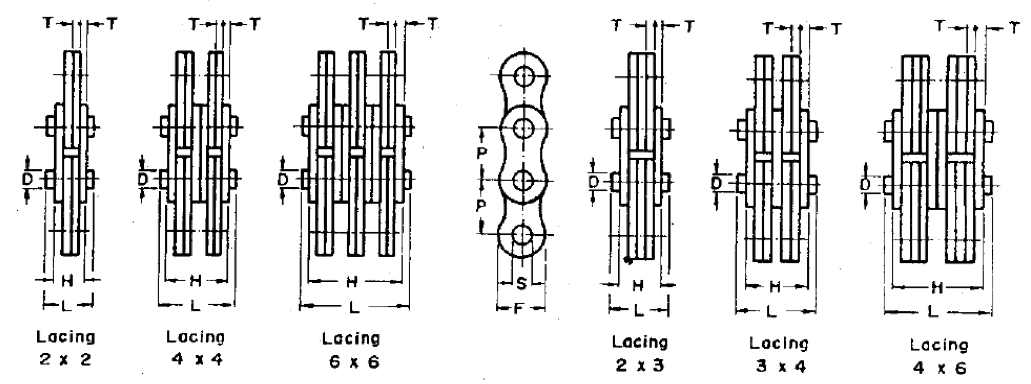

| TYPE B | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Chain No. | P | Lacing | H max. | L max. | D max. | S min. | F max. | T max. | Weight kg/m | Ave.Ulti Strength kg |
| BL-422 | 12.7 | 2/2 | 8.40 | 10.80 | 5.09 | 5.14 | 11.80 | 1.99 | 0.61 | 2700 |
| BL-423 | 2/3 | 10.50 | 12.90 | 0.72 | 2700 | |||||
| BL-434 | 3/4 | 14.70 | 17.10 | 0.99 | 4050 | |||||
| BL-444 | 4/4 | 16.80 | 19.40 | 1.14 | 5400 | |||||
| BL-446 | 4/6 | 21.00 | 23.70 | 1.41 | 5400 | |||||
| BL-466 | 6/6 | 25.20 | 28.00 | 1.69 | 8100 | |||||
| BL-522 | 15.875 | 2/2 | 9.80 | 12.50 | 5.95 | 6.02 | 14.73 | 2.36 | 0.86 | 4250 |
| BL-523 | 2/3 | 12.25 | 14.90 | 1.05 | 4250 | |||||
| BL-534 | 3/4 | 17.15 | 19.80 | 1.47 | 6400 | |||||
| BL-544 | 4/4 | 19.60 | 22.10 | 1.67 | 8500 | |||||
| BL-546 | 4/6 | 24.50 | 26.90 | 2.08 | 8500 | |||||
| BL-566 | 6/6 | 29.40 | 31.80 | 2.49 | 12750 | |||||
| BL-622 | 19.05 | 2/2 | 13.36 | 16.40 | 7.93 | 7.98 | 18.10 | 3.15 | 1.43 | 6550 |
| BL-623 | 2/3 | 16.70 | 19.90 | 1.75 | 6550 | |||||
| BL-634 | 3/4 | 23.38 | 26.60 | 2.42 | 10000 | |||||
| BL-644 | 4/4 | 26.72 | 29.90 | 2.76 | 13200 | |||||
| BL-646 | 4/6 | 33.40 | 36.40 | 3.45 | 13200 | |||||
| BL-666 | 6/6 | 40.08 | 42.80 | 4.14 | 19800 | |||||
| BL-822 | 25.4 | 2/2 | 16.50 | 20.40 | 9.53 | 9.61 | 23.24 | 3.97 | 2.41 | 10500 |
| BL-823 | 2/3 | 20.63 | 24.70 | 2.99 | 10500 | |||||
| BL-834 | 3/4 | 28.88 | 32.60 | 4.16 | 15500 | |||||
| BL-844 | 4/4 | 33.00 | 37.20 | 4.77 | 21000 | |||||
| BL-846 | 4/6 | 41.25 | 44.70 | 5.94 | 21000 | |||||
| BL-866 | 6/6 | 49.50 | 53.20 | 7.12 | 30000 | |||||
| BL-1022 | 31.75 | 2/2 | 19.72 | 25.20 | 11.11 | 11.22 | 30.24 | 4.74 | 3.64 | 15000 |
| BL-1023 | 2/3 | 24.65 | 29.90 | 4.52 | 15000 | |||||
| BL-1034 | 3/4 | 34.50 | 39.50 | 6.28 | 22500 | |||||
| BL-1044 | 4/4 | 39.44 | 44.20 | 7.17 | 30000 | |||||
| BL-1046 | 4/6 | 49.30 | 53.70 | 8.95 | 30000 | |||||
| BL-1066 | 6/6 | 59.16 | 63.20 | 10.68 | 45000 | |||||
| BL-1222 | 38.1 | 2/2 | 23.08 | 28.50 | 12.7 | 12.81 | 35.93 | 5.55 | 5.53 | 20000 |
| BL-1223 | 2/3 | 28.85 | 24.10 | 6.88 | 20000 | |||||
| BL-1234 | 3/4 | 40.40 | 45.30 | 9.56 | 30000 | |||||
| BL-1244 | 4/4 | 46.16 | 50.90 | 10.91 | 40000 | |||||
| BL-1246 | 4/6 | 57.70 | 62.10 | 13.59 | 40000 | |||||
| BL-1266 | 6/6 | 69.24 | 73.30 | 16.27 | 60000 | |||||
| BL-1422 | 44.45 | 2/2 | 26.30 | 32.00 | 14.27 | 14.40 | 41.40 | 6.40 | 6.75 | 24000 |
| BL-1423 | 2/3 | 32.88 | 38.30 | 8.37 | 24000 | |||||
| BL-1434 | 3/4 | 46.02 | 51.30 | 11.77 | 36000 | |||||
| BL-1444 | 4/4 | 52.60 | 57.80 | 13.25 | 48000 | |||||
| BL-1446 | 4/6 | 65.75 | 70.30 | 16.50 | 48000 | |||||
| BL-1466 | 6/6 | 78.90 | 83.30 | 19.75 | 72000 |
