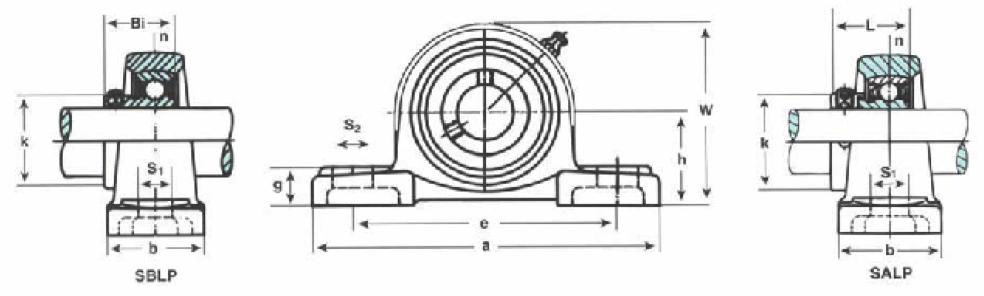

| SBLP200-SERIES SET SCREW TYPE | \|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
| h | a | e | b | S2 | S1 | g | w | Bi | n | kg | lbs. | ||||||
| SBLP201-8 | 1/2 | 1-1/16 | 4-3/4 | 3-1/2 | 1-1/8 | 5/8 | 1/2 | 1/2 | 2-3/16 | 0.866 | 0.236 | 3/8 | SB201-8 | LP203 | 0.38 | 0.84 | |
| SBLP202-10 | 5/8 | SB202-10 | |||||||||||||||
| SBLP204-12 | 3/4 | 1-1/4 | 5-1/4 | 3-7/8 | 1-1/4 | 3/4 | 1/2 | 1/2 | 2-9/16 | 0.984 | 0.275 | 3/8 | SB204-12 | LP204 | 0.47 | 1.03 | |
| SBLP205-14 | 7/8 | 1-5/16 | 5-1/2 | 4-1/8 | 1-1/2 | 3/4 | 1/2 | 5/8 | 2-11/16 | 1.062 | 0.295 | 3/8 | SB205-14 | LP205 | 0.58 | 1.28 | |
| SBLP205-15 | 15/16 | SB205-15 | |||||||||||||||
| SBLP205-16 | 1 | SB205-16 | |||||||||||||||
| SBLP206-18 | 1-1/8 | 1-9/16 | 6-1/2 | 4-7/8 | 1-5/8 | 7/8 | 19/32 | 11/16 | 3-3/16 | 1.181 | 0.315 | 1/2 | SB206-18 | LP206 | 0.68 | 1.50 | |
| SBLP206-19 | 1-3/16 | SB206-19 | |||||||||||||||
| SBLP206-20 | 1-1/4 | SB206-20 | |||||||||||||||
| SBLP207-20 | 1-1/4 | 1-13/16 | 7 | 5-3/8 | 1-7/8 | 7/8 | 19/32 | 3/4 | 3-11/16 | 1.259 | 0.335 | 1/2 | SB207-20 | LP207 | 0.94 | 2.07 | |
| SBLP207-21 | 1-5/16 | SB207-21 | |||||||||||||||
| SBLP207-22 | 1-3/8 | SB207-22 | |||||||||||||||
| SBLP207-23 | 1-7/16 | SB207-23 | |||||||||||||||
| SBLP208-24 | 1-1/2 | 1-15/16 | 7-1/4 | 5-5/8 | 2 | 7/8 | 19/32 | 13/16 | 3-15/16 | 1.338 | 0.354 | 1/2 | SB208-24 | LP208 | 1.80 | 3.96 | |
| SALP200-SERIES ECCENTRIC LOCKING COLLAR TYPE | \|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
| h | a | e | b | S2 | S1 | g | w | L | n | k | kg | lbs. | |||||
| SALP201-8 | 1/2 | 1-1/16 | 4-3/4 | 3-1/2 | 1-1/8 | 5/8 | 1/2 | 1/2 | 2-3/16 | 1.125 | 0.256 | 1-1/8 | 3/8 | SA201-8 | LP203 | 0.41 | 0.90 |
| SALP202-10 | 5/8 | SA202-10 | |||||||||||||||
| SALP204-12 | 3/4 | 1-1/4 | 5-1/4 | 3-7/8 | 1-1/4 | 3/4 | 1/2 | 1/2 | 2-9/16 | 1.218 | 0.295 | 1-1/4 | 3/8 | SA204-12 | LP204 | 0.53 | 1.17 |
| SALP205-14 | 7/8 | 1-5/16 | 5-1/2 | 4-1/8 | 1-1/2 | 3/4 | 1/2 | 5/8 | 2-11/16 | 1.218 | 0.295 | 1-1/2 | 3/8 | SA205-14 | LP205 | 0.63 | 1.39 |
| SALP205-15 | 15/16 | SA205-15 | |||||||||||||||
| SALP205-16 | 1 | SA205-16 | |||||||||||||||
| SALP206-18 | 1-1/8 | 1-9/16 | 6-1/2 | 4-7/8 | 1-5/8 | 7/8 | 19/32 | 11/16 | 3-3/16 | 1.406 | 0.354 | 1-3/4 | 1/2 | SA206-18 | LP206 | 0.76 | 1.67 |
| SALP206-19 | 1-3/16 | SA206-19 | |||||||||||||||
| SALP206-20 | 1-1/4 | SA206-20 | |||||||||||||||
| SALP207-20 | 1-1/4 | 1-13/16 | 7 | 5-3/8 | 1-7/8 | 7/8 | 19/32 | 3/4 | 3-11/16 | 1.531 | 0.374 | 2-3/16 | 1/2 | SA207-20 | LP207 | 1.10 | 2.42 |
| SALP207-21 | 1-5/16 | SA207-21 | |||||||||||||||
| SALP207-22 | 1-3/8 | SA207-22 | |||||||||||||||
| SALP207-23 | 1-7/16 | SA207-23 | |||||||||||||||
| SALP208-24 | 1-1/2 | 1-15/16 | 7-1/4 | 5-5/8 | 2 | 7/8 | 19/32 | 13/16 | 3-15/16 | 1.719 | 0.433 | 2-3/8 | 1/2 | SA208-24 | LP208 | 1.90 | 4.18 |
