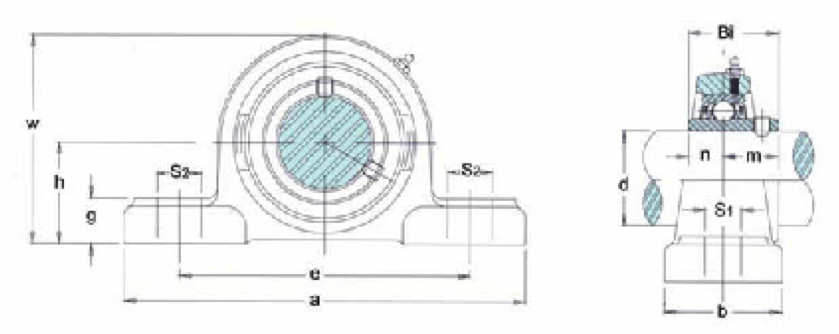

| SUCTP-SERIES PILLOW BLOCKS | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight(lbs.) | ||||||||||
| d | h | a | e | b | S2 | S1 | g | w | Bi | n | m | |||||
| SUCTP204-12 | 3/4 | 1-5/16 | 5 | 3-3/4 | 1-1/2 | 9/16 | 7/16 | 9/16 | 2-19/32 | 1.2205 | 0.5000 | 0.7205 | 3/8 | SUC204-12 | TP204 | 0.7 |
| SUCTP205-16 | 1 | 1-7/16 | 5-1/2 | 4-1/8 | 1-1/2 | 9/16 | 7/16 | 9/16 | 2-13/16 | 1.3386 | 0.5630 | 0.7756 | 3/8 | SUC205-16 | TP205 | 0.8 |
| SUCTP206-19 | 1-3/16 | 1-11/16 | 6-13/32 | 4-11/16 | 1-13/16 | 23/32 | 9/16 | 11/16 | 3-19/64 | 1.5000 | 0.6260 | 0.8740 | 1/2 | SUC206-19 | TP206 | 1.29 |
| SUCTP206-20 | 1-1/4 | SUC206-20 | ||||||||||||||
| SUCTP207-20 | 1-1/4 | 1-7/8 | 6-5/8 | 5 | 1-29/32 | 23/32 | 9/16 | 11/16 | 3-11/16 | 1.6890 | 0.6890 | 1.0000 | 1/2 | SUC207-20 | TP207 | 1.7 |
| SUCTP207-22 | 1-3/8 | SUC207-22 | ||||||||||||||
| SUCTP207-23 | 1-7/16 | SUC207-23 | ||||||||||||||
| SUCTP208-24 | 1-1/2 | 1-15/16 | 7-1/4 | 5-7/16 | 2-1/8 | 23/32 | 9/16 | 25/32 | 3-29/32 | 1.9370 | 0.7480 | 1.1890 | 1/2 | SUC208-24 | TP208 | 2.2 |

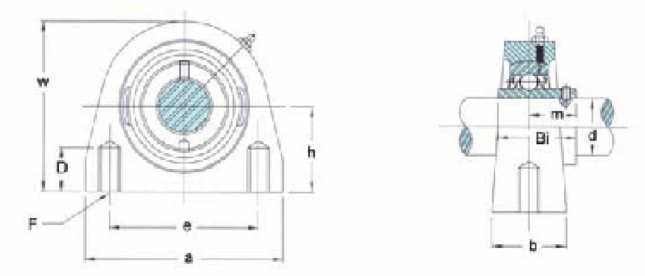

| SUCTPA-SERIES TAPPED BASE PILLOW BLOCKS | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bearing No. | Housing No. | Weight(lbs.) | |||||||||||
| d | h | a | e | b | w | F-tapped Holes | D-Min Tap Depth | m | Bi | |||||||
| SUCTPA204-12 | 3/4 | 1-5/16 | 2-7/8 | 2 | 1-3/8 | 2-19/32 | 3/8"-16UNC | 1/2 | 0.7205 | 1.2205 | SUC204-12 | TPA204 | 0.6 | |||
| SUCTPA205-16 | 1 | 1-7/16 | 3 | 2 | 1-9/16 | 2-29/32 | 3/8"-16UNC | 1/2 | 0.7756 | 1.3386 | SUC205-16 | TPA205 | 0.8 | |||
| SUCTPA206-19 | 1-3/16 | 1-11/16 | 4 | 3 | 1-11/16 | U+ | 7/16"-14UNC | 1/2 | 0.8740 | 1.5000 | SUC206-19 | TPA206 | 1.2 | |||
| SUCTPA206-20 | 1-1/4 | SUC206-20 | ||||||||||||||
| SUCTPA207-20 | 1-1/4 | 1-7/8 | 4-5/16 | 3-1/4 | 1-7/8 | 3-3/4 | 1/2"-13UNC | 41/64 | 1.0000 | 1.6890 | SUC207-20 | TPA207 | 1.7 | |||
| SUCTPA207-22 | 1-3/8 | SUC207-22 | ||||||||||||||
| SUCTPA207-23 | 1-7/16 | SUC207-23 | ||||||||||||||
