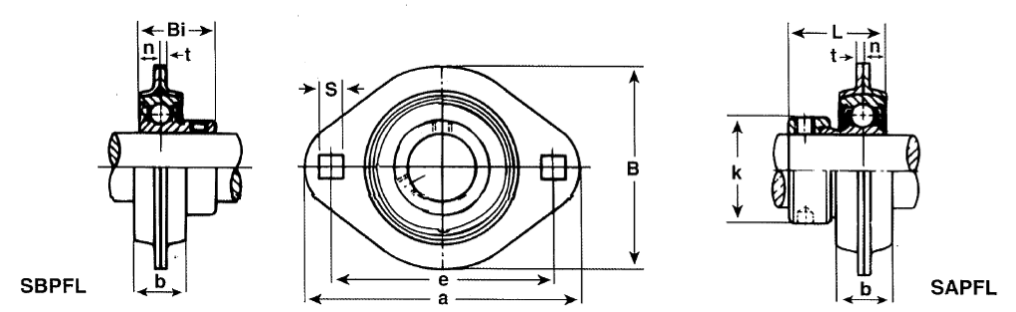

| SBPFL200-SERIES SET SCREW TYPE | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight | |||||||||
| a | e | B | t | b | S | Bi | n | kg | lbs. | ||||||
| SBPFL201-8 | 1/2 | 3-3/16 | 2-1/2 | 2-5/16 | 0.079 | 5/8 | 9/32 | 0.8661 | 0.236 | 1/4 | SB201-8 | PFL203 | 0.19 | 0.42 | |
| SBPFL202-10 | 5/8 | SB202-10 | |||||||||||||
| SBPFL204-12 | 3/4 | 3-17/32 | 2-13/16 | 2-5/8 | 0.079 | 43/64 | 23/64 | 0.9843 | 0.275 | 5/16 | SB204-12 | PFL204 | 0.24 | 0.53 | |
| SBPFL205-14 | 7/8 | 3-3/4 | 3 | 2-25/32 | 0.079 | 51/64 | 23/64 | 1.0630 | 0.295 | 5/16 | SB205-14 | PFL205 | 0.29 | 0.64 | |
| SBPFL205-15 | 15/16 | SB205-15 | |||||||||||||
| SBPFL205-16 | 1 | SB205-16 | |||||||||||||
| SBPFL206-17 | 1-1/16 | 4-7/16 | 3-9/16 | 3-5/16 | 0.102 | 51/64 | 7/16 | 1.1811 | 0.315 | 3/8 | SB206-17 | PFL206 | 0.43 | 0.95 | |
| SBPFL206-18 | 1-1/8 | SB206-18 | |||||||||||||
| SBPFL206-19 | 1-3/16 | SB206-19 | |||||||||||||
| SBPFL206-20 | 1-1/4 | SB206-20 | |||||||||||||
| SBPFL207-20 | 1-1/4 | 4-15/16 | 3-15/16 | 3-11/16 | 0.102 | 51/64 | 7/16 | 1.2598 | 0.335 | 3/8 | SB207-20 | PFL207 | 0.54 | 1.19 | |
| SBPFL207-21 | 1-5/16 | SB207-21 | |||||||||||||
| SBPFL207-22 | 1-3/8 | SB207-22 | |||||||||||||
| SBPFL207-23 | 1-7/16 | SB207-23 | |||||||||||||
| SAPFL200-SERIES ECCENTRIC LOCKING COLLAR TYPE | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight | |||||||||
| a | e | B | t | b | S | L | n | k | kg | lbs. | |||||
| SAPFL201-8 | 1/2 | 3-3/16 | 2-1/2 | 2-5/16 | 0.079 | 5/8 | 9/32 | 1.1260 | 0.256 | 1-1/8 | 1/4 | SA201-8 | PFL203 | 0.22 | 0.49 |
| SAPFL202-10 | 5/8 | SA202-10 | |||||||||||||
| SAPFL204-12 | 3/4 | 3-17/32 | 2-13/16 | 2-5/8 | 0.079 | 43/64 | 23/64 | 1.2205 | 0.295 | 1-1/4 | 5/16 | SA204-12 | PFL204 | 0.28 | 0.68 |
| SAPFL205-14 | 7/8 | 3-3/4 | 3 | 2-25/32 | 0.079 | 51/64 | 23/64 | 1.2205 | 0.295 | 1-1/2 | 5/16 | SA205-14 | PFL205 | 0.33 | 0.73 |
| SAPFL205-15 | 15/16 | SA205-15 | |||||||||||||
| SAPFL205-16 | 1 | SA205-16 | |||||||||||||
| SAPFL206-17 | 1-1/16 | 4-7/16 | 3-9/16 | 3-5/16 | 0.102 | 51/64 | 7/16 | 1.4055 | 0.354 | 1-3/4 | 3/8 | SA206-17 | PFL206 | 0.48 | 1.06 |
| SAPFL206-18 | 1-1/8 | SA206-18 | |||||||||||||
| SAPFL206-19 | 1-3/16 | SA206-19 | |||||||||||||
| SAPFL206-20 | 1-1/4 | SA206-20 | |||||||||||||
| SAPFL207-20 | 1-1/4 | 4-15/16 | 3-15/16 | 3-11/16 | 0.102 | 51/64 | 7/16 | 1.5315 | 0.374 | 2-3/16 | 3/8 | SA207-20 | PFL207 | 0.59 | 1.30 |
| SAPFL207-21 | 1-5/16 | SA207-21 | |||||||||||||
| SAPFL207-22 | 1-3/8 | SA207-22 | |||||||||||||
| SAPFL207-23 | 1-7/16 | SA207-23 | |||||||||||||
