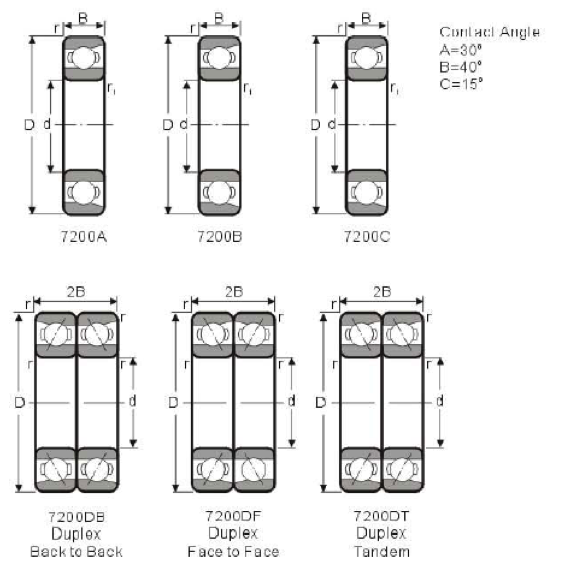

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | r1 | ||||||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | ||
| 7200B | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 1.0 | 0.039 | 0.5 | 0.020 | 1220 | 615 | 0.062 |
| 7201B | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 1.0 | 0.039 | 0.5 | 0.020 | 1600 | 810 | 0.077 |
| 7202B | 15 | 0.5906 | 35 | 1.3780 | 11 | 0.4331 | 1.0 | 0.039 | 0.5 | 0.020 | 2040 | 1060 | 0.093 |
| 7203B | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 1.0 | 0.039 | 0.5 | 0.020 | 2690 | 1490 | 0.134 |
| 7204B | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 1.5 | 0.059 | 0.8 | 0.031 | 3250 | 1890 | 0.220 |
| 7205B | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 1.5 | 0.059 | 0.8 | 0.031 | 3650 | 2320 | 0.271 |
| 7206B | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 1.5 | 0.059 | 0.8 | 0.031 | 5050 | 3350 | 0.423 |
| 7207B | 35 | 1.3780 | 72 | 2.8346 | 17 | 0.6693 | 2.0 | 0.079 | 1.0 | 0.039 | 6700 | 4500 | 0.611 |
| 7208B | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 2.0 | 0.079 | 1.0 | 0.039 | 7950 | 3650 | 0.783 |
| 7209B | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.7480 | 2.0 | 0.079 | 1.0 | 0.039 | 8900 | 6450 | 0.891 |
| 7210B | 50 | 1.9685 | 90 | 3.5433 | 20 | 0.7874 | 2.0 | 0.079 | 1.0 | 0.039 | 9300 | 7050 | 1.000 |
| 7211B | 55 | 2.1654 | 100 | 3.9370 | 21 | 0.8268 | 2.5 | 0.098 | 1.2 | 0.047 | 11500 | 8900 | 1.320 |
| 7212B | 60 | 3.3622 | 110 | 4.3307 | 22 | 0.8661 | 2.5 | 0.098 | 1.2 | 0.047 | 13900 | 11000 | 1.690 |
| 7213B | 65 | 2.5591 | 120 | 4.7244 | 23 | 0.9055 | 2.5 | 0.098 | 1.2 | 0.047 | 15800 | 13000 | 2.120 |
| 7214B | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 2.5 | 0.098 | 1.2 | 0.047 | 17200 | 14300 | 2.360 |
| 7215B | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 2.5 | 0.098 | 1.2 | 0.047 | 17800 | 15400 | 2.580 |
| 7216B | 80 | 3.1496 | 140 | 5.5118 | 26 | 1.0236 | 3.0 | 0.118 | 1.5 | 0.059 | 20000 | 17100 | 3.060 |
| 7217B | 85 | 3.3465 | 150 | 5.9055 | 28 | 1.1024 | 3.0 | 0.118 | 1.5 | 0.059 | 22400 | 19900 | 3.920 |
| 7218B | 90 | 3.5433 | 160 | 6.2992 | 30 | 1.1811 | 3.0 | 0.118 | 1.5 | 0.059 | 26500 | 23200 | 4.810 |
| 7219B | 95 | 3.7402 | 170 | 6.6929 | 32 | 1.2598 | 3.5 | 0.138 | 2.0 | 0.079 | 30000 | 26500 | 5.890 |
| 7220B | 100 | 3.9370 | 180 | 7.0866 | 34 | 1.3386 | 3.5 | 0.138 | 2.0 | 0.079 | 32500 | 28200 | 7.050 |
| 7221B | 105 | 4.1339 | 190 | 7.4803 | 36 | 1.4173 | 3.5 | 0.138 | 2.0 | 0.079 | 35000 | 32000 | 8.360 |
| 7222B | 110 | 4.3307 | 200 | 7.874 | 38 | 1.4961 | 3.5 | 0.138 | 2.0 | 0.079 | 38000 | 35500 | 9.810 |
| 7224B | 120 | 4.7244 | 215 | 8.4646 | 40 | 1.5748 | 3.5 | 0.138 | 2.0 | 0.079 | 41000 | 40000 | 13.800 |
| 7226B | 130 | 5.1181 | 230 | 9.0551 | 40 | 1.5748 | 4.0 | 0.157 | 2.0 | 0.079 | 44000 | 44500 | 15.800 |
| 7228B | 140 | 5.5118 | 250 | 9.8425 | 42 | 1.6535 | 4.0 | 0.157 | 2.0 | 0.079 | 45500 | 48500 | 19.400 |
| 7230B | 150 | 5.9055 | 270 | 10.6299 | 45 | 1.7717 | 4.0 | 0.157 | 2.0 | 0.079 | 52000 | 58000 | 24.300 |
