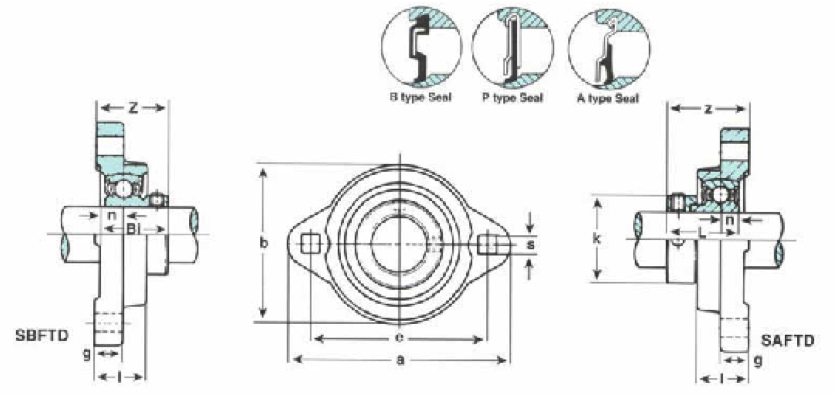

| SBFTD200-SERIES SET SCREW TYPE | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
| a | e | g | I | s | b | z | Bi | n | kg | lbs. | ||||||
| SBFTD201-8 | 1/2 | 3-1/4 | 2-9/16 | 27/64 | 23/32 | 9/32 | 2-9/32 | 1-7/64 | 0.866 | 0.236 | 1/4 | SB201-8 | PFTD203 | 0.23 | 0.51 | |
| SBFTD202-10 | 5/8 | SB202-10 | ||||||||||||||
| SBFTD204-12 | 3/4 | 3-11/16 | 2-13/16 | 7/16 | 49/64 | 11/32 | 2-39/64 | 1-13/64 | 0.984 | 0.275 | 5/16 | SB204-12 | PFTD204 | 0.27 | 0.60 | |
| SBFTD205-14 | 7/8 | 3-7/8 | 3 | 7/16 | 51/64 | 11/32 | 2-23/32 | 1-17/64 | 1.062 | 0.295 | 5/16 | SB205-14 | PFTD205 | 0.38 | 0.84 | |
| SBFTD205-15 | 15/16 | SB205-15 | ||||||||||||||
| SBFTD205-16 | 1 | SB205-16 | ||||||||||||||
| SBFTD206-17 | 1-1/16 | 4-9/16 | 3-17/32 | 1/2 | 55/64 | 13/32 | 3-13/64 | 1-13/32 | 1.181 | 0.315 | 3/8 | SB206-17 | PFTD206 | 0.54 | 1.19 | |
| SBFTD206-18 | 1-1/8 | SB206-18 | ||||||||||||||
| SBFTD206-19 | 1-3/16 | SB206-19 | ||||||||||||||
| SBFTD206-20 | 1-1/4 | SB206-20 | ||||||||||||||
| SBFTD207-20 | 1-1/4 | 4-13/16 | 3-15/16 | 1/2 | 15/16 | 13/32 | 3-33/64 | 1-17/32 | 1.259 | 0.335 | 3/8 | SB207-20 | PFTD207 | 0.71 | 1.57 | |
| SBFTD207-21 | 1-5/16 | SB207-21 | ||||||||||||||
| SBFTD207-22 | 1-3/8 | SB207-22 | ||||||||||||||
| SBFTD207-23 | 1-7/16 | SB207-23 | ||||||||||||||
| SAFTD200-SERIES ECCENTRIC LOCKING COLLAR TYPE | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
| a | e | g | I | s | b | z | L | n | k | kg | lbs. | |||||
| SAFTD201-8 | 1/2 | 3-3/16 | 2-9/16 | 27/64 | 23/32 | 9/32 | 2-9/32 | 1-21/64 | 1.125 | 0.256 | 1-1/8 | 1/4 | SA201-8 | PFTD203 | 0.26 | 0.57 |
| SAFTD202-10 | 5/8 | SA202-10 | ||||||||||||||
| SAFTD204-12 | 3/4 | 3-17/32 | 2-13/16 | 7/16 | 49/64 | 11/32 | 2-39/64 | 1-7/16 | 1.218 | 0.295 | 1-1/4 | 5/16 | SA204-12 | PFTD204 | 0.29 | 0.64 |
| SAFTD205-14 | 7/8 | 3-3/8 | 3 | 7/16 | 51/64 | 11/32 | 2-23/32 | 1-27/64 | 1.218 | 0.295 | 1-1/2 | 5/16 | SA205-14 | PFTD205 | 0.40 | 0.88 |
| SAFTD205-15 | 15/16 | SA205-15 | ||||||||||||||
| SAFTD205-16 | 1 | SA205-16 | ||||||||||||||
| SAFTD206-17 | 1-1/16 | 4-9/16 | 3-17/32 | 1/2 | 55/64 | 11/32 | 3-13/64 | 1-41/64 | 1.406 | 0.354 | 1-3/4 | 3/8 | SA206-17 | PFTD206 | 0.60 | 1.32 |
| SAFTD206-18 | 1-1/8 | SA206-18 | ||||||||||||||
| SAFTD206-19 | 1-3/16 | SA206-19 | ||||||||||||||
| SAFTD206-20 | 1-1/4 | SA206-20 | ||||||||||||||
| SAFTD207-20 | 1-1/4 | 4-13/16 | 3-15/16 | 1/2 | 15/16 | 13/32 | 3-33/64 | 1-51/64 | 1.531 | 0.374 | 2-3/16 | 3/8 | SA207-20 | PFTD207 | 0.84 | 1.85 |
| SAFTD207-21 | 1-5/16 | SA207-21 | ||||||||||||||
| SAFTD207-22 | 1-3/8 | SA207-22 | ||||||||||||||
| SAFTD207-23 | 1-7/16 | SA207-23 | ||||||||||||||
