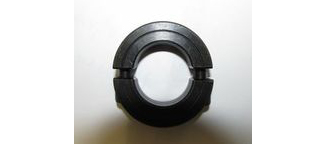

| PART NO. | BORE DIA.B | OUTER DIA. O.D. | WIDTH LTB | DIA.J | DIA.H | T | SET SCREW SIZE CLASS 3A UNC*/UNF | WEIGHT GRAMS |
|---|---|---|---|---|---|---|---|---|
| DSC 1/4 | 1/4 | 0.688 | 0.313 | 0.200 | 0.125 | 0.085 | *4-40x3/8 | 12.992 |
| DSC 5/16 | 5/16 | 11/16 | 0.313 | 0.200 | 0.125 | 0.085 | *4-40x3/8 | 11.859 |
| DSC3/8 | 3/8 | 7/8 | 0.343 | 0.272 | 0.154 | 0.14 | *6-32x3/8 | 21.659 |
| DSC7/16 | 7/16 | 15/16 | 0.375 | 0.272 | 0154 | 014 | *6-32x3/8 | 26.047 |
| DSC1/2 | 1/2 | 1 1/8 | 0.406 | 0.316 | 0.180 | 0.20 | *8-32x1/2 | 41.660 |
| DSC9/16 | 9/16 | 1 1/4 | 0.437 | 0.359 | 0.206 | 0.20 | 10-32x1/2 | 55.016 |
| DSC5/8 | 5/8 | 1 5/16 | 0.437 | 0.359 | 0.206 | 0.20 | 10-32x1/2 | 58.811 |
| DSC11/16 | 11/16 | 1 3/8 | 0.437 | 0.359 | 0.206 | 0.20 | 10-32x1/2 | 62.605 |
| DSC3/4 | 3/4 | 1 1/2 | 1/2 | 0.410 | 0.206 | 0.20 | 1/4-28x5/8 | 85.246 |
| DSC13/16 | 13/16 | 1 5/8 | 1/2 | 0.410 | 0.206 | 0.20 | 1/4-28x5/8 | 100.046 |
| DSC7/8 | 7/8 | 1 5/8 | 1/2 | 0.410 | 0.206 | 0.20 | 1/4-28x5/8 | 94.718 |
| DSC15/16 | 15/16 | 1 3/4 | 1/2 | 0.410 | 0.206 | 0.20 | 1/4-28x5/8 | 110.307 |
| DSC1 | 1 | 1 3/4 | 1/2 | 0.410 | 0.206 | 0.20 | 1/4-28x5/8 | 104.190 |
| DSC1 1/16 | 1 1/16 | 1 7/8 | 1/2 | 0.410 | 0.206 | 0.20 | 1/4-28x5/8 | 120.568 |
| DSC1 1/8 | 1 1/8 | 1 7/8 | 1/2 | 0.410 | 0.206 | 0.25 | 1/4-28x5/8 | 113.661 |
| DSC1 3/16 | 1 3/16 | 2 1/16 | 1/2 | 0.410 | 0.206 | 0.25 | 1/4-28x5/8 | 143.665 |
| DSC1 1/4 | 1 1/4 | 2 1/16 | 1/2 | 0.410 | 0.206 | 0.25 | 1/4-28x5/8 | 135.960 |
| DSC1 5/16 | 1 5/16 | 2 1/8 | 9/16 | 0.410 | 0.206 | 0.25 | 1/4-28x5/8 | 158.726 |
| DSC1 3/8 | 1 3/8 | 2 1/4 | 9/16 | 0.410 | 0.206 | 0.25 | 1/4-28x5/8 | 180.260 |
| DSC1 7/16 | 1 7/16 | 2 1/4 | 9/16 | 0.410 | 0.206 | 0.25 | 1/4-28x5/8 | 170.270 |
| DSC1 1/2 | 1 1/2 | 2 3/8 | 9/16 | 0.410 | 0.206 | 0.25 | 1/4-28x5/8 | 192.692 |
| DSC1 5/8 | 1 5/8 | 2 5/8 | 11/16 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 295.204 |
| DSC1 11/19 | 1 11/19 | 2 3/4 | 11/16 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 327.492 |
| DSC1 3/4 | 1 3/4 | 2 3/4 | 11/16 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 312.569 |
| DSC1 7/8 | 1 7/8 | 2 7/8 | 11/16 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 329.934 |
| DSC1 15/16 | 1 15/16 | 3 | 11/16 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 364.393 |
| DSC2 | 2 | 3 | 11/16 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 347.299 |
| DSC2 1/8 | 2 1/8 | 3 1/4 | 3/4 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 458.198 |
| DSC2 3/16 | 2 3/16 | 3 1/4 | 3/4 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 437.774 |
| DSC2 1/4 | 2 1/4 | 3 1/4 | 3/4 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 416.769 |
| DSC2 3/8 | 2 3/8 | 3 1/2 | 3/4 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 500.821 |
| DSC2 7/16 | 2 7/16 | 3 1/2 | 3/4 | 0.515 | 0.328 | 0.32 | 5/16-24x7/8 | 478.029 |
| DSC2 1/2 | 2 1/2 | 3 3/4 | 7/8 | 0.609 | 0.391 | 0.32 | 3/8-24x7/8 | 690.651 |
| DSC2 5/8 | 2 5/8 | 3 7/8 | 7/8 | 0.609 | 0.391 | 0.32 | 3/8-24x7/8 | 718.277 |
| SCC2 11/16 | 2 11/16 | 4 | 7/8 | 0.609 | 0.391 | 0.32 | 3/8-24x7/8 | 775.947 |
| DSC2 3/4 | 2 3/4 | 4 | 7/8 | 0.609 | 0.391 | 0.32 | 3/8-24x7/8 | 745.903 |
| DSC2 7/8 | 2 7/8 | 4 1/4 | 7/8 | 0.609 | 0.391 | 0.32 | 3/8-24x7/8 | 866.077 |
| DSC2 15/16 | 2 15/16 | 4 1/4 | 7/8 | 0.609 | 0.391 | 0.32 | 3/8-24x7/8 | 83.961 |
| DSC3 | 3 | 4 1/4 | 7/8 | 0.609 | 0.391 | 0.32 | 3/8-24x7/8 | 801.155 |
