| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

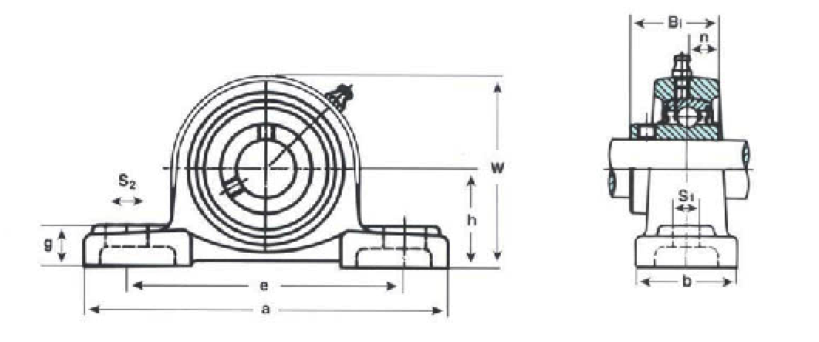

| h | a | e | b | S2 | S1 | g | w | Bi | n | kg | lbs. | |||||
| UCAK201-8 | 1/2 | UC201-8 | ||||||||||||||
| UCAK202-10 | 5/8 | UC202-10 | ||||||||||||||
| UCAK204-12 | 3/4 | UC204-12 | ||||||||||||||
| UCAK201 | 12mm | 1-1/4 | 5-1/4 | 3-7/8 | 1-5/8 | 9/16 | 7/16 | 9/16 | 2-1/2 | 1.2205 | 0.7205 | 3/8 | UC201 | AK204 | 0.85 | 1.87 |
| UCAK202 | 15mm | UC202 | ||||||||||||||
| UCAK203 | 17mm | UC203 | ||||||||||||||
| UCAK204 | 20mm | UC204 | ||||||||||||||
| UCAK205-14 | 7/8 | 1-5/16 | 5-1/2 | 4-1/8 | 1-3/4 | 9/16 | 7/16 | 5/8 | 2-11/16 | 1.3386 | 0.5630 | 3/8 | UC205-14 | AK205 | 1.00 | 2.20 |
| UCAK205-15 | 15/16 | UC205-15 | ||||||||||||||
| UCAK205-16 | 1 | UC205-16 | ||||||||||||||
| UCAK205 | 25mm | UC205 | ||||||||||||||
| UCAK206-17 | 1-1/16 | UC206-17 | ||||||||||||||
| UCAK206-18 | 1-1/8 | UC206-18 | ||||||||||||||
| UCAK206-19 | 1-3/16 | 1-9/16 | 6-5/16 | 4-3/4 | 1-7/8 | 3/4 | 9/16 | 11/16 | 3-5/32 | 1.5000 | 0.6260 | 1/2 | UC206-19 | AK206 | 1.40 | 3.09 |
| UCAK206-20 | 1-1/4 | UC206-20 | ||||||||||||||
| UCAK206 | 30mm | UC206 | ||||||||||||||
| UCAK207-20 | 1-1/4 | UC207-20 | ||||||||||||||
| UCAK207-21 | 1-5/16 | UC207-21 | ||||||||||||||
| UCAK207-22 | 1-3/8 | 1-13/16 | 6-9/16 | 5 | 1-7/8 | 3/4 | 9/16 | 3/4 | 3-5/8 | 1.6890 | 0.6890 | 1/2 | UC207-22 | AK207 | 1.77 | 3.90 |
| UCAK207-23 | 1-7/16 | UC207-23 | ||||||||||||||
| UCAK207 | 35mm | UC207 | ||||||||||||||
| UCAK208-24 | 1-1/2 | UC208-24 | ||||||||||||||
| UCAK208-25 | 1-9/16 | 1-15/16 | 7-1/8 | 5-1/2 | 2-1/8 | 3/4 | 9/16 | 3/4 | 3-15/16 | 1.9370 | 0.7480 | 1/2 | UC208-25 | AK208 | 2.11 | 4.65 |
| UCAK208 | 40mm | UC208 | ||||||||||||||
| UCAK209-26 | 1-5/8 | 2-1/16 | 7-1/2 | 5-3/4 | 2-1/8 | 3/4 | 9/16 | 13/16 | 4-13/16 | 1.9370 | 0.7480 | 1/2 | UC209-26 | AK209 | 2.47 | 5.47 |
| UCAK209-27 | 1-11/16 | UC209-27 | ||||||||||||||
| UCAK209-28 | 1-3/4 | UC209-28 | ||||||||||||||
| UCAK209 | 45mm | UC209 | ||||||||||||||
| UCAK210-30 | 1-7/8 | 2-3/16 | 8 | 6-1/4 | 2-1/4 | 3/4 | 9/16 | 7/8 | 4-7/16 | 2.0315 | 0.7480 | 1/2 | UC210-30 | AK210 | 2.43 | 6.46 |
| UCAK210-31 | 1-15/16 | UC210-31 | ||||||||||||||
| UCAK210-32 | 2 | UC210-32 | ||||||||||||||
| UCAK210 | 50mm | UC210 | ||||||||||||||
| UCAK211-32 | 2 | 2-7/16 | 9-1/8 | 7-1/8 | 2-3/8 | 15/16 | 11/16 | 1 | 4-29/32 | 2.1890 | 0.8740 | 5/8 | UC211-32 | AK211 | 3.97 | 8.75 |
| UCAK211-34 | 2-1/8 | UC211-34 | ||||||||||||||
| UCAK211-35 | 2-3/16 | UC211-35 | ||||||||||||||
| UCAK211 | 55mm | UC211 | ||||||||||||||
| UCAK212-36 | 2-1/4 | 2-11/16 | 9-1/2 | 7-1/2 | 2-1/2 | 15/16 | 11/16 | 1-1/8 | 5-3/8 | 2.5630 | 1.000 | 5/8 | UC212-36 | AK212 | 5.01 | 11.0 |
| UCAK212-38 | 2-3/8 | UC212-38 | ||||||||||||||
| UCAK212-39 | 2-7/16 | UC212-39 | ||||||||||||||
| UCAK212 | 60mm | UC212 | ||||||||||||||
| UCAK215-47 | 2-15/16 | UC215-47 | ||||||||||||||
| UCAK215-48 | 3 | 3-5/16 | 12 | 9-1/2 | 3-1/4 | 1-1/4 | 7/8 | 1-1/2 | 6-17/32 | 3.0630 | 1.3110 | 3/4 | UC215-48 | AK215 | 8.5 | 18.7 |
| UCAK215 | 75mm | UC215 | ||||||||||||||
