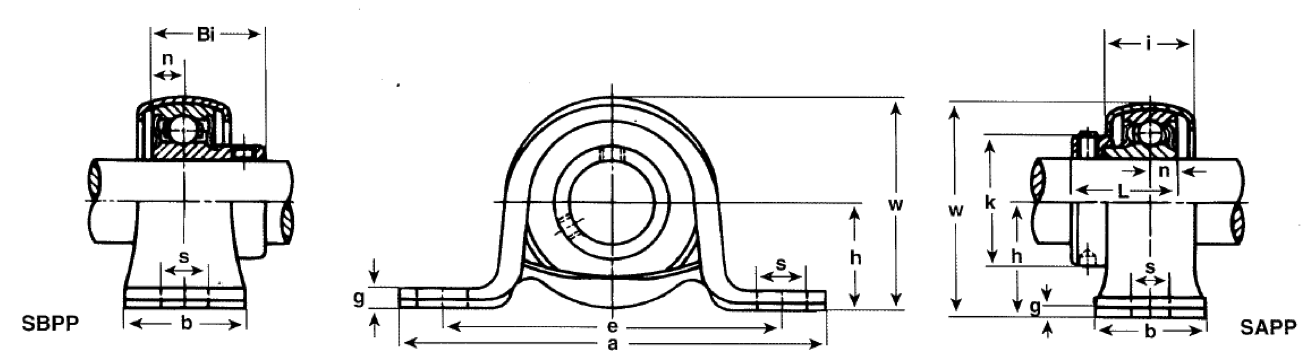

| SBPP200-SERIES SET SCREW TYPE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight | |||||||||||
| h | a | e | b | s | g | w | i | Bi | n | kg | lbs. | ||||||
| SBPP201-8 | 1/2 | 7/8 | 3-5/8 | 2-11/16 | 1 | 1/2*11/32 | 3/32 | 1-3/4 | 3/4 | 0.8661 | 0.236 | 1/4 | SB201-8 | PP202 | 0.16 | 0.35 | |
| SBPP202-10 | 5/8 | SB202-10 | |||||||||||||||
| SBPP204-12 | 3/4 | 1 | 4-1/8 | 3 | 1 | 1/2*11/32 | 3/32 | 53/64 | 53/64 | 0.9843 | 0.275 | 5/16 | SB204-12 | PP204 | 0.23 | 0.51 | |
| SBPP205-14 | 7/8 | 1-1/8 | 4-1/2 | 3-3/8 | 1-1/8 | 9/16*13/32 | 1/8 | 1 | 1 | 1.0630 | 0.295 | 5/16 | SB205-14 | PP205 | 0.30 | 0.66 | |
| SBPP205-15 | 15/16 | SB205-15 | |||||||||||||||
| SBPP205-16 | 1 | SB205-16 | |||||||||||||||
| SBPP206-17 | 1-1/16 | 1-5/16 | 4-7/8 | 3-3/4 | 1-1/8 | 9/16*13/32 | 5/32 | 1-1/32 | 1-1/32 | 1.1811 | 0.315 | 3/8 | SB206-17 | PP206 | 0.45 | 0.99 | |
| SBPP206-18 | 1-1/8 | SB206-18 | |||||||||||||||
| SBPP206-19 | 1-3/16 | SB206-19 | |||||||||||||||
| SBPP206-20 | 1-1/4 | SB206-20 | |||||||||||||||
| SBPP207-20 | 1-1/4 | 1-9/16 | 5-3/4 | 4-3/16 | 1-1/4 | 3/4*17/32 | 3/16 | 1-3/16 | 1-3/16 | 1.2598 | 0.335 | 3/8 | SB207-20 | PP207 | 0.65 | 1.43 | |
| SBPP207-21 | 1-5/16 | SB207-21 | |||||||||||||||
| SBPP207-22 | 1-3/8 | SB207-22 | |||||||||||||||
| SBPP207-23 | 1-7/16 | SB207-23 | |||||||||||||||
| SAPP200-SERIES ECCENTRIC LOCKING COLLAR TYPE | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight | |||||||||||
| a | e | B | t | b | S | L | n | k | kg | lbs. | |||||||
| SAPP201-8 | 1/2 | 3-3/16 | 2-1/2 | 2-5/16 | 0.079 | 5/8 | 9/32 | 1.1260 | 0.256 | 1-1/8 | 5/16 | SA201-8 | PP203 | 0.19 | 0.42 | ||
| SAPP202-10 | 5/8 | SA202-10 | |||||||||||||||
| SAPP204-12 | 3/4 | 3-17/32 | 2-13/16 | 2-5/8 | 0.079 | 43/64 | 23/64 | 1.2205 | 0.295 | 1-1/4 | 5/16 | SA204-12 | PP204 | 0.27 | 0.60 | ||
| SAPP205-14 | 7/8 | 3-3/4 | 3 | 2-25/32 | 0.079 | 51/64 | 23/64 | 1.2205 | 0.295 | 1-1/2 | 5/16 | SA205-14 | PP205 | 0.34 | 0.75 | ||
| SAPP205-15 | 15/16 | SA205-15 | |||||||||||||||
| SAPP205-16 | 1 | SA205-16 | |||||||||||||||
| SAPP206-17 | 1-1/16 | 4-7/16 | 3-9/16 | 3-5/16 | 0.102 | 51/64 | 7/16 | 1.4055 | 0.354 | 1-3/4 | 3/8 | SA206-17 | PP206 | 0.50 | 1.10 | ||
| SAPP206-18 | 1-1/8 | SA206-18 | |||||||||||||||
| SAPP206-19 | 1-3/16 | SA206-19 | |||||||||||||||
| SAPP206-20 | 1-1/4 | SA206-20 | |||||||||||||||
| SAPP207-20 | 1-1/4 | 4-15/16 | 3-15/16 | 3-11/16 | 0.102 | 51/64 | 7/16 | 1.5315 | 0.374 | 2-3/16 | 3/8 | SA207-20 | PP207 | 0.70 | 1.54 | ||
| SAPP207-21 | 1-5/16 | SA207-21 | |||||||||||||||
| SAPP207-22 | 1-3/8 | SA207-22 | |||||||||||||||
| SAPP207-23 | 1-7/16 | SA207-23 | |||||||||||||||
