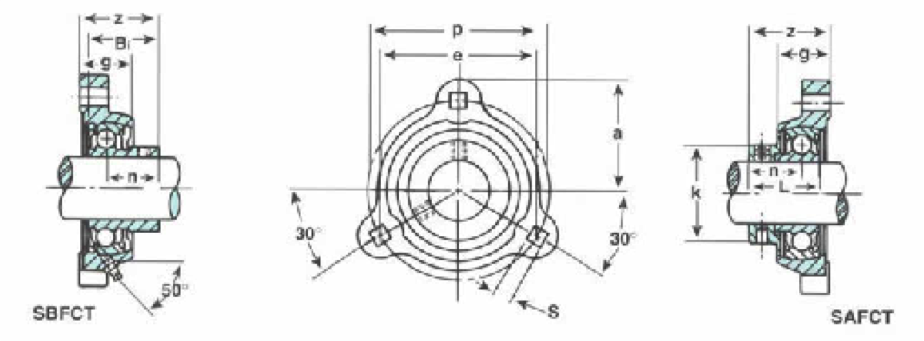

| SBFCT200-SERIES SET SCREW TYPE | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight | |||||||||
| a | p | e | g | z | s | Bi | n | kg | lbs. | ||||||
| SBFCT201-8 | 1/2 | 1-19/32 | 2-1/2 | 2.165 | 11/16 | 1-1/64 | 9/32 | 0.8661 | 0.236 | 1/4 | SB201-8 | FCT203 | 0.21 | 0.46 | |
| SBFCT202-10 | 5/8 | SB202-10 | |||||||||||||
| SBFCT204-12 | 3/4 | 1-25/32 | 2-13/16 | 2.436 | 25/32 | 1-9/64 | 11/32 | 0.9843 | 0.275 | 5/16 | SB204-12 | FCT204 | 0.32 | 0.71 | |
| SBFCT205-14 | 7/8 | 1-7/8 | 3 | 2.598 | 25/32 | 1-11/64 | 11/32 | 1.0630 | 0.295 | 5/16 | SB205-14 | FCT205 | 0.37 | 0.82 | |
| SBFCT205-15 | 15/16 | SB205-15 | |||||||||||||
| SBFCT205-16 | 1 | SB205-16 | |||||||||||||
| SBFCT206-17 | 1-1/16 | 2-7/32 | 3-9/16 | 3.085 | 7/8 | 1-11/32 | 13/32 | 1.1811 | 0.315 | 3/8 | SB206-17 | FCT206 | 0.33 | 0.73 | |
| SBFCT206-18 | 1-1/8 | SB206-18 | |||||||||||||
| SBFCT206-19 | 1-3/16 | SB206-19 | |||||||||||||
| SBFCT206-20 | 1-1/4 | SB206-20 | |||||||||||||
| SBFCT207-20 | 1-1/4 | 2-13/32 | 3-15/16 | 3.410 | 15/16 | 1-7/16 | 13/32 | 1.2598 | 0.335 | 3/8 | SB207-20 | FCT207 | 0.71 | 1.57 | |
| SBFCT207-21 | 1-5/16 | SB207-21 | |||||||||||||
| SBFCT207-22 | 1-3/8 | SB207-22 | |||||||||||||
| SBFCT207-23 | 1-7/16 | SB207-23 | |||||||||||||
| SAFCT200-SERIES ECCENTRIC LOCKING COLLAR TYPE | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight | |||||||||
| a | p | e | g | z | S | L | n | k | kg | lbs. | |||||
| SAFCT201-8 | 1/2 | 1-19/31 | 2-1/2 | 2.165 | 11/16 | 1-1/4 | 9/32 | 1.125 | 0.256 | 1-1/8 | 1/4 | SA201-8 | FCT203 | 0.26 | 0.57 |
| SAFCT202-10 | 5/8 | SA202-10 | |||||||||||||
| SAFCT204-12 | 3/4 | 1-25/32 | 2-13/16 | 2.436 | 25/32 | 1-11/32 | 11/32 | 1.218 | 0.295 | 1-1/4 | 5/16 | SA204-12 | FCT204 | 0.34 | 0.75 |
| SAFCT205-14 | 7/8 | 1-7/8 | 3 | 2.598 | 25/32 | 1-11/2 | 11/32 | 1.218 | 0.295 | 1-1/2 | 5/16 | SA205-14 | FCT205 | 0.39 | 0.86 |
| SAFCT205-15 | 15/16 | SA205-15 | |||||||||||||
| SAFCT205-16 | 1 | SA205-16 | |||||||||||||
| SAFCT206-17 | 1-1/16 | 2-7/32 | 3-9/16 | 3.085 | 7/8 | 1-17/32 | 13/32 | 1.406 | 0.354 | 1-3/4 | 3/8 | SA206-17 | FCT206 | 0.61 | 1.35 |
| SAFCT206-18 | 1-1/8 | SA206-18 | |||||||||||||
| SAFCT206-19 | 1-3/16 | SA206-19 | |||||||||||||
| SAFCT206-20 | 1-1/4 | SA206-20 | |||||||||||||
| SAFCT207-20 | 1-1/4 | 2-13/32 | 3-15/16 | 3.410 | 15/16 | 1-21/32 | 13/32 | 1.531 | 0.374 | 2-3/16 | 3/8 | SA207-20 | FCT207 | 0.82 | 1.81 |
| SAFCT207-21 | 1-5/16 | SA207-21 | |||||||||||||
| SAFCT207-22 | 1-3/8 | SA207-22 | |||||||||||||
| SAFCT207-23 | 1-7/16 | SA207-23 | |||||||||||||
