| for Both Belt Sections"A"(4L) and "O"(3L) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

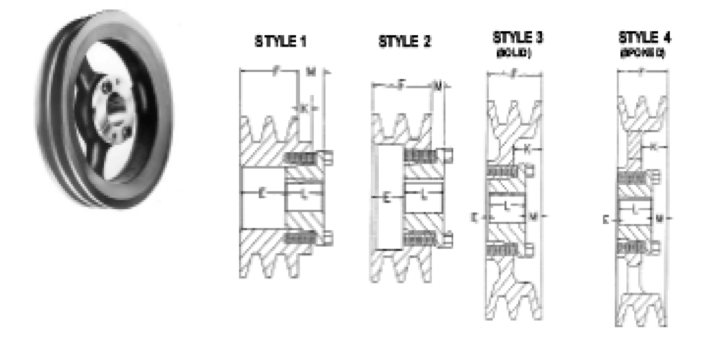

| O.D INCHES | D.D "A"BELT INCHES | D.D "O"BELT INCHES | PART NUMBER | Alternate Part Number | Style | Weight(Lbs) | DIMENSION- INCHES | ||||
| E | F | K | L | M | |||||||
| 3.05 | 2.8 | 2.5 | DH2300 | 2AK30H | 1 | 1.9 | 1 | 1-3/8 | 7/16 | 1-1/4 | 7/8 |
| 3.25 | 3.0 | 2.7 | DH2325 | 2AK32H | 1 | 2.3 | 1 | 1-3/8 | 7/16 | 1-1/4 | 7/8 |
| 3.45 | 3.2 | 2.9 | DH2350 | 2AK34H | 2 | 1.8 | 9/16 | 1-3/8 | 0 | 1-1/4 | 7/16 |
| 3.75 | 3.5 | 3.2 | DH2380 | 2AK39H | 2 | 2.3 | 9/16 | 1-3/8 | 0 | 1-1/4 | 7/16 |
| 3.95 | 3.7 | 3.4 | DH2400 | 2AK41H | 3 | 2 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 4.25 | 4.0 | 3.7 | DH2425 | 2AK44H | 3 | 2.9 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 4.45 | 4.2 | 3.9 | DH2450 | 2AK46H | 3 | 3.2 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 4.75 | 4.5 | 4.2 | DH2480 | 2AK49H | 3 | 3.5 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 4.95 | 4.7 | 4.4 | DH2500 | 2AK51H | 3 | 3.1 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 5.25 | 5.0 | 4.7 | DH2525 | 2AK54H | 3 | 4.6 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 5.45 | 5.2 | 4.9 | DH2550 | 2AK56H | 3 | 4 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 5.75 | 5.5 | 5.2 | DH2580 | 2AK59H | 3 | 4.9 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 5.95 | 5.7 | 5.4 | DH2600 | 2AK61H | 4 | 3.7 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 6.25 | 6.0 | 5.7 | - | 2AK64H | 4 | 3.9 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 6.45 | 6.2 | 5.9 | DH2650 | - | 4 | 4.9 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 6.95 | 6.7 | 6.4 | DH2700 | - | 4 | 5.4 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 7.25 | 7.0 | 6.7 | DH2730 | 2AK74H | 4 | 4.4 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 7.95 | 7.7 | 7.4 | DH2800 | - | 4 | 5.9 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 8.95 | 8.7 | 8.4 | DH2900 | - | 4 | 7.2 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 9.25 | 9.0 | 8.7 | DH2930 | 2AK94H | 4 | 7.2 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 9.95 | 9.7 | 9.4 | DH3100 | - | 4 | 8.6 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 10.25 | 10.0 | 9.7 | DH3103 | 2AK104H | 4 | 9.7 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 10.95 | 10.7 | 10.4 | DH3110 | - | 4 | 10.2 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 11.95 | 11.7 | 11.4 | DH3120 | - | 4 | 10.7 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 12.25 | 12.0 | 11.7 | DH3123 | 2AK124H | 4 | 10.9 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 14.25 | 14.0 | 13.7 | DH3143 | 2AK144H | 4 | 14.4 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 15.25 | 15.0 | 14.7 | DH3153 | 2AK154H | 4 | 13.6 | 1/16 | 1-3/8 | 1/2 | 1-1/4 | 1/16 |
| 18.25 | 18.0 | 17.7 | DH3183 | 2AK184H | 4 | 20.1 | 1/4 | 1-3/8 | 5/16 | 1-1/4 | 1/8 |
| for Both Belt Sections"B"(5L) and "A"(4L) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| O.D INCHES | D.D "A"BELT INCHES | D.D "O"BELT INCHES | PART NUMBER | Alternate Part Number | Style | Weight(Lbs) | DIMENSION- INCHES | ||||
| E | F | K | L | M | |||||||
| 3.35 | 3 | 2.6 | DH4340 | 2BK32H | 1 | 2.5 | 1-3/8 | 1-3/4 | 7/16 | 1-1/4 | 7/8 |
| 3.55 | 3.2 | 2.8 | DH4360 | 2BK34H | 1 | 2.9 | 1-3/8 | 1-3/4 | 7/16 | 1-1/4 | 7/8 |
| 3.75 | 3.4 | 3 | DH4380 | 2BK36H | 2 | 2.6 | 15/16 | 1-3/4 | 0 | 1-1/4 | 7/16 |
| 3.95 | 3.6 | 3.2 | DH4400 | 2BK40H | 2 | 2.9 | 15/16 | 1-3/4 | 0 | 1-1/4 | 7/16 |
| 4.15 | 3.8 | 3.4 | DH4420 | - | 2 | 3.5 | 15/16 | 1-3/4 | 0 | 1-1/4 | 7/16 |
| 4.35 | 4 | 3.6 | DH4440 | - | 3 | 3.1 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 4.45 | 4.1 | 3.7 | - | 2BK47H | 3 | 2.8 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 4.55 | 4.2 | 3.8 | DH4460 | - | 3 | 3.8 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 4.75 | 4.4 | 4 | DH4480 | 2BK50H | 3 | 3.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 4.95 | 4.6 | 4.2 | DH4500 | 2BK52H | 3 | 4.7 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 5.15 | 4.8 | 4.4 | DH4520 | - | 3 | 4.8 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 5.35 | 5 | 4.6 | DH4540 | - | 3 | 4.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 5.45 | 5.1 | 4.7 | - | 2BK57H | 3 | 4.3 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 5.55 | 5.2 | 4.8 | DH4560 | - | 4 | 4 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 5.75 | 5.4 | 5 | DH4580 | 2BK60H | 4 | 4.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 5.95 | 5.6 | 5.2 | DH4600 | 2BK62H | 4 | 4.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 6.15 | 5.8 | 5.4 | DH4620 | - | 4 | 5.1 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 6.35 | 6 | 5.6 | DH4640 | - | 4 | 5.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 6.45 | 6.1 | 5.7 | - | 2BK67H | 4 | 5 | 5/16 | 1-3/4 | 5/8 | 1-1/4 | 7/16 |
| 6.55 | 6.2 | 5.8 | DH4660 | - | 4 | 5.2 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 6.75 | 6.4 | 6 | DH4680 | 2BK70H | 4 | 6.1 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 6.95 | 6.6 | 6.2 | DH4700 | - | 4 | 5.6 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 7.15 | 6.8 | 6.4 | DH4720 | - | 4 | 6.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 7.75 | 7.4 | 7 | DH4780 | 2BK80H | 4 | 6.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 8.75 | 8.4 | 8 | DH4880 | 2BK90H | 4 | 8.8 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 8.95 | 8.6 | 8.2 | DH4900 | - | 4 | 7.4 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 9.75 | 9.4 | 9 | DH4980 | 2BK100H | 4 | 9.7 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 10.75 | 10.4 | 10 | DH5108 | 2BK110H | 4 | 11.9 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 11.35 | 11 | 10.6 | DH5114 | - | 4 | 12 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 11.75 | 11.4 | 11 | DH5118 | 2BK120H | 4 | 12.2 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 12.75 | 12.4 | 12 | DH5128 | 2BK130H | 4 | 13.2 | 1/16 | 1-3/4 | 7/8 | 1-1/4 | 7/16 |
| 13.95 | 13.6 | 13.2 | DH5140 | - | 4 | 14.1 | 1/4 | 1-3/4 | 11/16 | 1-1/4 | 1/4 |
| 15.75 | 15.4 | 15 | DH5158 | 2BK160H | 4 | 19.2 | 1/4 | 1-3/4 | 11/16 | 1-1/4 | 1/4 |
| 18.75 | 18.4 | 18 | DH5188 | 2BK190H | 4 | 21 | 1/4 | 1-3/4 | 11/16 | 1-1/4 | 1/4 |
