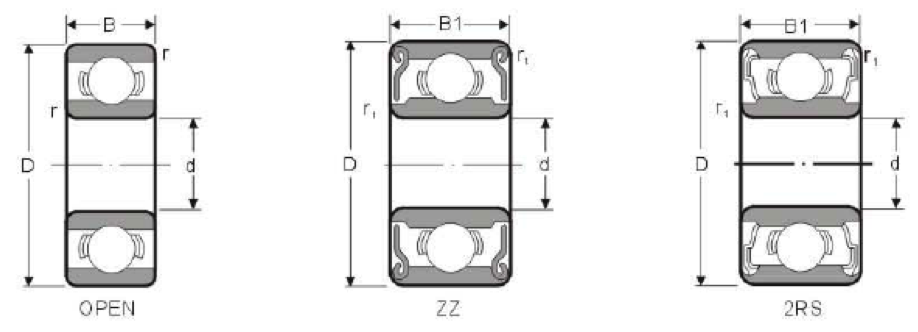

| Bearing No. | Bore d mm | Outer Diameter D mm | Width | Radius r r1 mm | Ball Complement | Basic Load Rating lbs | Weight lbs | Ref.No. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Open B mm | Shielded B1 mm | No. | Size inch | Dynamic Cr | Static Cor | NMB | RMB | |||||
| MR85 | 5 | 8 | 2 | 2.5 | 0.1 | 13 | 1/32 | 62 | 31 | L850 | ||
| MR95 | 5 | 9 | 2.5 | 3 | 0.15 | 10 | 3/64 | 112 | 46 | 0.001 | L950 | |
| MR105 | 5 | 10 | 3 | 4 | 0.15 | 8 | 1/16 | 115 | 55 | 0.002 | L1050 | |
| MR115 | 5 | 11 | 3 | 4 | 0.15 | 8 | 1/16 | 123 | 57 | 0.002 | ||
| 685 | 5 | 11 | 3 | 5 | 0.15 | 9 | 1/16 | 123 | 57 | 0.003 | L1150 | UL511 |
| 695 | 5 | 13 | 4 | 4 | 0.2 | 8 | 2.0mm | 187 | 90 | 0.005 | R1350 | |
| 605 | 5 | 14 | 5 | 5 | 0.2 | 7 | 3/32 | 229 | 110 | 0.007 | R1450 | |
| 625 | 5 | 16 | 5 | 5 | 0.3 | 8 | 3/32 | 300 | 140 | 0.01 | R1650 | R5160 |
| 635 | 5 | 19 | 6 | 6 | 0.3 | 6 | 5/32 | 400 | 190 | 0.017 | R1950 | |
| MR106 | 6 | 10 | 2.5 | 3 | 0.15 | 9 | 3/64 | 123 | 57 | 0.001 | L1060 | |
| MR126 | 6 | 12 | 3 | 4 | 0.2 | 10 | 1/16 | 187 | 82 | 0.002 | L1260 | |
| 686 | 6 | 13 | 3.5 | 5 | 0.15 | 8 | 2.0mm | 187 | 90 | 0.004 | L1360 | UL613 |
| 696 | 6 | 15 | 5 | 5 | 0.2 | 8 | 3/32 | 300 | 140 | 0.009 | R1560 | |
| 606 | 6 | 17 | 6 | 6 | 0.3 | 8 | 3/32 | 300 | 140 | 0.013 | R1760 | |
| 626 | 6 | 19 | 6 | 6 | 0.3 | 6 | 5/32 | 400 | 190 | 0.017 | R1960 | R6190 |
| 636 | 6 | 22 | 7 | 7 | 0.3 | 7 | 5/32 | 670 | 280 | 0.03 | ||
| MR117 | 7 | 11 | 2.5 | 3 | 0.15 | 9 | 3/64 | 101 | 46 | 0.001 | L1170 | |
| MR137 | 7 | 13 | 3 | 4 | 0.2 | 11 | 1/16 | 198 | 88 | 0.003 | L1370 | |
| 687 | 7 | 15 | 3.5 | 5 | 0.15 | 9 | 2.0mm | 202 | 103 | 0.004 | L1470 | UL714 |
| 697 | 7 | 17 | 5 | 5 | 0.3 | 7 | 3.0mm | 235 | 120 | 0.012 | ||
| 3607 | 7 | 19 | 6 | 6 | 0.3 | 6 | 5/32 | 385 | 180 | 0.018 | R1970 | R7190 |
| 627 | 7 | 22 | 7 | 7 | 0.3 | 7 | 5/32 | 580 | 290 | 0.024 | R2270 | R7220 |
| 637 | 7 | 26 | 9 | 9 | 0.3 | 820 | 330 | 0.053 | ||||
| MR128 | 8 | 12 | 2.5 | 3.5 | 0.15 | 11 | 3/64 | 115 | 57 | 0.001 | L1280 | |
| MR148 | 8 | 14 | 3.5 | 4 | 0.2 | 11 | 1/16 | 198 | 88 | 0.003 | L1480 | |
| 688 | 8 | 16 | 4 | 5 | 0.2 | 9 | 3/32 | 310 | 160 | 0.007 | L1680 | UL816 |
| 698 | 8 | 19 | 6 | 6 | 0.3 | 7 | 3.5mm | 285 | 145 | 0.014 | R1980 | |
| X117 | 8 | 22 | 6 | 6 | 0.3 | 7 | 5/32 | 580 | 290 | 0.02 | ||
| 608 | 8 | 22 | 7 | 7 | 0.3 | 7 | 5/32 | 580 | 290 | 0.024 | R2280 | R8220 |
| 628 | 8 | 24 | 8 | 8 | 0.3 | 7 | 5/32 | 690 | 350 | 0.026 | ||
| 638 | 8 | 28 | 9 | 9 | 0.3 | 1012 | 440 | 0.056 | ||||
| 689 | 9 | 17 | 4 | 4 | 0.2 | 9 | 3/32 | 310 | 143 | 0.013 | L1790 | UL917 |
| 699 | 9 | 20 | 6 | 6 | 0.3 | 9 | 3/32 | 528 | 231 | 0.017 | L2090 | |
| 609 | 9 | 24 | 7 | 7 | 0.3 | 7 | 5/32 | 580 | 280 | 0.026 | ||
| 629 | 9 | 26 | 8 | 8 | 0.3 | 7 | 3/16 | 790 | 400 | 0.04 | ||
| 639 | 9 | 30 | 10 | 10 | 0.6 | 1045 | 462 | 0.07 |
