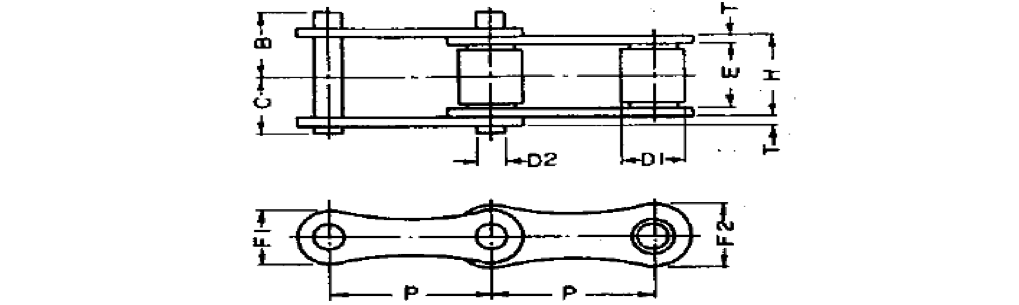

| Drive Series | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| A550 | 1.630"x0.780" | 41.40x19.81 | 25.91 | 20.9 | 17.3 | 16.60 | 19.80 | 16.80 | 7.14 | 2.68 | 1.75 | 5200 |

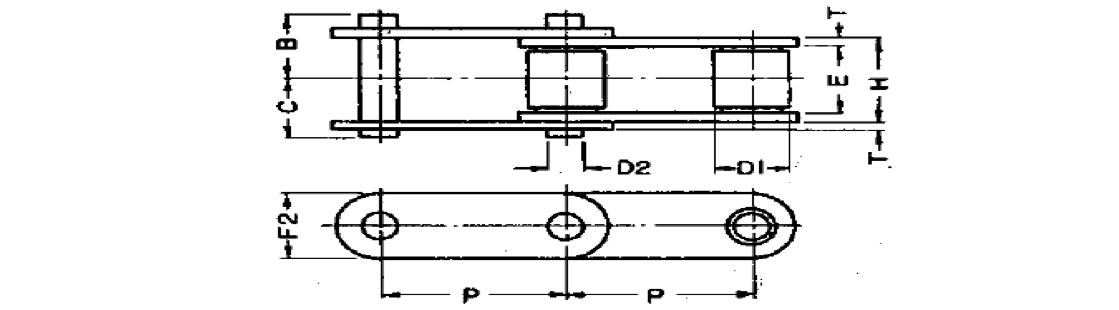

| Conveyor Series | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F2 | D1 | D2 | T | Weight kg/m | Ave. Ulti. Strength kg | ||
| inch | mm | |||||||||||
| CA550 | 1.630"x0.780" | 41.40x19.81 | 25.91 | 20.9 | 17.3 | 19.52 | 16.80 | 7.14 | 2.68 | 1.84 | 5500 | |
| CA555 | 1.630"x1/2" | 41.40x12.70 | 19.10 | 18.1 | 14.6 | 19.52 | 16.80 | 7.14 | 3.14 | 1.77 | 5700 | |
| CA557 | 1.630"x3/4" | 41.40x19.05 | 26.05 | 21.6 | 17.9 | 22.30 | 17.75 | 7.99 | 3.14 | 2.37 | 6200 | |

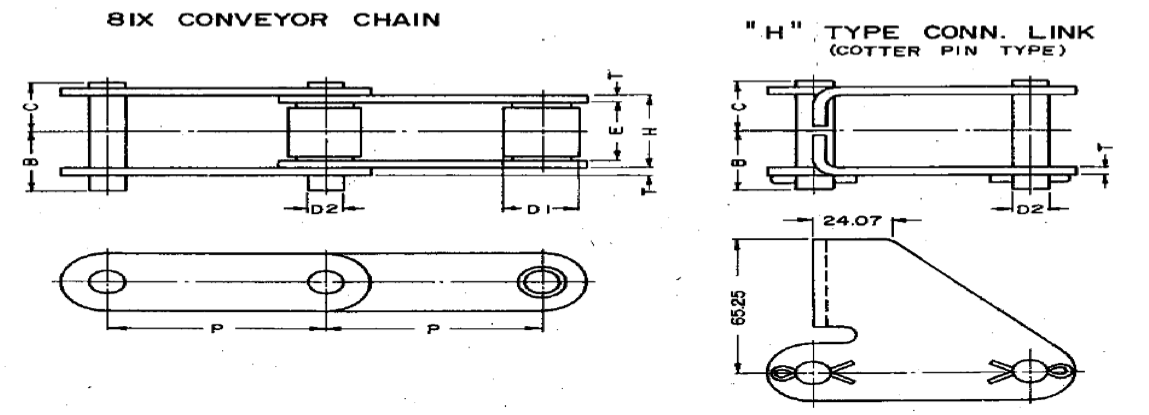

| ANSI Chain No. | PxE | H | B | C | F2 | D1 | D2 | T | Weight kg/m | Ave. Ulti. Strength kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | ||||||||||
| 81X | 2.609"x1-1/16" | 66.27x27.00 | 35.25 | 28.6 | 23.8 | 28.70 | 23.00 | 11.10 | 3.96 | 3.69 | 13100 |
