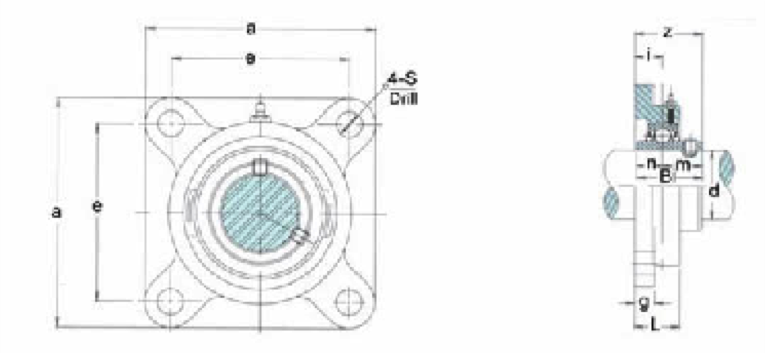

| SUCSF-SERIES 4-Bolt Flange Units | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight lbs. | ||||||||||
| a | e | i | g | L | S | z | Bi | n | m | |||||||
| SUCSF204-12 | 3/4 | 3-3/8 | 2-1/2 | 19/32 | 7/16 | 63/64 | 7/16 | 1-5/16 | 1.2205 | 0.5000 | 0.7205 | 3/8 | SUC204-12 | SF204 | 1.3 | |
| SUCSF205-16 | 1 | 3-3/4 | 2-3/4 | 5/8 | 1/2 | 1-3/64 | 29/64 | 1-13/32 | 1.3386 | 0.5630 | 0.7756 | 3/8 | SUC205-16 | SF205 | 1.8 | |
| SUCSF206-19 | 1-3/16 | 4-1/4 | 3-1/4 | 45/64 | 1/2 | 1-3/16 | 33/64 | 1-19/32 | 1.5000 | 0.6260 | 0.8740 | 7/16 | SUC206-19 | SF206 | 2.2 | |
| SUCSF206-20 | 1-1/4 | SUC206/20 | ||||||||||||||
| SUCSF207-20 | 1-1/4 | 4-5/8 | 3-5/8 | 3/4 | 9/16 | 1-5/16 | 33/64 | 1-3/4 | 1.6890 | 0.6890 | 1.0000 | 7/16 | SUC207-20 | SF207 | 3.1 | |
| SUCSF207-22 | 1-3/8 | SUC207-22 | ||||||||||||||
| SUCSF207-23 | 1-7/16 | SUC207-23 | ||||||||||||||
| SUCSF208-24 | 1-1/2 | 5-1/8 | 4 | 53/64 | 9/16 | 1-27/64 | 35/64 | 2-1/64 | 1.9370 | 0.7480 | 1.1890 | 1/2 | SUC208-24 | SF208 | 3.9 | |
| SUCSF209-28 | 1-3/4 | 5-13/32 | 4-1/8 | 55/64 | 9/16 | 1-1/2 | 5/8 | 2-1/16 | 1.9370 | 0.7480 | 1.1890 | 9/16 | SUC209-28 | SF209 | 4.8 | |
| SUCSF210-31 | 1-15/16 | 5-5/8 | 4-3/8 | 55/64 | 19/32 | 1-17/32 | 5/8 | 2-5/32 | 2.0315 | 0.7480 | 1.2835 | 9/16 | SUC210-31 | SF210 | 5.2 | |
| SUCSF210-32 | 2 | SUC210-32 | ||||||||||||||

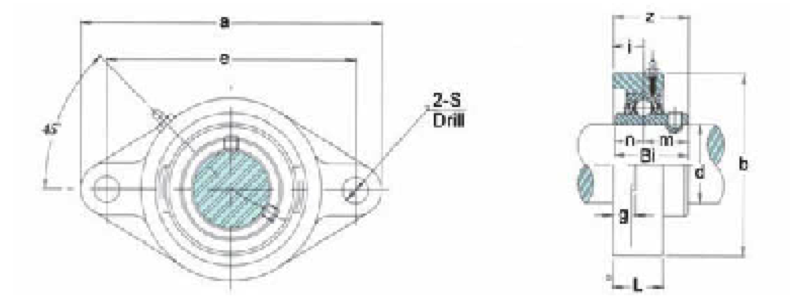

| SUCSFL-SERIES 2-Bolt Flange Units | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing No. | Housing No. | Weight lbs. | ||||||||||
| a | e | i | g | L | S | b | z | Bi | n | m | ||||||
| SUCSFL204-12 | 3/4 | 4-13/32 | 3-17/32 | 19/32 | 7/16 | 63/64 | 25/64 | 2-3/8 | 1-5/162 | 1.2205 | 0.5000 | 0.7205 | 5/16 | SUC204-12 | SFL204 | 1.0 |
| SUCSFL205-16 | 1 | 4-7/8 | 3-57/64 | 5/8 | 33/64 | 1-3/64 | 15/32 | 2-11/16 | 1-13/32 | 1.3386 | 0.5630 | 0.7756 | 3/8 | SUC205-16 | SFL205 | 1.4 |
| SUCSFL206-19 | 1-3/16 | 5-9/16 | 4-19/32 | 45/64 | 33/64 | 1-3/16 | 15/32 | 3-5/32 | 1-19/32 | 1.5000 | 0.6260 | 0.8740 | 3/8 | SUC206-19 | SFL206 | 2.0 |
| SUCSFL206-20 | 1-1/4 | SUC206/20 | ||||||||||||||
| SUCSFL207-20 | 1-1/4 | 6-1/8 | 5-1/8 | 3/4 | 9/16 | 1-5/16 | 33/64 | 3-35/64 | 1-3/4 | 1.6890 | 0.6890 | 1.0000 | 7/16 | SUC207-20 | SFL207 | 2.7 |
| SUCSFL207-22 | 1-3/8 | SUC207-22 | ||||||||||||||
| SUCSFL207-23 | 1-7/16 | SUC207-23 | ||||||||||||||
| SUCSFL208-24 | 1-1/2 | 6-3/4 | 5-21/32 | 53/64 | 9/16 | 1-27/64 | 33/64 | 3-15/16 | 2-1/64 | 1.9370 | 0.7480 | 1.1890 | 7/16 | SUC208-24 | SFL208 | 3.4 |
| SUCSFL209-28 | 1-3/4 | 7-1/16 | 5-27/32 | 55/64 | 9/16 | 1-1/2 | 19/32 | 4-1/4 | 2-1/16 | 1.9370 | 0.7480 | 1.1890 | 1/2 | SUC209-28 | SFL209 | 4.2 |
| SUCSFL210-31 | 1-15/16 | 7-7/16 | 6-3/16 | 55/64 | 19/32 | 1-17/32 | 19/32 | 4-17/32 | 2-5/32 | 2.0315 | 0.7480 | 1.2835 | 1/2 | SUC210-31 | SFL210 | 4.8 |
| SUCSFL210-32 | 2 | SUC210-32 | ||||||||||||||
