ATTACHMENTS FOR CA550 ROLLER CHAIN

Dimensions-mm

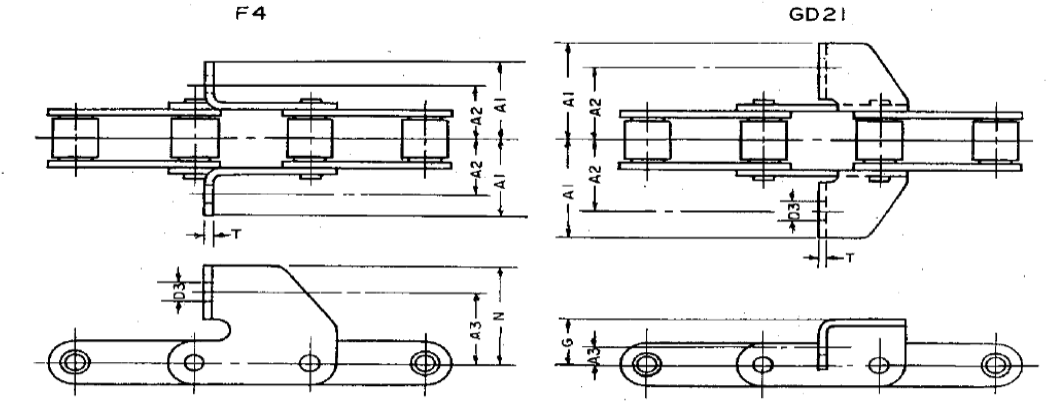

Attachment Chain No. A1 A2 D3 N A3 G T
F4 CA550 34.15 23.80 8.33 42.90 30.90   2.68
GD21 CA550 43.03 31.75 8.33   8.33 20.24 2.68

Dimensions-mm

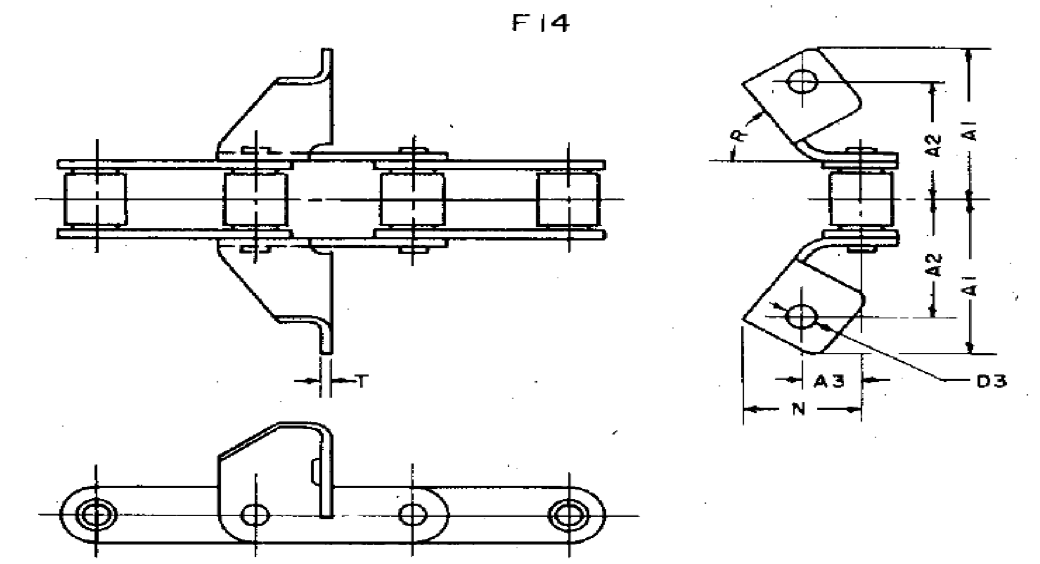

Attachment Chain No. A1 A2 D3 N A3 R T
F14 CA550 52.39 39.69 8.33 31.75 15.88 57ยก 2.68
