| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size in. | Bearing No. | Housing No. | Weight | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

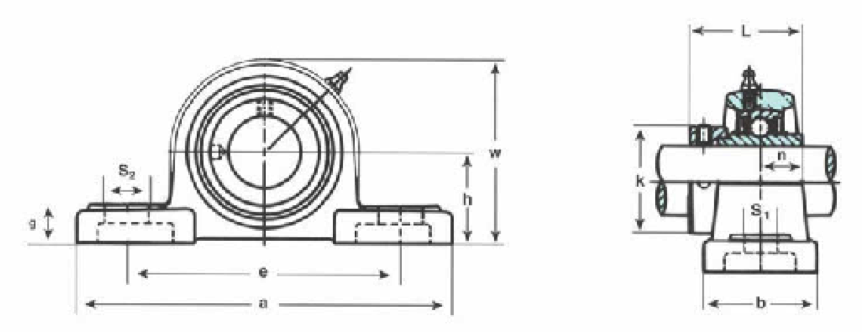

| h | a | e | b | S2 | S1 | g | w | L | n | k | kg | lbs. | |||||
| HCAK204-12 | 3/4 | 1-1/4 | 5-1/4 | 3-7/8 | 1-5/8 | 9/16 | 7/16 | 9/16 | 2-1/2 | 1.720 | 0.673 | 1-1/4 | 3/8 | HC204-12 | AK204 | 0.89 | 1.96 |
| HCAK204 | 20mm | HC204 | |||||||||||||||
| HCAK205-14 | 7/18 | 1-5/16 | 5-1/2 | 4-1/8 | 1-3/4 | 9/16 | 7/16 | 5/8 | 2-11/16 | 1.748 | 0.688 | 1-1/2 | 3/8 | HC205-14 | AK205 | 1.02 | 2.25 |
| HCAK205-15 | 15/16 | HC205-15 | |||||||||||||||
| HCAK205-16 | 1 | HC205-16 | |||||||||||||||
| HCAK205 | 25mm | HC205 | |||||||||||||||
| HCAK206-17 | 1-1/16 | HC206-17 | |||||||||||||||
| HCAK206-18 | 1-1/8 | HC206-18 | |||||||||||||||
| HCAK206-19 | 1-3/16 | 1-9/16 | 6-5/16 | 4-3/4 | 1-7/8 | 3/4 | 9/16 | 11/16 | 3-5/32 | 1.905 | 0.720 | 1-3/4 | 1/2 | HC206-19 | AK206 | 1.45 | 3.20 |
| HCAK206-20 | 1-1/4 | HC206-20 | |||||||||||||||
| HCAK206 | 30mm | HC206 | |||||||||||||||
| HCAK207-20 | 1-1/4 | HC207-20 | |||||||||||||||
| HCAK207-21 | 1-5/16 | HC207-21 | |||||||||||||||
| HCAK207-22 | 1-3/8 | 1-13/16 | 6-9/16 | 5 | 1-7/8 | 3/4 | 9/16 | 3/4 | 3-5/8 | 2.016 | 0.742 | 2-3/16 | 1/2 | HC207-22 | AK207 | 1.85 | 4.08 |
| HCAK207-23 | 1-7/16 | HC207-23 | |||||||||||||||
| HCAK207 | 35mm | HC207 | |||||||||||||||
| HCAK208-24 | 1-1/2 | HC208-24 | |||||||||||||||
| HCAK208-25 | 1-6/16 | 1-15/16 | 7-1/8 | 5-1/2 | 2-1/8 | 3/4 | 9/16 | 3/4 | 3-15/16 | 2.220 | 0.844 | 2-3/8 | 1/2 | HC208-25 | AK208 | 2.24 | 4.94 |
| HCAK208 | 40mm | HC208 | |||||||||||||||
| HCAK209-26 | 1-5/8 | 2-1/16 | 7-1/2 | 5-3/4 | 2-1/8 | 3/4 | 9/16 | 13/16 | 4-13/16 | 2.220 | 0.844 | 2-1/2 | 1/2 | HC209-26 | AK209 | 2.60 | 5.73 |
| HCAK209-27 | 1-11/16 | HC209-27 | |||||||||||||||
| HCAK209-28 | 1-3/4 | HC209-28 | |||||||||||||||
| HCAK209 | 45mm | HC209 | |||||||||||||||
| HCAK210-30 | 1-7/8 | HC210-30 | |||||||||||||||
| HCAK210-31 | 1-15/16 | 2-3/16 | 8 | 6-1/4 | 2-1/4 | 3/4 | 9/16 | 7/8 | 4-7/16 | 2.468 | 0.989 | 2-3/4 | 1/2 | HC210-31 | AK210 | 3.13 | 6.90 |
| HCAK210 | 50mm | HC210 | |||||||||||||||
| HCAK211-32 | 2 | 2-7/16 | 9-1/8 | 7-1/8 | 2-3/8 | 15/16 | 11/16 | 1 | 4-29/32 | 2.814 | 1.049 | 3 | 5/8 | HC211-32 | AK211 | 4.26 | 9.39 |
| HCAK211-34 | 2-1/8 | HC211-34 | |||||||||||||||
| HCAK211-35 | 2-3/16 | HC211-35 | |||||||||||||||
| HCAK211 | 55mm | HC211 | |||||||||||||||
| HCAK212-36 | 2-1/4 | 2-11/16 | 9-1/2 | 7-1/2 | 2-1/2 | 15/16 | 11/16 | 1-1/8 | 5-3/8 | 3.062 | 1.219 | 3-5/16 | 5/8 | HC212-36 | AK212 | 6.35 | 11.8 |
| HCAK212-38 | 2-3/8 | HC212-38 | |||||||||||||||
| HCAK212-39 | 2-7/16 | HC212-39 | |||||||||||||||
| HCAK212 | 60mm | HC212 | |||||||||||||||
| HCAK215-47 | 2-15/16 | 3-5/16 | 12 | 9-1/2 | 3-1/4 | 1-1/4 | 7/8 | 1-1/2 | 6-17/32 | 3.374 | 1.469 | 4-1/32 | 3/4 | HC215-47 | AK215 | 9.02 | 19.9 |
| HCAK215-48 | 3 | HC215-48 | |||||||||||||||
